2025 Kawasaki Z900RS Se Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki Z900RS Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

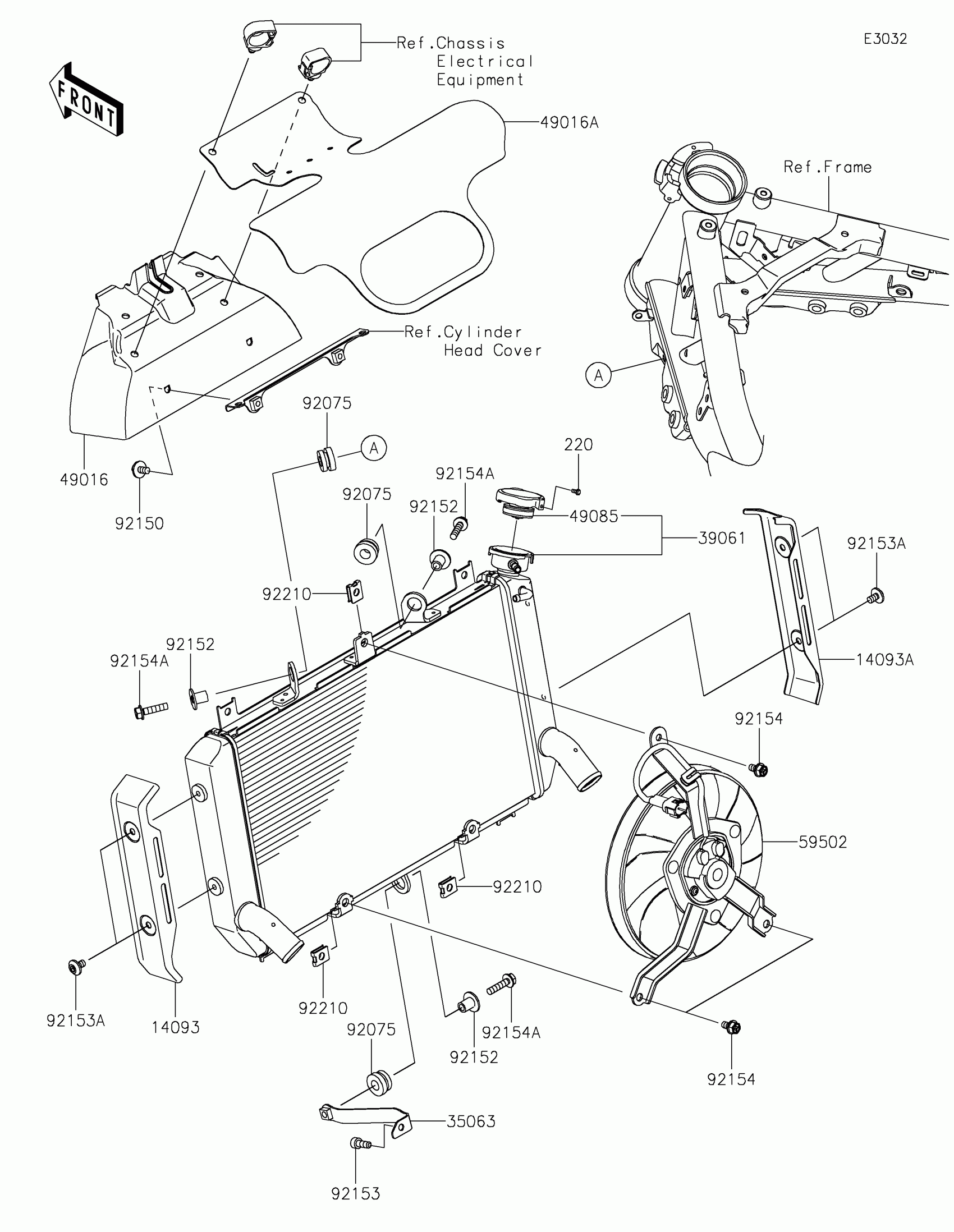

2025 Kawasaki Z900RS Se Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,RADIATOR,LH,BLACK

14093-1000-499

1

$61.91

In stock

14093A

COVER,RADIATOR,RH,BLACK

14093-1001-499

1

$61.91

In stock

35063

STAY

35063-1512

1

$4.42

In stock

39061

RADIATOR-ASSY

39061-0809

1

$847.01

In stock

49016

COVER-SEAL,HEAT

49016-0647

1
Out of stock

49016A

COVER-SEAL,HEAT

49016-0648

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0016

1

$51.50

In stock

59502

FAN-ASSY

59502-0614

1

$810.90

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92150

BOLT,6X12

92150-1891

1

$3.53

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92153

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92153A

BOLT,SOCKET,6X10

92153-1628

1

$1.53

In stock

92154

BOLT

92154-1429

1

$3.75

In stock

92154A

BOLT,FLANGED,6X22

92154-2673

1

$2.46

In stock

92210

NUT

92210-1323

1
Out of stock

220

SCREW-PAN-CROS,3X6

220AB0306

1

$2.29

In stock
