2025 Kawasaki Z900RS Se Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2025 Kawasaki Z900RS Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

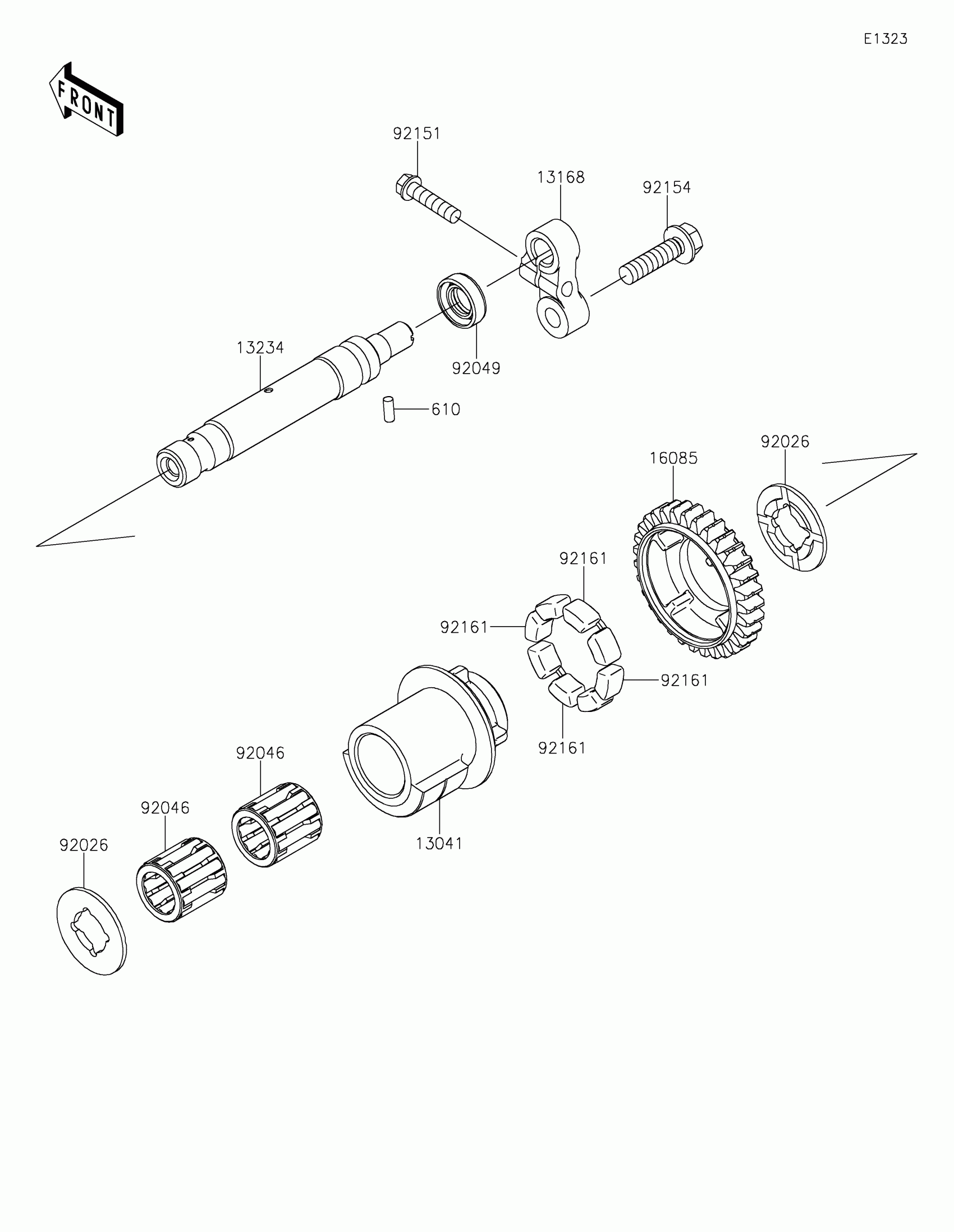

2025 Kawasaki Z900RS Se Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER

13041-0559

1

$171.36

In stock

13168

LEVER

13168-0115

1

$50.34

In stock

13234

SHAFT-COMP

13234-0038

1

$137.40

In stock

16085

GEAR,BALANCER,31T

16085-0134

1

$163.93

In stock

92026

SPACER

92026-0082

1
Out of stock

92046

BEARING-NEEDLE

92046-1266

1
Out of stock

92049

SEAL-OIL,TC 12X22X7

92049-2204

1
Out of stock

92151

1

$2.06

In stock

92154

BOLT,FLANGED,8X30

92154-1796

1

$3.94

In stock

92161

DAMPER

92161-1055

1

$9.22

In stock

610

ROLLER,4X10

610A0410

1

$3.43

In stock
