2025 Kawasaki Z900RS SE Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki Z900RS SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

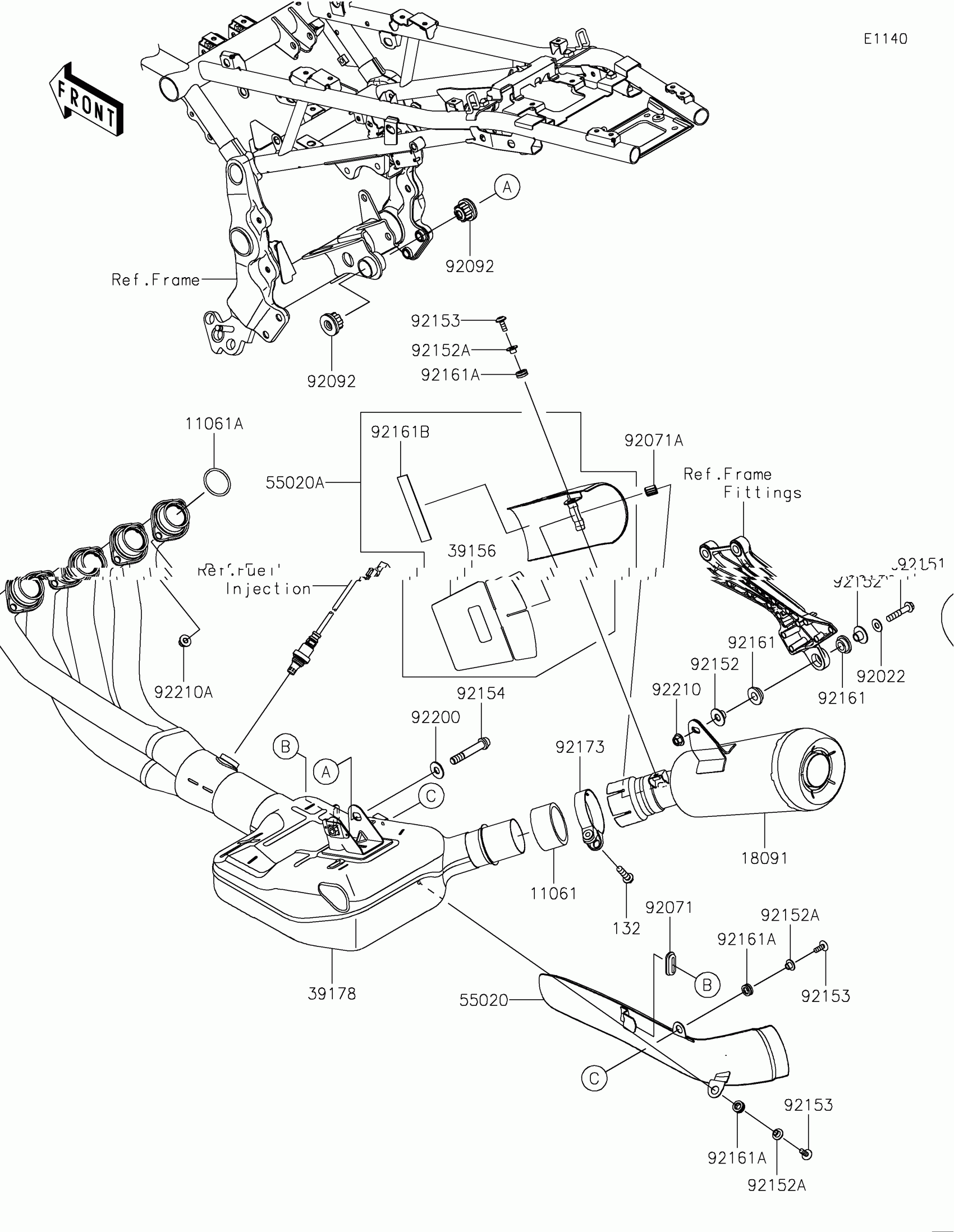

2025 Kawasaki Z900RS SE Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,50.8X62X30

11061-0447

1
Out of stock

11061A

GASKET,EXHAUST PIPE HOLDER

11061-1373

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1132

1
Out of stock

39156

PAD

39156-2353

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0336

1
Out of stock

55020

GUARD,FR

55020-2180

1
Out of stock

55020A

GUARD,RR

55020-2237

1
Out of stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92071

GROMMET

92071-0752

1
Out of stock

92071A

GROMMET

92071-1270

1
Out of stock

92092

BUSHING-RUBBER

92092-1081

1
Out of stock

92151

BOLT,FLANGED,8X40

92151-1532

1
Out of stock

92152

COLLAR

92152-0188

1
Out of stock

92152A

COLLAR,6.3X8.3X16

92152-0286

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,SOCKET

92154-1281

1
Out of stock

92161

DAMPER

92161-0135

1
Out of stock

92161A

DAMPER

92161-0306

1
Out of stock

92161B

DAMPER

92161-2100

1
Out of stock

92173

CLAMP,64.5MM

92173-0284

1
Out of stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0121

1
Out of stock

92210A

NUT,CAP,8MM

92210-1132

1
Out of stock

132

1

$3.11

In stock
