2025 Kawasaki Z900RS Se Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki Z900RS Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

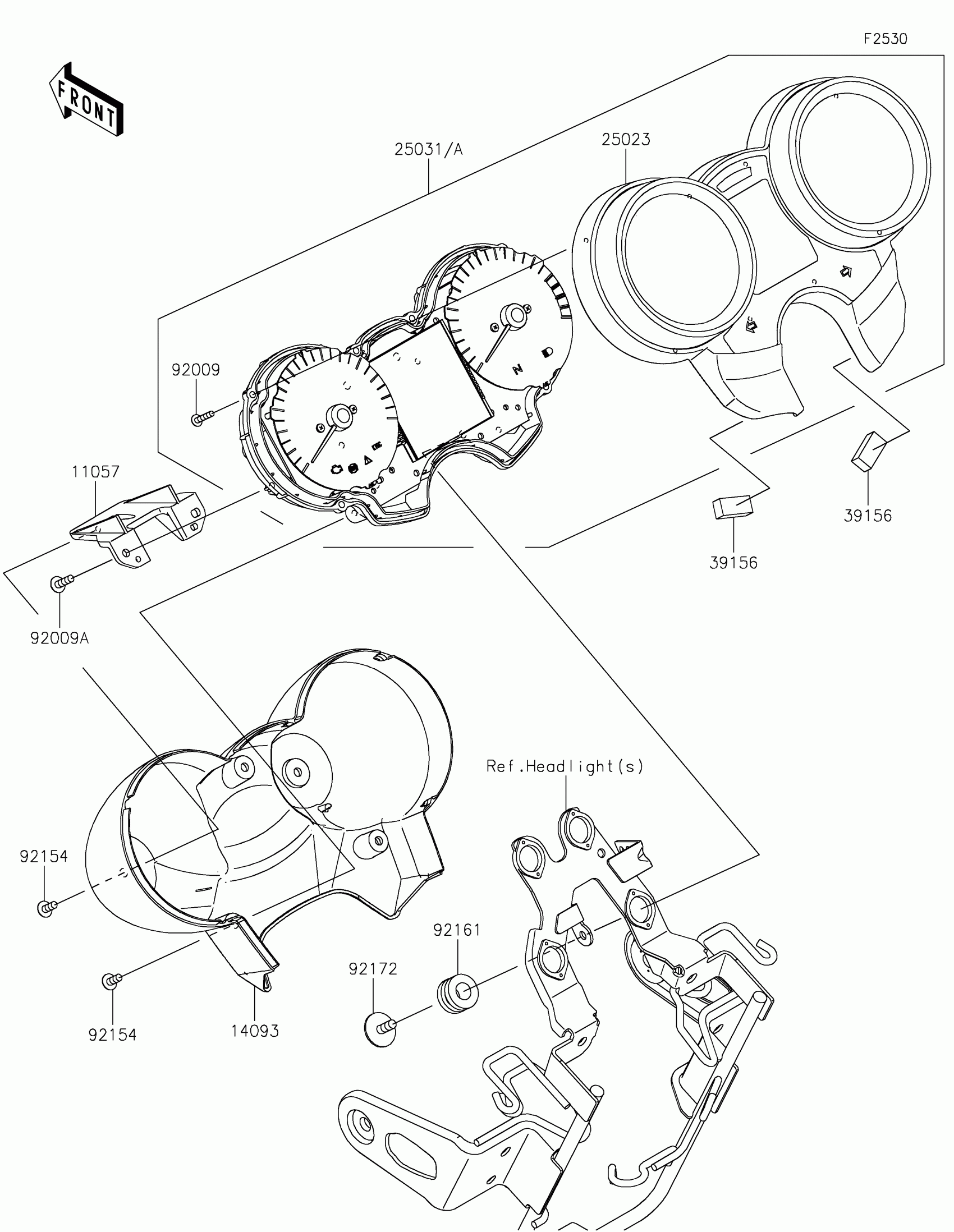

2025 Kawasaki Z900RS Se Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-0912

1
Out of stock

14093

COVER

14093-0628

1
Out of stock

25023

1

$178.92

In stock

39156

PAD,10X20X8

39156-2294

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1792

1
Out of stock

92154

BOLT,TORX,4X10

92154-4103

1

$1.93

In stock

92161

DAMPER,10X20X12

92161-2102

1
Out of stock

92172

1

$2.25

In stock
