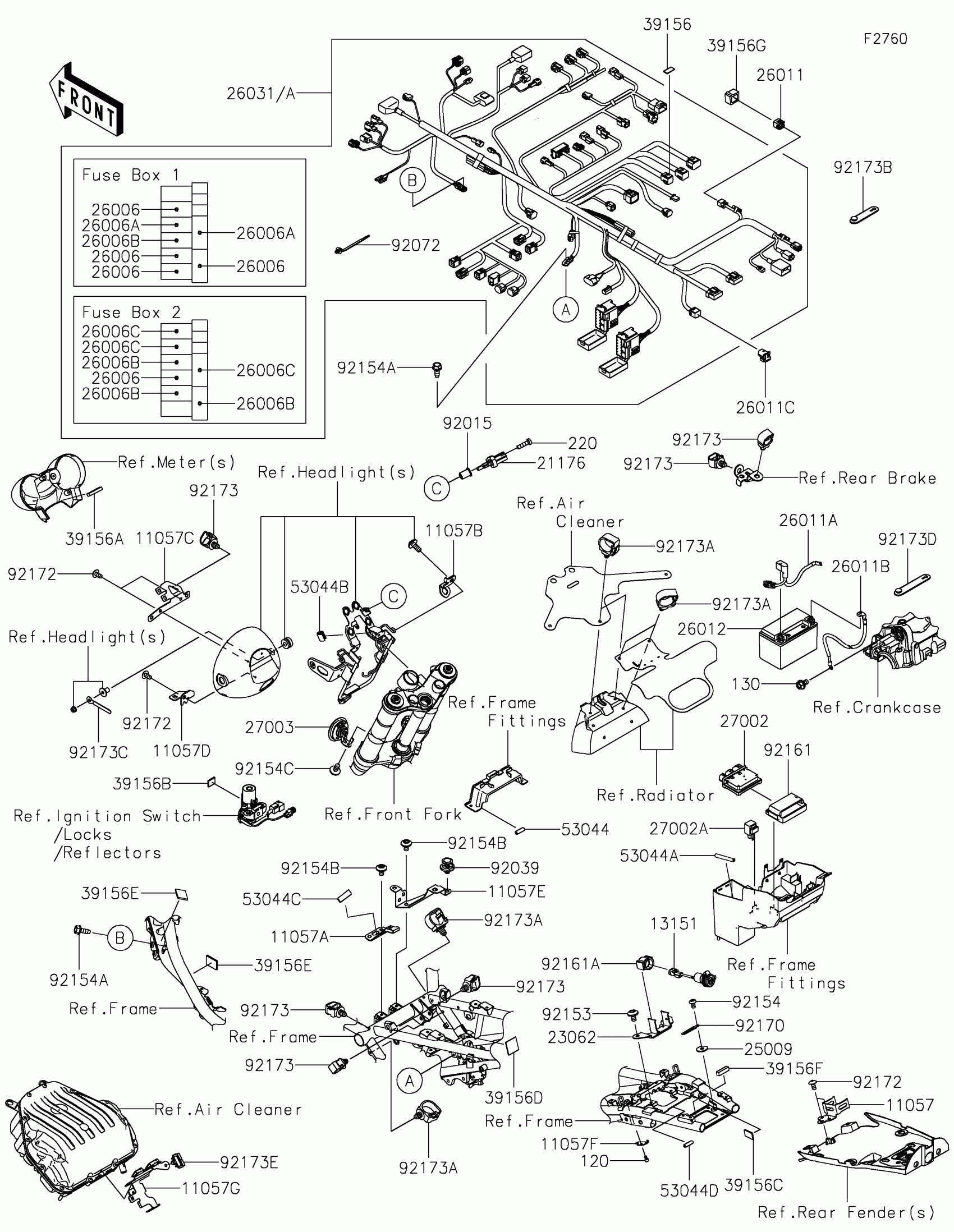

Kawasaki Z900RS SE Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAGNETIC SW.

11057-0916

$5.98

11057A

BRACKET,FUEL PUMP CONNECTOR

11057-0917

$5.76

11057B

BRACKET,METER HARNESS

11057-0919

$4.51

11057C

BRACKET,HEAD LAMP COVER,UPP

11057-1322

$9.20

11057D

BRACKET,HEAD LAMP COVER,LWR

11057-1323

$3.29

11057E

BRACKET,UPPER-CROSS

11057-3858

$12.05

11057F

BRACKET,DIAG CONNECTOR

11057-7203

$4.90

11057G

BRACKET,AIR CLEANER

11057-7742

$14.81

13151

SWITCH-COMP,DC OUTLET

13151-0580

$144.21

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

23062

BRACKET-COMP,DC SOCKET

23062-1000

$12.02

25009

WASHER,5.2X16X1.2

25009-004

$2.88

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$5.71

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$5.71

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,BATTERY(+)

26011-0971

$81.79

26011B

WIRE-LEAD,BATTERY(-)

26011-0972

$84.65

26011C

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

$145.53

27002

RELAY-ASSY

27002-0050

$127.74

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$48.33

27003

HORN

27003-0127

$67.21

39156

PAD,10X20X1

39156-2241

$0.95

39156A

PAD,8X50X10

39156-2283

$1.34

39156B

PAD,20X25X4

39156-2284

$1.17

39156C

PAD,20X40X4

39156-2285

$1.34

39156D

PAD,20X20X1

39156-2288

$0.95

39156E

PAD,30X40X4

39156-2348

$1.54

39156F

PAD,10X40X10

39156-2350

$1.17

39156G

PAD,DIAG CONNECTOR

39156-2361

$5.10

53044

TRIM,L=30

53044-0001

$2.29

53044A

TRIM

53044-0018

$4.14

53044B

TRIM

53044-0577

$2.03

53044C

TRIM,9X6.5X20

53044-0596

$3.68

53044D

TRIM,9X6.5X30

53044-0632

$3.97

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92153

BOLT,SOCKET,6X10

92153-1628

$1.53

92154

BOLT

92154-0314

$1.10

92154A

BOLT,FLANGED,6X16

92154-0551

$1.44

92154B

BOLT,SOCKET,6X10

92154-0774

$1.24

92154C

BOLT,SOCKET,6X12

92154-2706

$1.32

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92161A

DAMPER,DC SOCKET

92161-2069

$10.85

92170

CLAMP

92170-1514

$3.29

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92173B

CLAMP,RUBBER PLATE

92173-1229

$3.56

92173C

CLAMP

92173-1306

$1.10

92173D

CLAMP

92173-1526

$3.56

92173E

CLAMP,SENSOR WIRE

92173-1802

$1.09

120

BOLT-SOCKET,6X10

120CA0610

$1.27

130

BOLT-FLANGED,6X10

130BA0610

$0.97

220

SCREW-PAN-CROS,5X18

220AB0518

$2.80
