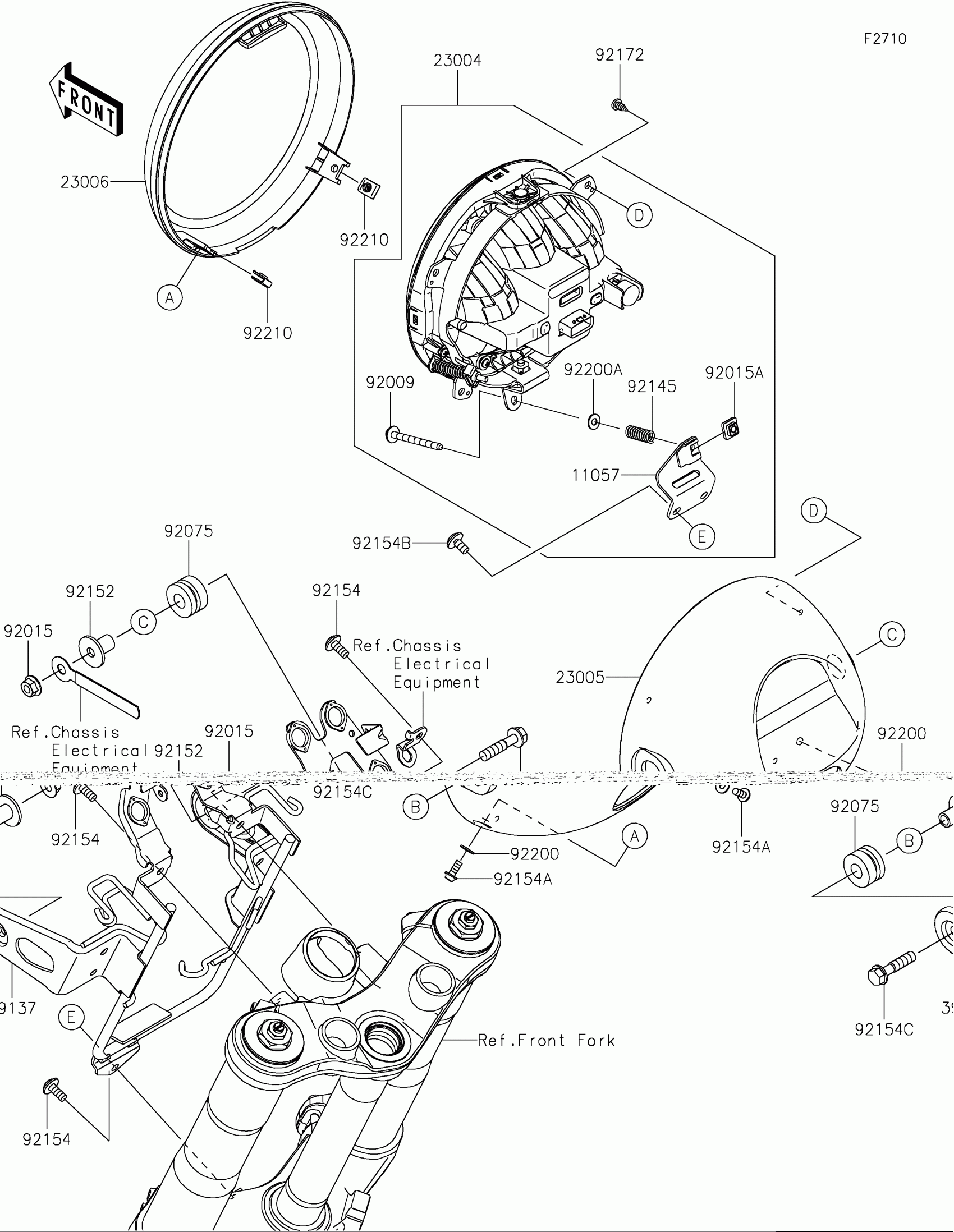

Kawasaki Z900RS SE Headlight(s) Diagram

Description

Price

11057

BRACKET

11057-2657

$17.56

23004

LAMP-HEAD,LED

23004-0406

$1,138.23

23005

BODY-COMP-HEAD LAMP,EBONY

23005-0049-H8

$161.42

23006

RIM-LAMP

23006-0019

$110.65

39137

STAY-COMP,HEAD LAMP

39137-0715

$157.34

92009

SCREW,ADJUST,5X55

92009-1683

$6.63

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,5MM

92015-1897

Unavailable

92075

DAMPER

92075-1736

$6.57

92145

SPRING

92145-1887

$21.89

92152

COLLAR,8X12X20.3

92152-2433

$7.91

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,SOCKET,5X12

92154-0917

$4.72

92154B

BOLT,SOCKET,6X12

92154-2706

$1.78

92154C

BOLT,FLANGED,8X35

92154-2923

$6.57

92172

SCREW,TAPPING,5X12

92172-0239

$1.00

92200

WASHER,NYLON,5.2X12X1

92200-2208

$0.64

92200A

WASHER

92200-2282

$4.60

92210

NUT

92210-0571

$3.52
