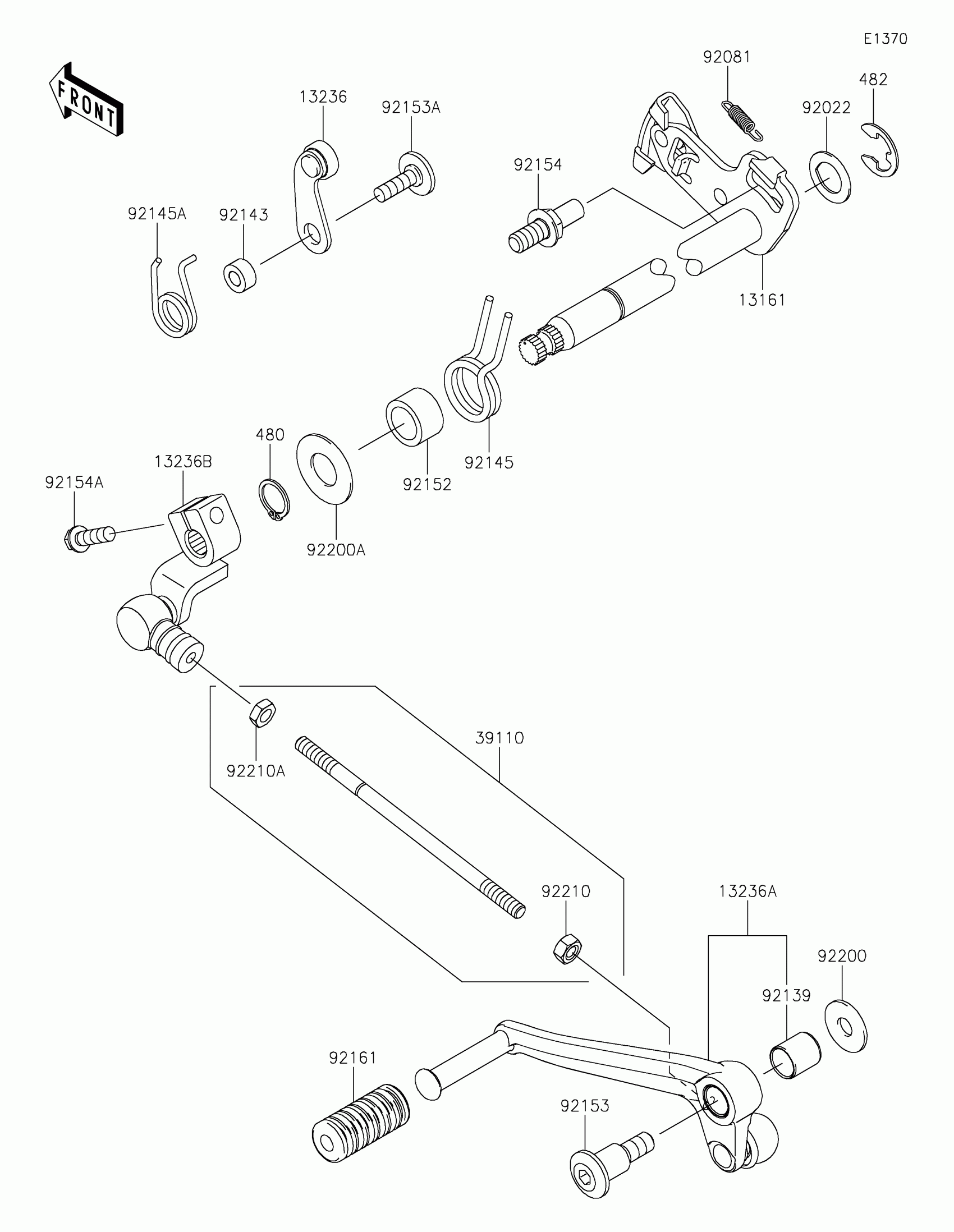

Kawasaki Z900RS SE Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0592

$88.13

13236

LEVER-COMP

13236-0068

$12.86

13236A

LEVER-COMP,CHANGE PEDAL

13236-0808

$85.12

13236B

LEVER-COMP,ENGINE SIDE

13236-0815

$56.62

39110

ROD-ASSY-TIE

39110-0044

$23.97

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92139

BUSHING

92139-0023

$3.69

92143

COLLAR

92143-1595

$9.51

92145

SPRING

92145-1122

$9.68

92145A

SPRING,GEAR POSITION

92145-1872

$7.36

92152

COLLAR,14.2X19.9X12.0

92152-1383

$4.18

92153

BOLT,SOCKET,8X16.7

92153-0446

$10.11

92153A

BOLT,6X20

92153-1505

$7.75

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92154A

BOLT,FLANGED-SMALL,6X20

92154-2632

$1.94

92161

DAMPER,CHANGE PEDAL

92161-2389

$6.18

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92200A

WASHER

92200-0265

$2.61

92210

NUT,6MM

92210-1566

$2.17

92210A

NUT,LEFT HANDED,6MM

92210-1567

$2.17

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92
