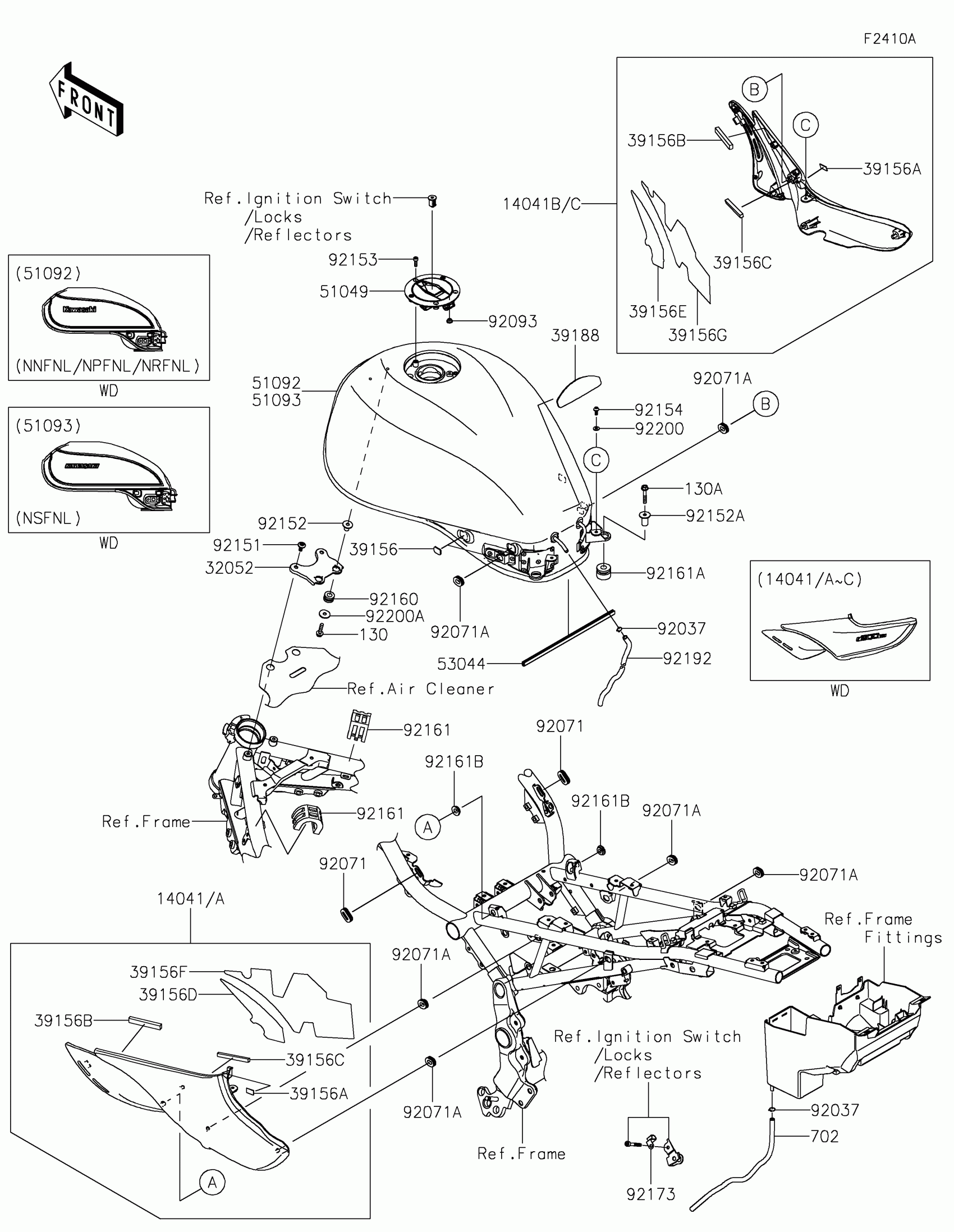

Kawasaki Z900RS SE Fuel Tank(CA) Diagram

#

Description
Price

14041

COVER-SIDE,LH,M.D.BLACK

14041-5103-17K

$438.65

14041B

COVER-SIDE,RH,M.D.BLACK

14041-5104-17K

$438.65

32052

BRACKET-TANK

32052-0792

$21.39

39156

PAD,13X18X2

39156-2204

$2.19

39156A

PAD,10X20X1

39156-2241

$0.95

39156B

PAD,7X70X10

39156-2268

$1.54

39156C

PAD,7X70X7

39156-2269

$1.54

39156D

PAD,72X188X0.3,COVER LH

39156-2273

$5.32

39156E

PAD,72X188X0.3,COVER RH

39156-2274

$5.32

39156F

PAD,137X328X0.45,COVER LH

39156-2275

$14.78

39156G

PAD,137X328X0.45,COVER RH

39156-2276

$14.78

39188

TAPE

39188-0584

$9.97

51049

CAP-TANK,FUEL

51049-0758

$125.48

51092

TANK-COMP-FUEL,M.D.BLACK

51092-5179-17K

$1,730.94

53044

TRIM

53044-0645

$9.53

92037

CLAMP,TUBE

92037-010

$2.99

92071

GROMMET,EMBOSSED 0776

92071-0776

$2.20

92071A

GROMMET,EMBOSSED 0777

92071-0777

$1.09

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,6.3X9.5X14.1

92152-1847

$5.66

92152A

COLLAR6.3X22X23.6

92152-2427

$8.97

92153

BOLT,SOCKET,5X16

92153-1616

$1.04

92154

BOLT,SOCKET,5X12

92154-1421

$0.81

92160

DAMPER,10X20X12

92160-1167

$3.57

92161

DAMPER

92161-1963

$7.43

92161A

DAMPER,12X28X21

92161-1998

$3.93

92161B

DAMPER

92161-2450

$5.47

92173

CLAMP

92173-1820

$4.08

92192

TUBE,6X9X708

92192-1845

$9.36

92200

WASHER,NYLON,5.2X12X1

92200-1011

$2.15

92200A

WASHER,6.5X22X1.6

92200-1087

$3.01

130

BOLT-FLANGED,6X25

130BA0625

$0.97

130A

BOLT-FLANGED,6X35

130BA0635

$0.78

702

TUBE-RUBBER,6X9X360

702A06360

$3.14
