2024 Kawasaki Z900RS Se Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2024 Kawasaki Z900RS Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

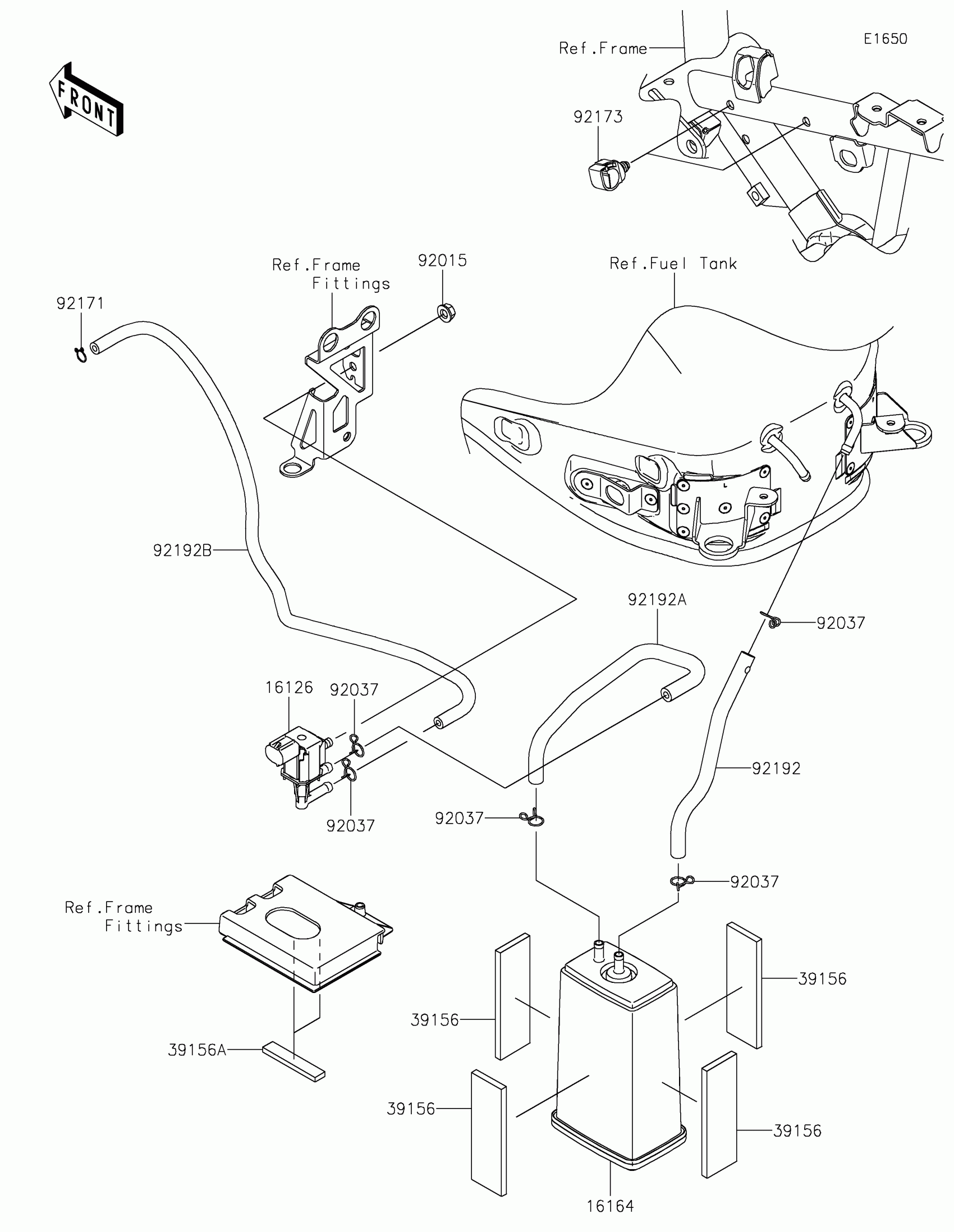

2024 Kawasaki Z900RS Se Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,PCV

16126-0740

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

39156

PAD,93X30X5

39156-1858

1

$3.15

In stock

39156A

PAD,10X52.5X4

39156-2206

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP

92037-1712

1

$3.97

In stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92192

TUBE,CANISTER-TANK

92192-1799

1
Out of stock

92192A

TUBE,PCV-CANISTER

92192-1800

1
Out of stock

92192B

TUBE,PCV-THROTTLE BODY

92192-1883

1
Out of stock
