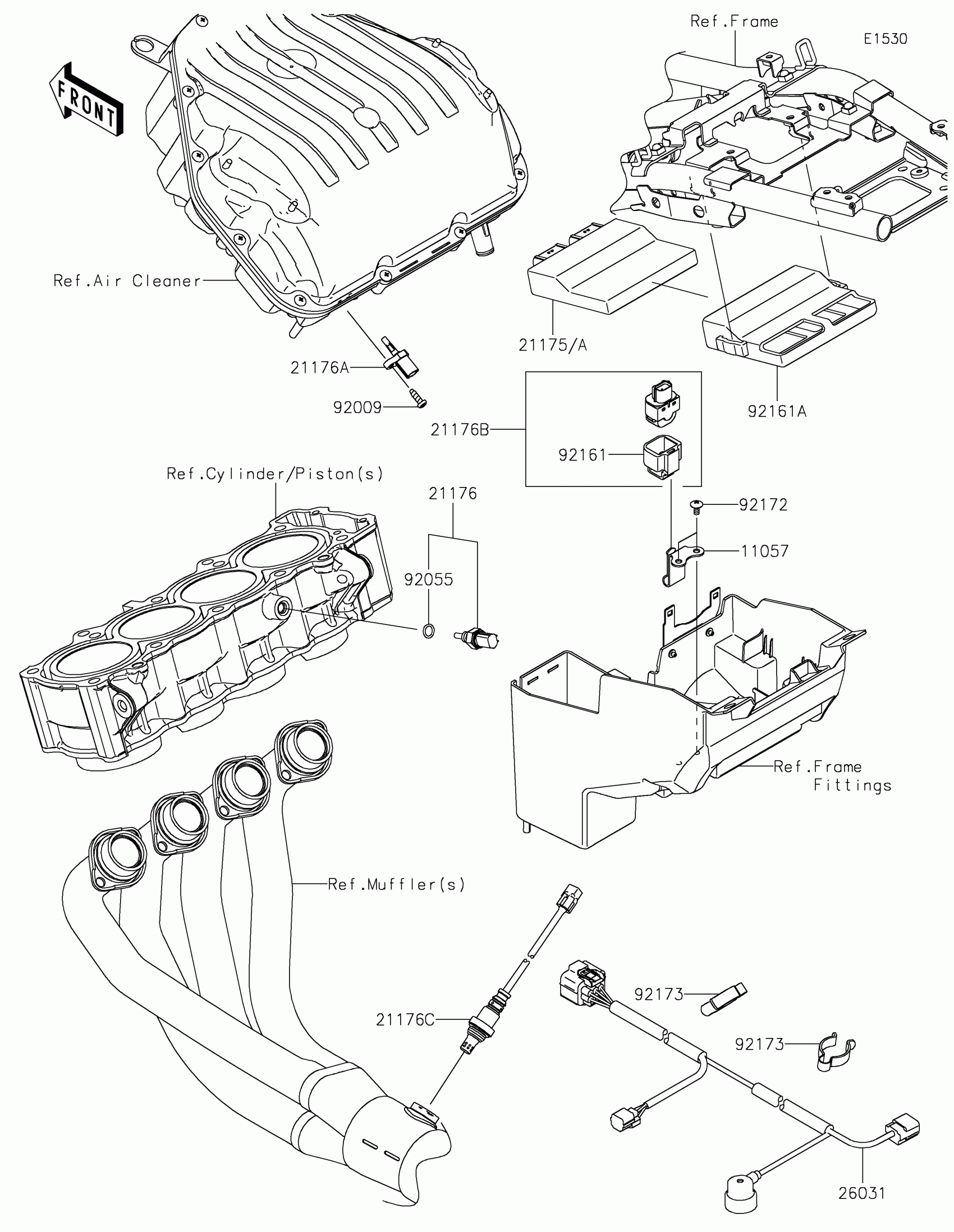

Kawasaki Z900RS SE Fuel Injection Diagram

Description

Price

11057

BRACKET,VEHICLE DOWN SENSOR

11057-0896

$6.63

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

21176C

SENSOR,OXYGEN

21176-0851

$235.01

26031

HARNESS,SUB

26031-3776

$60.51

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92161

DAMPER

92161-0951

$14.90

92161A

DAMPER,ECU

92161-2282

$26.40

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP

92173-2419

$10.92
