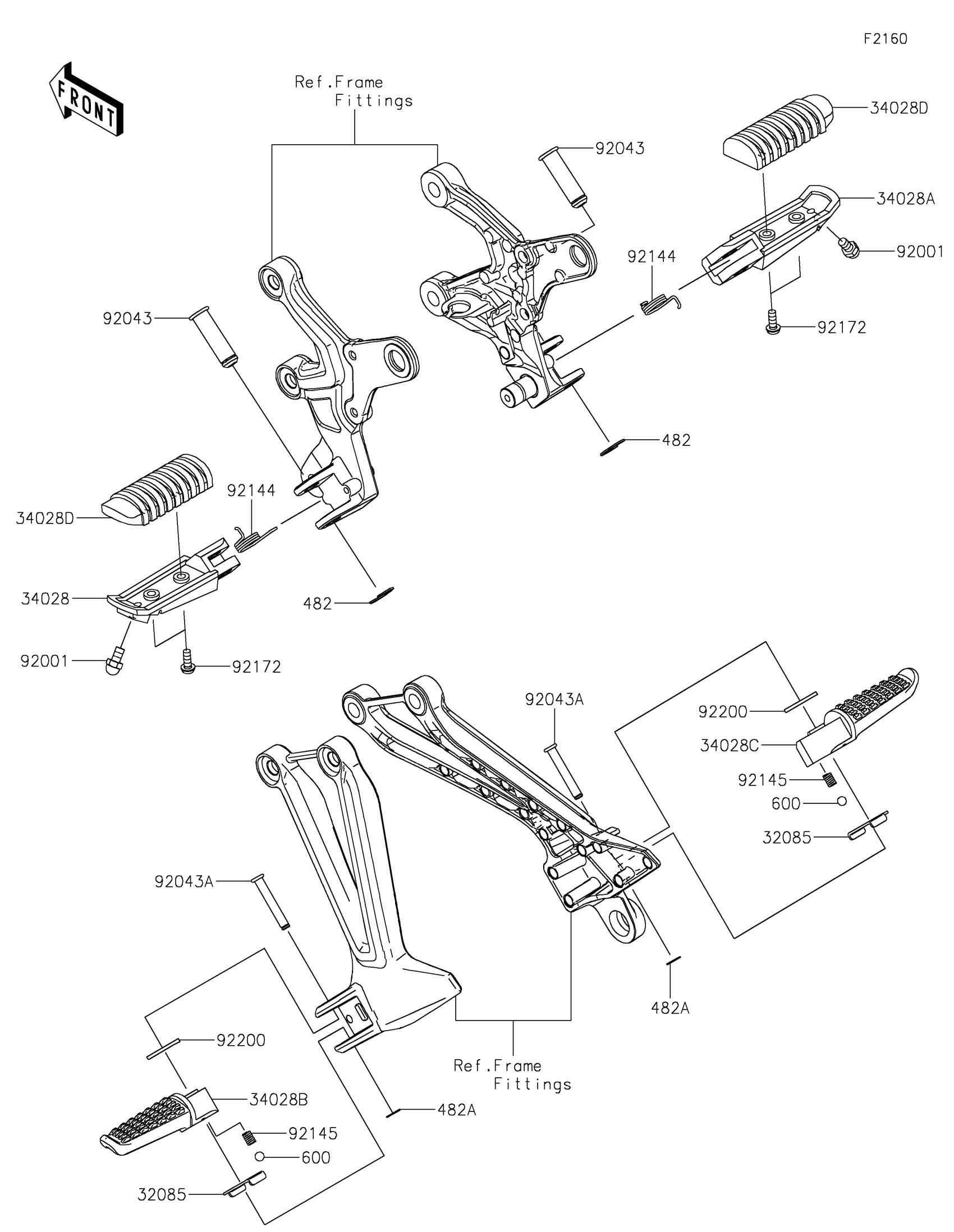

Kawasaki Z900RS SE Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,FR,LH

34028-0352

$41.53

34028A

STEP,FR,RH

34028-0353

$41.53

34028B

STEP,RR,LH

34028-0380

$79.46

34028C

STEP,RR,RH

34028-0381

$79.46

34028D

STEP,RUBBER

34028-1430

$22.74

92001

BOLT,BANK SENSOR

92001-1905

$7.31

92043

PIN,12X42.5

92043-1594

$6.00

92043A

PIN,6X40

92043-1595

$2.34

92144

SPRING,STEP RETURN

92144-1567

$6.51

92145

SPRING

92145-1319

$1.81

92172

SCREW,5X14

92172-0976

$3.94

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62
