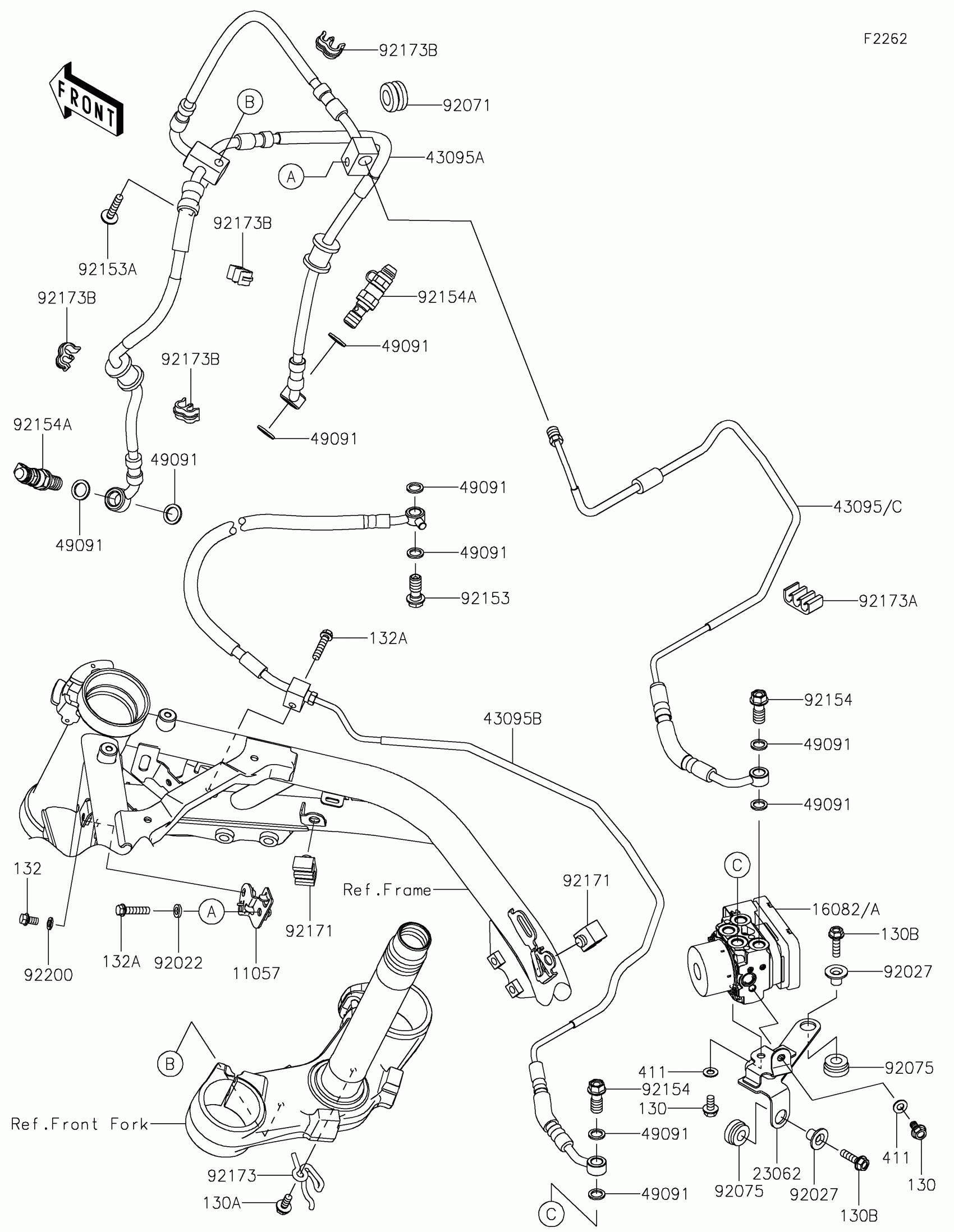

Kawasaki Z900RS SE Brake Piping Diagram

#

Description
Price

11057

BRACKET,HEAD PIPE,LH

11057-1397

$21.33

16082A

PUMP-ASSY-OIL,ABS

16082-0948

$1,505.33

23062

BRACKET-COMP,ABS UNIT

23062-1280

$24.93

43095A

HOSE-BRAKE,FR M/CYL.-ABS UNIT

43095-1802

$341.66

43095B

HOSE-BRAKE,FITTING-FR CALIPER

43095-1864

$437.63

43095C

HOSE-BRAKE,ABS UNIT-FITTING

43095-1979

$125.79

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,6.5X11.5X2

92022-1506

$3.92

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92071

GROMMET,12.2X26X16

92071-0785

$2.15

92075

DAMPER

92075-277

$2.84

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,SOCKET,6X30

92153-1528

$3.39

92154

BOLT,BANJO,10X22

92154-1138

$7.40

92154A

BOLT,BANJO,10X19

92154-4032

$45.34

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,UNDER BKT,RH

92173-1793

$19.08

92173A

CLAMP,3 PIPE

92173-1797

$3.44

92173B

CLAMP

92173-2301

$1.36

92200

WASHER,6.5X11X1.2

92200-1964

$2.95

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

411

WASHER-PLAIN,6MM

411AA0600

$2.92
