2018 Kawasaki Z900RS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

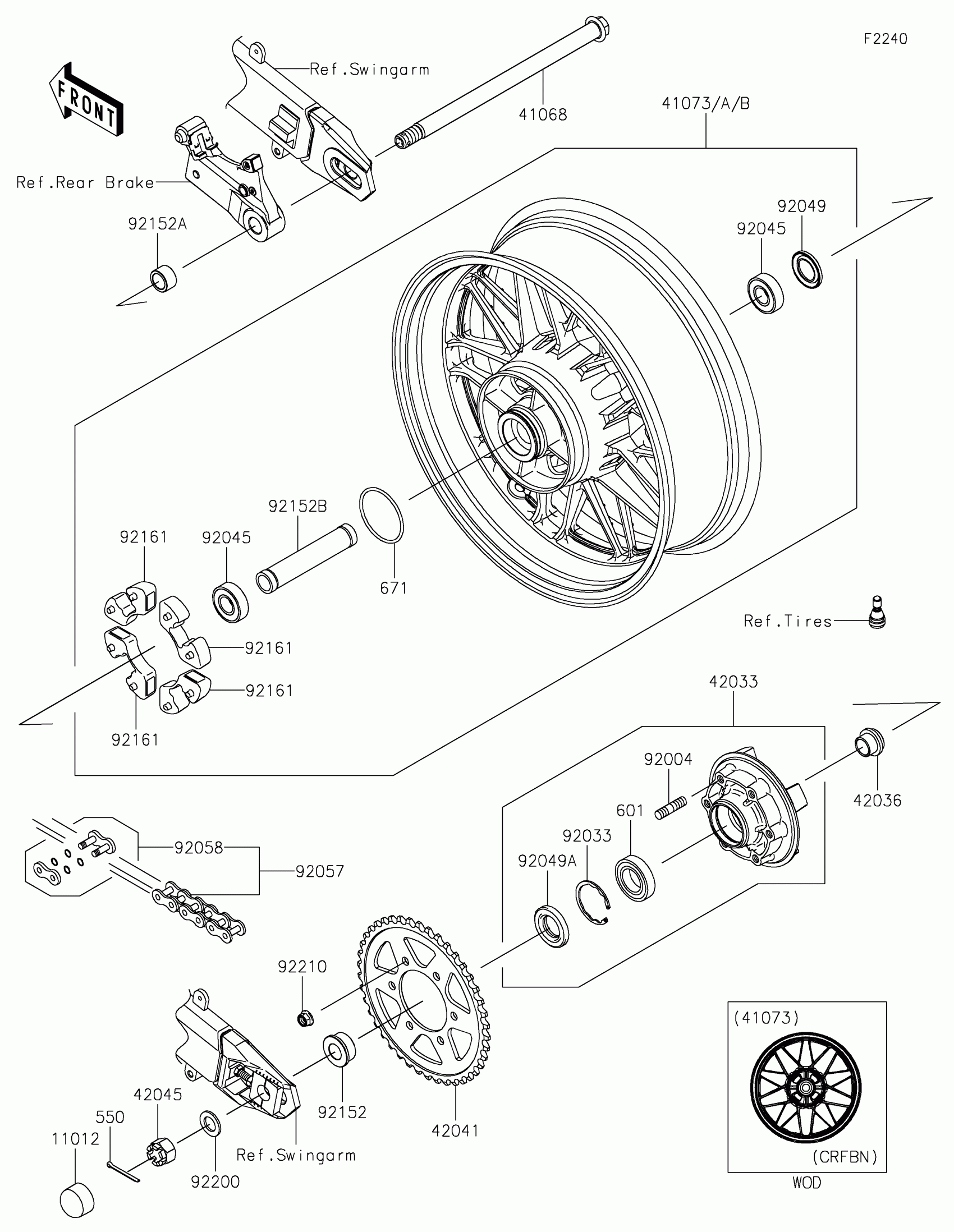

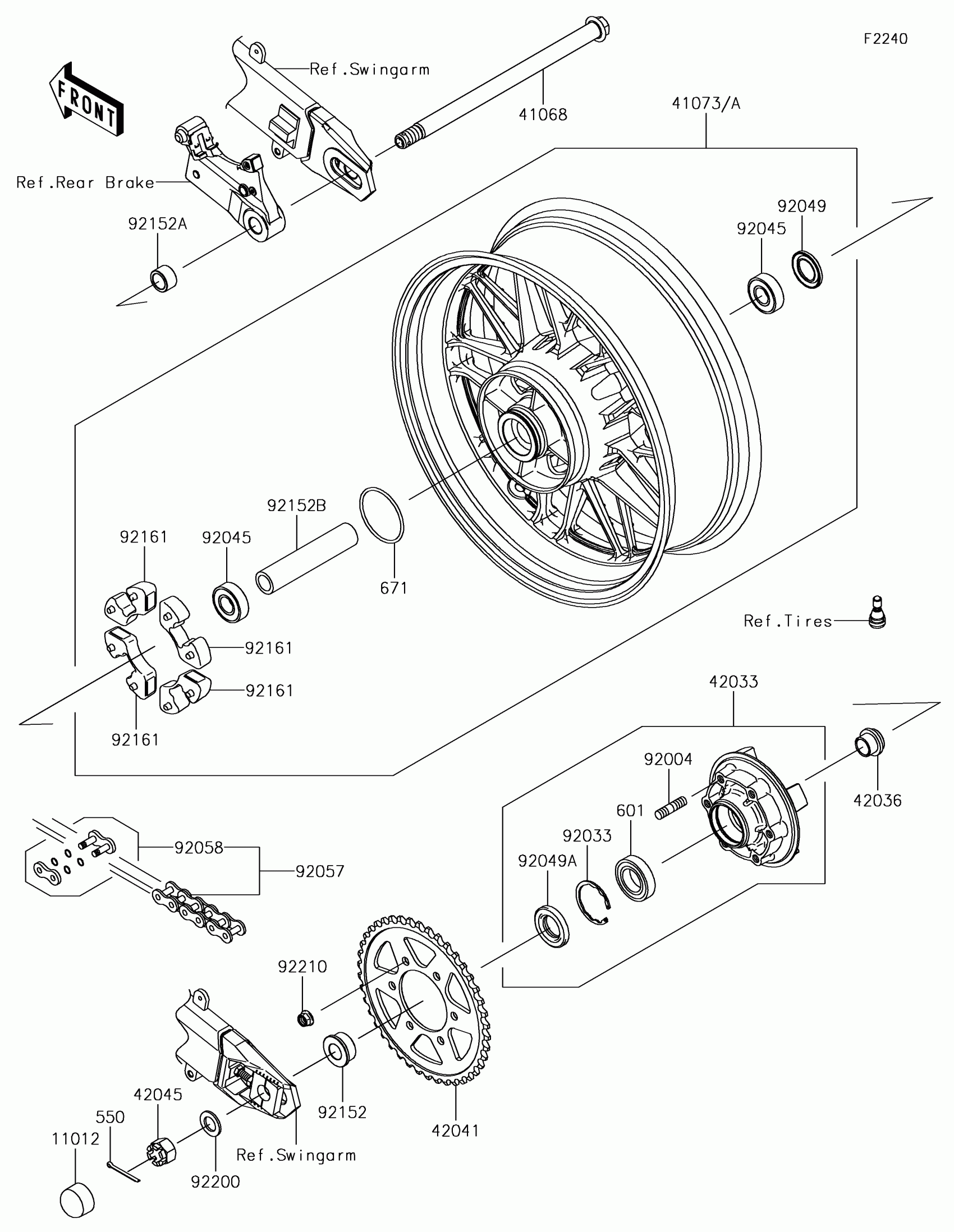

2018 Kawasaki Z900RS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AXLE NUT

11012-1590

1
Out of stock

41068

AXLE,RR,18X327.2

41068-0619

1
Out of stock

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0723-60P

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0028

1
Out of stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1
Out of stock

42041

SPROCKET-HUB,42T

42041-0163

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

92004

STUD,10X19

92004-0028

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92045

BEARING-BALL,20X47X14

92045-0821

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92057

CHAIN,DRIVE,EK525RMX3/3D,114L

92057-0672

1
Out of stock

92058

JOINT-CHAIN

92058-0041

1
Out of stock

92152

COLLAR,RR AXLE,LH,L=18

92152-0118

1
Out of stock

92152A

COLLAR,RR AXLE,RH,L=16.4

92152-0559

1
Out of stock

92152B

COLLAR,20.2X29X141.9

92152-2337

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0342

1
Out of stock

92200

WASHER,19X32X2.6

92200-1489

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

550

PIN-COTTER,4.0X40

550AA4040

1
Out of stock

601

BEARING-BALL

601B6205UU

1
Out of stock

671

O RING,60MM

671B2560

1
Out of stock
