2018 Kawasaki Z900RS Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

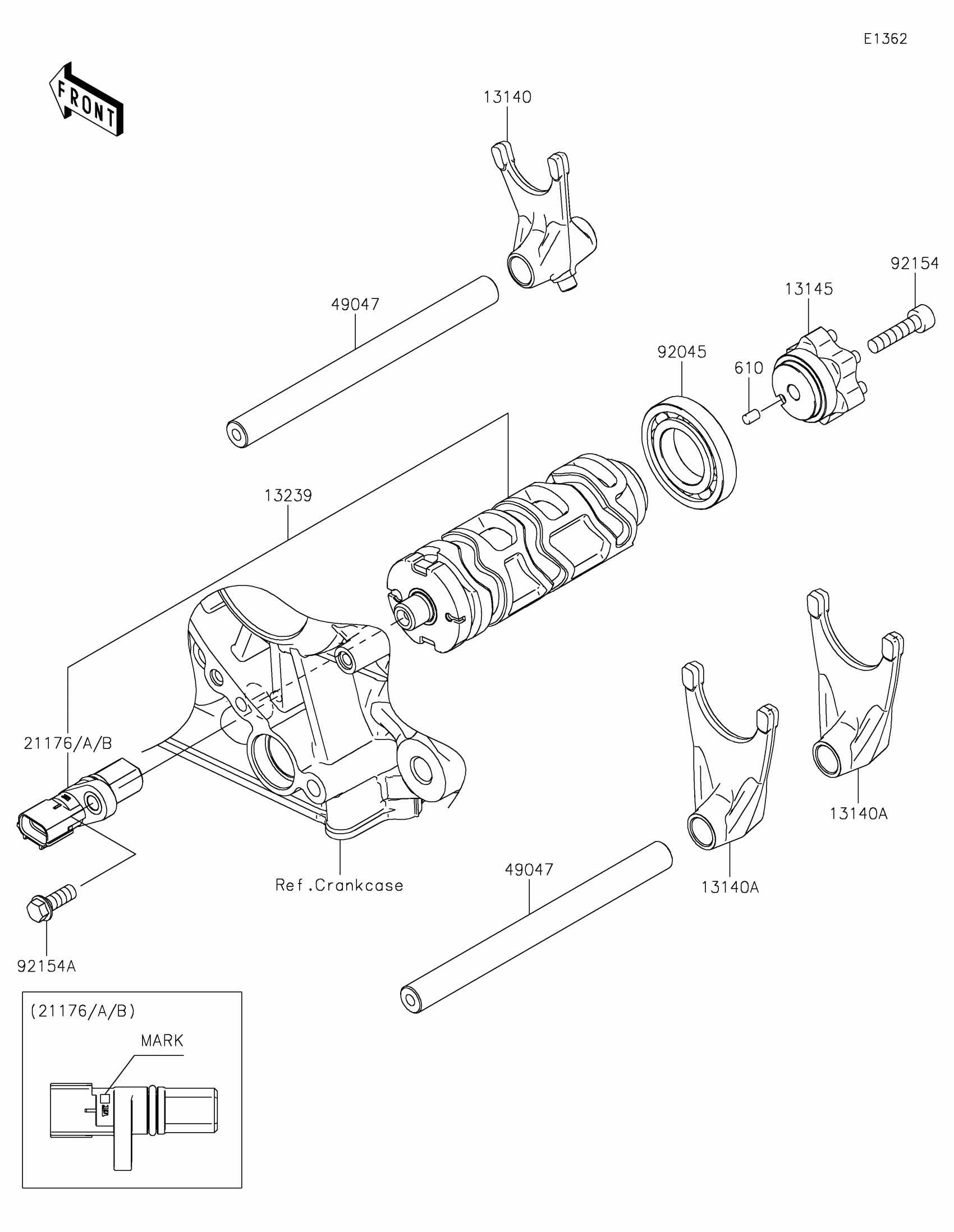

2018 Kawasaki Z900RS Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT

13140-0061

1
Out of stock

13140A

FORK-SHIFT

13140-0062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0568

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0581

1
Out of stock

21176

SENSOR,GEAR POSITION,M MARK

21176-0825

1
Out of stock

21176A

SENSOR,GEAR POSITION,H MARK

21176-0845

1
Out of stock

21176B

SENSOR,GEAR POSITION,L MARK

21176-0846

1
Out of stock

49047

ROD-SHIFT

49047-0023

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-2096

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
