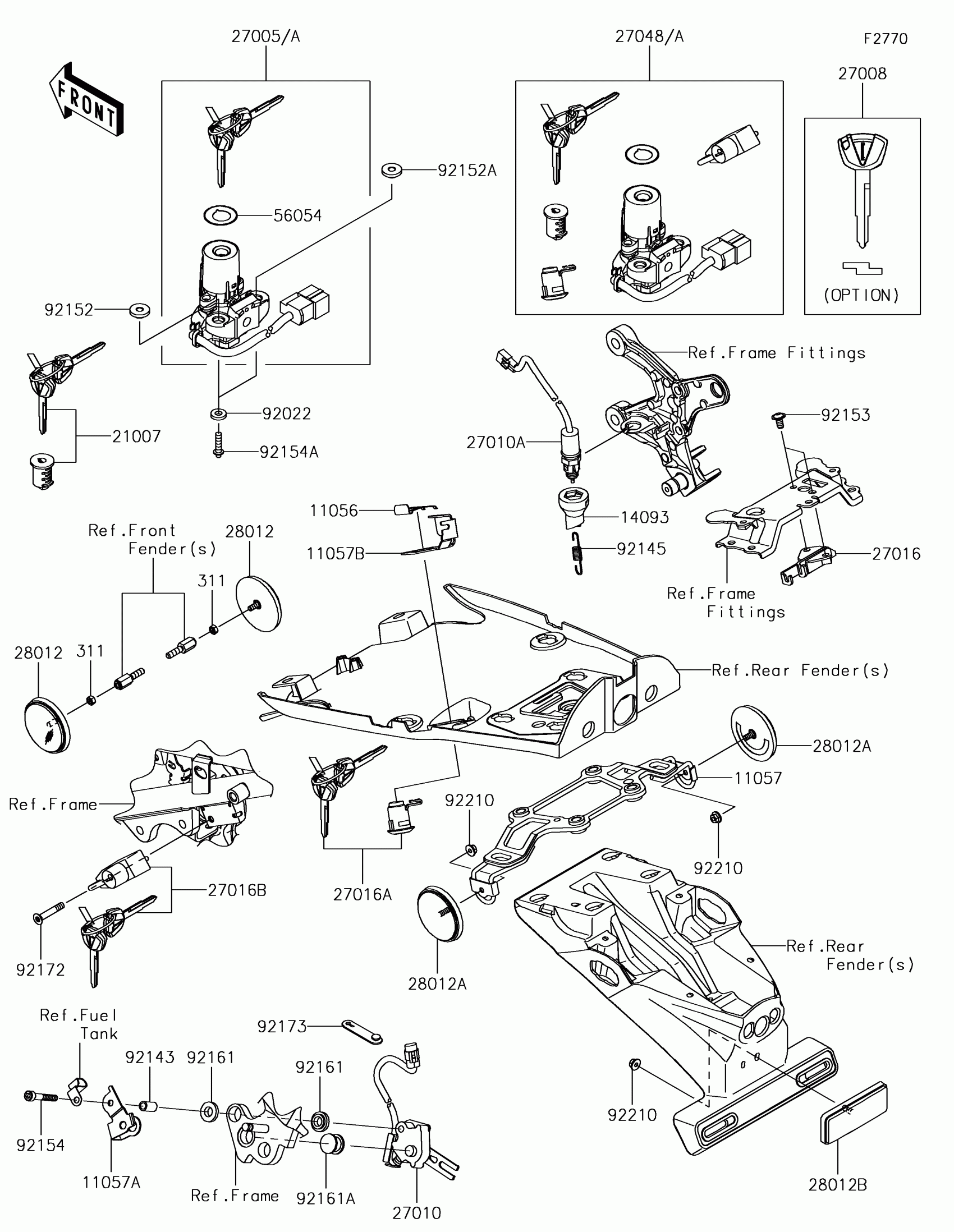

Kawasaki Z900RS Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11056

BRACKET,CLASP

11056-0238

$6.00

11057

BRACKET,RR REFLECTOR

11057-0878

$147.44

11057A

BRACKET,STAND SW.

11057-1413

$7.92

11057B

BRACKET,SEAT LOCK CABLE

11057-1556

$16.43

14093

COVER,BRAKE SW.

14093-0666

$7.36

21007

ROTOR,LOCK,TANK CAP

21007-5068

$88.32

27005

SWITCH-ASSY-IGNITION

27005-0646

$174.88

27005A

SWITCH-ASSY-IGNITION

27005-5167

$211.67

27008

KEY-LOCK,BLANK,IMMOBI

27008-0558

$59.52

27010

SWITCH,SIDE STAND

27010-0811

$71.08

27010A

SWITCH,RR BRAKE

27010-0867

$33.01

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5373

$90.40

27016B

LOCK-ASSY,HELMET

27016-5402

$68.08

27048

SWITCH-ASSY

27048-5159

$469.53

27048A

SWITCH-ASSY

27048-5184

$488.26

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

56054

MARK,IGNITION

56054-1596

$10.21

92022

WASHER,7X15.5X3

92022-312

$4.45

92143

COLLAR,6.5X9.5X17

92143-1408

$4.76

92145

SPRING,REAR BRAKE

92145-0946

$5.01

92152

COLLAR,LH,IGN SW,6X20X7.4

92152-2516

$10.86

92152A

COLLAR,RH,IGN SW,6.45X20X7.4

92152-2518

$12.18

92153

BOLT,SOCKET,6X12

92153-1617

$1.34

92154

BOLT,SOCKET,6X40

92154-0505

$1.63

92154A

BOLT,TORX,6X22

92154-1858

$3.94

92161

DAMPER

92161-0117

$2.90

92161A

DAMPER

92161-0118

$2.90

92172

SCREW,HEXLOBE,6X35

92172-0835

$3.02

92173

CLAMP,RUBBER PLATE

92173-1229

$3.94

92210

NUT,FLANGED,5MM

92210-0007

$2.70

311

NUT-HEX,5MM

311AB0500

$0.43
