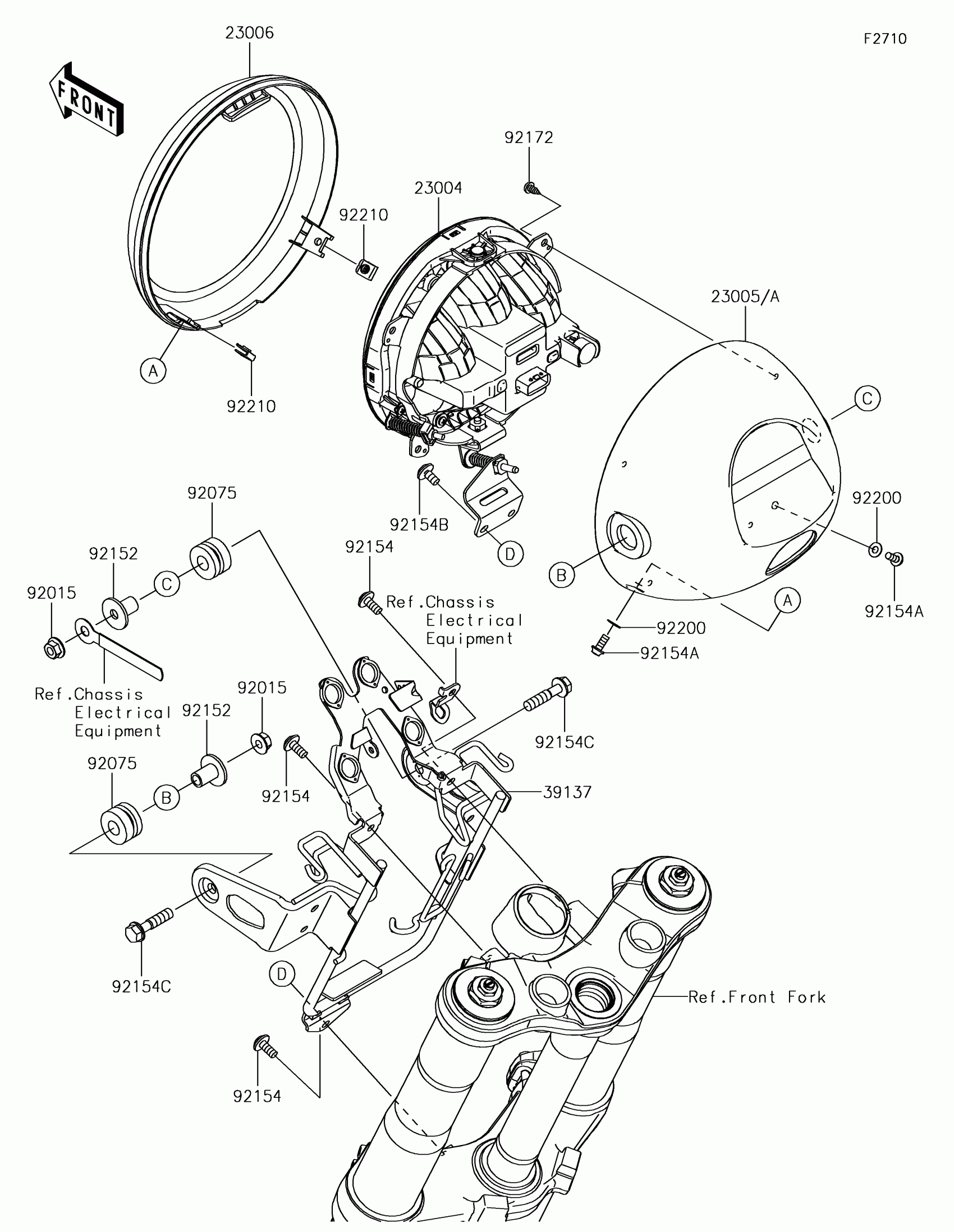

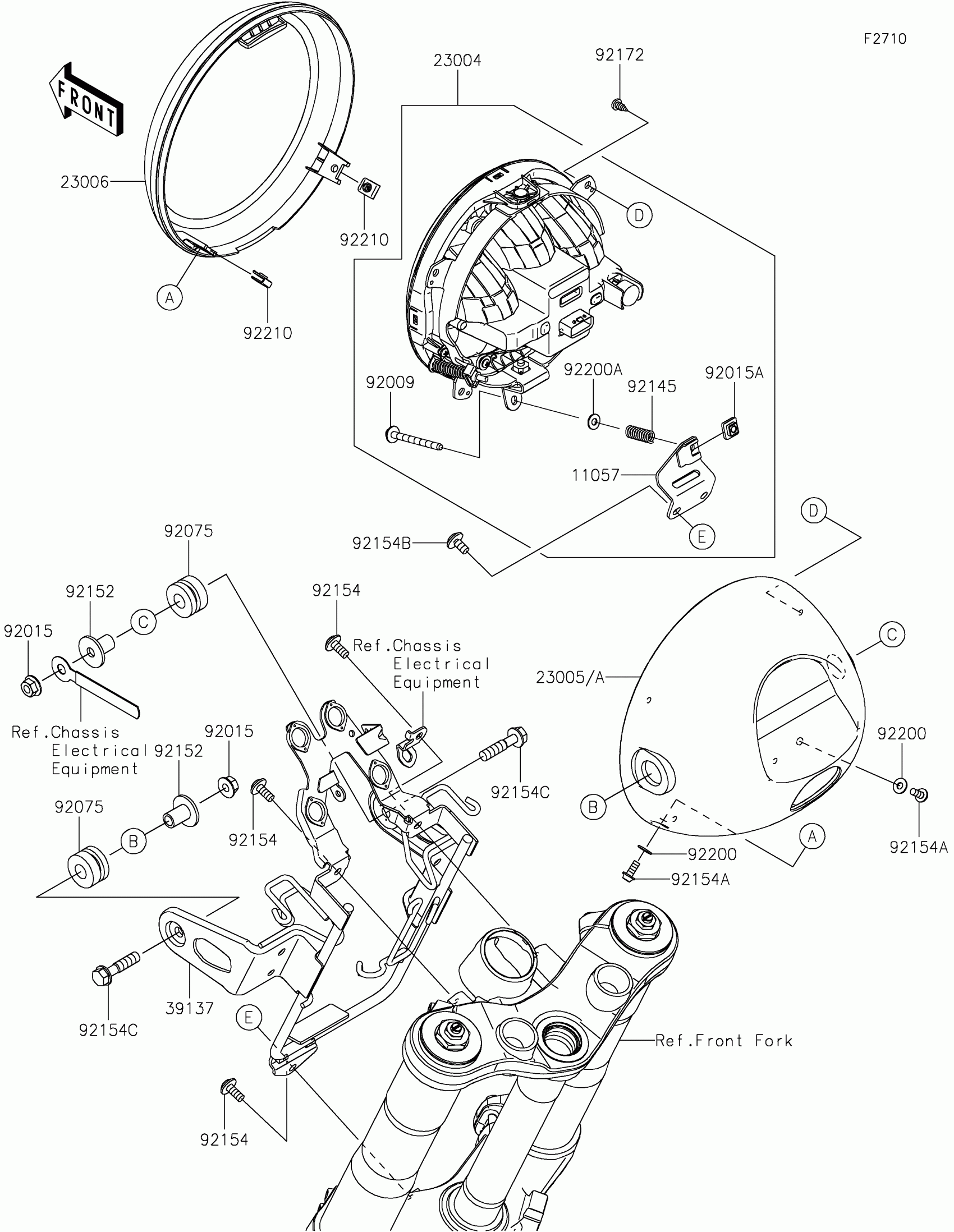

Kawasaki Z900RS Headlight(s) Diagram

Description

Price

23004

LAMP-HEAD,LED

23004-0373

$1,138.23

23005A

BODY-COMP-HEAD LAMP,EBONY

23005-0049-H8

$161.42

23006

RIM-LAMP

23006-0019

$110.65

39137

STAY-COMP,HEAD LAMP

39137-0678

$157.36

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92075

DAMPER

92075-1736

$6.57

92152

COLLAR,8X12X20.3

92152-2433

$7.91

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,SOCKET,5X12

92154-0917

$4.72

92154B

BOLT,SOCKET,6X12

92154-2706

$1.78

92154C

BOLT,FLANGED,8X35

92154-2923

$6.57

92172

SCREW,TAPPING,5X12

92172-0239

$1.00

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

92210

NUT

92210-0571

$3.52
