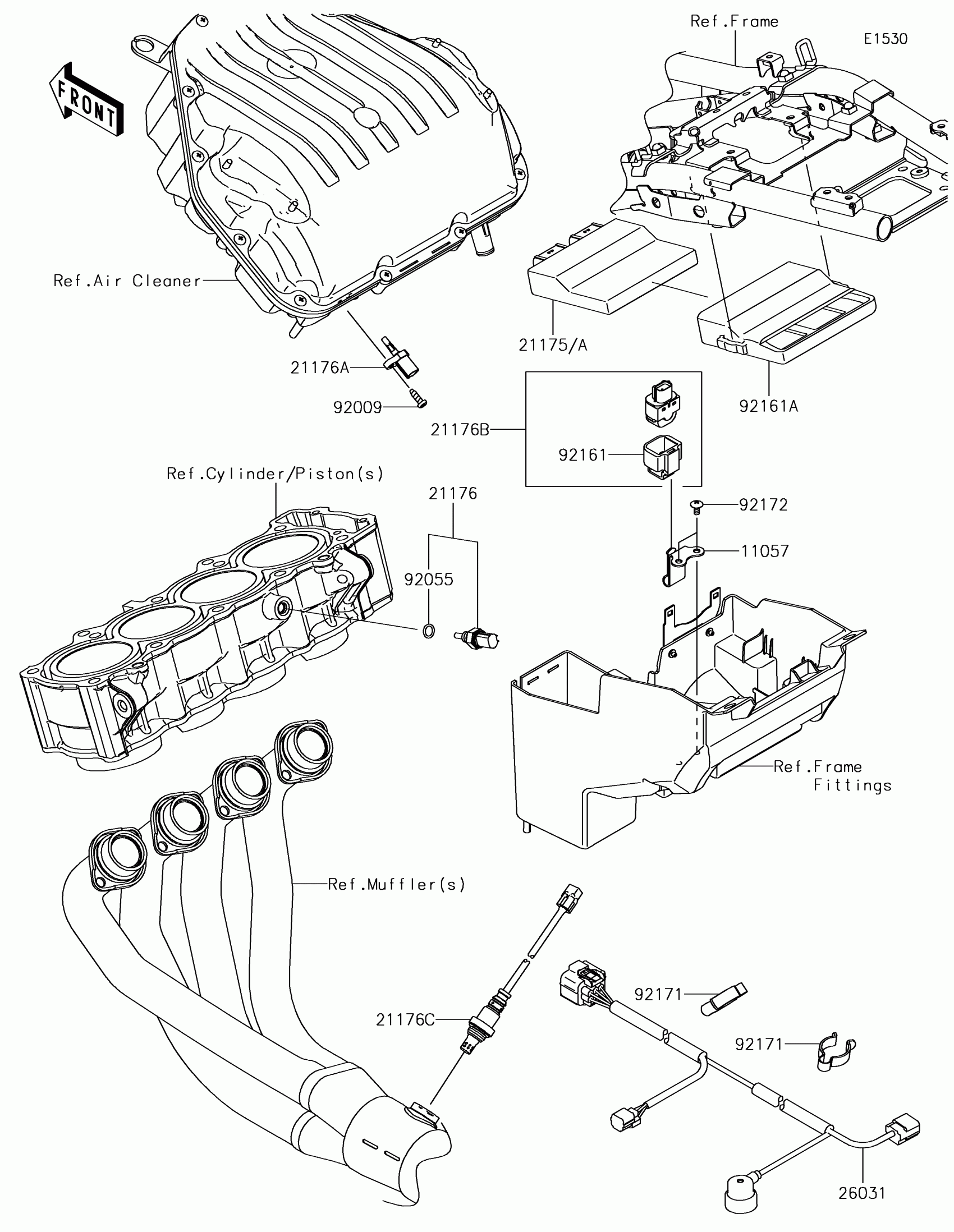

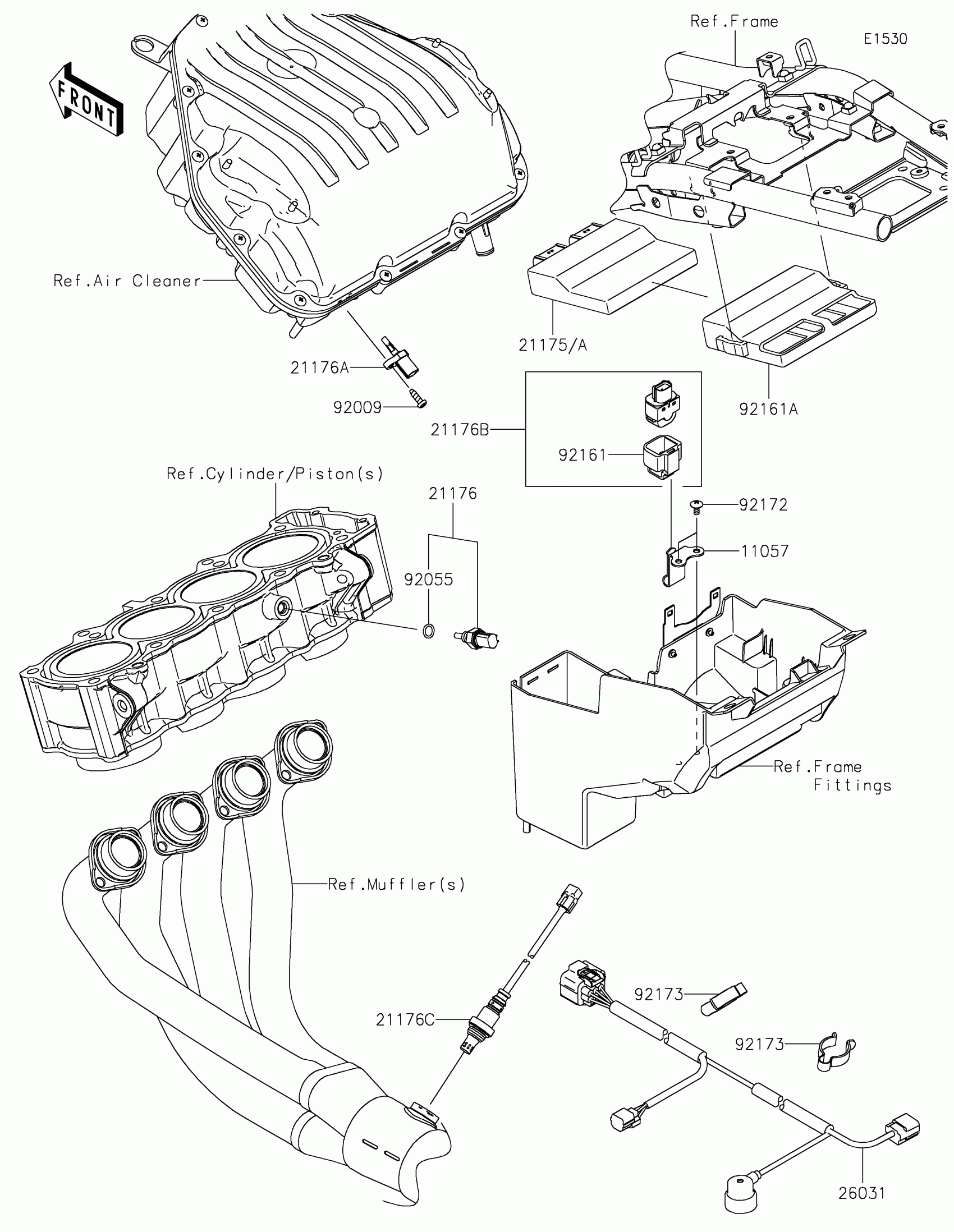

Kawasaki Z900RS Fuel Injection Diagram

Description

Price

11057

BRACKET,VEHICLE DOWN SENSOR

11057-0896

$5.76

21175A

CONTROL UNIT-ELECTRONIC

21175-1317

$1,278.93

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$80.95

21176C

SENSOR,OXYGEN

21176-0851

$239.98

26031

HARNESS,SUB

26031-2282

$61.70

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92161

DAMPER

92161-0951

$14.14

92161A

DAMPER,ECU

92161-1965

$30.18

92171

CLAMP,CABLE

92171-1283

$10.51

92172

SCREW,TAPPING,5X10

92172-0262

$1.04
