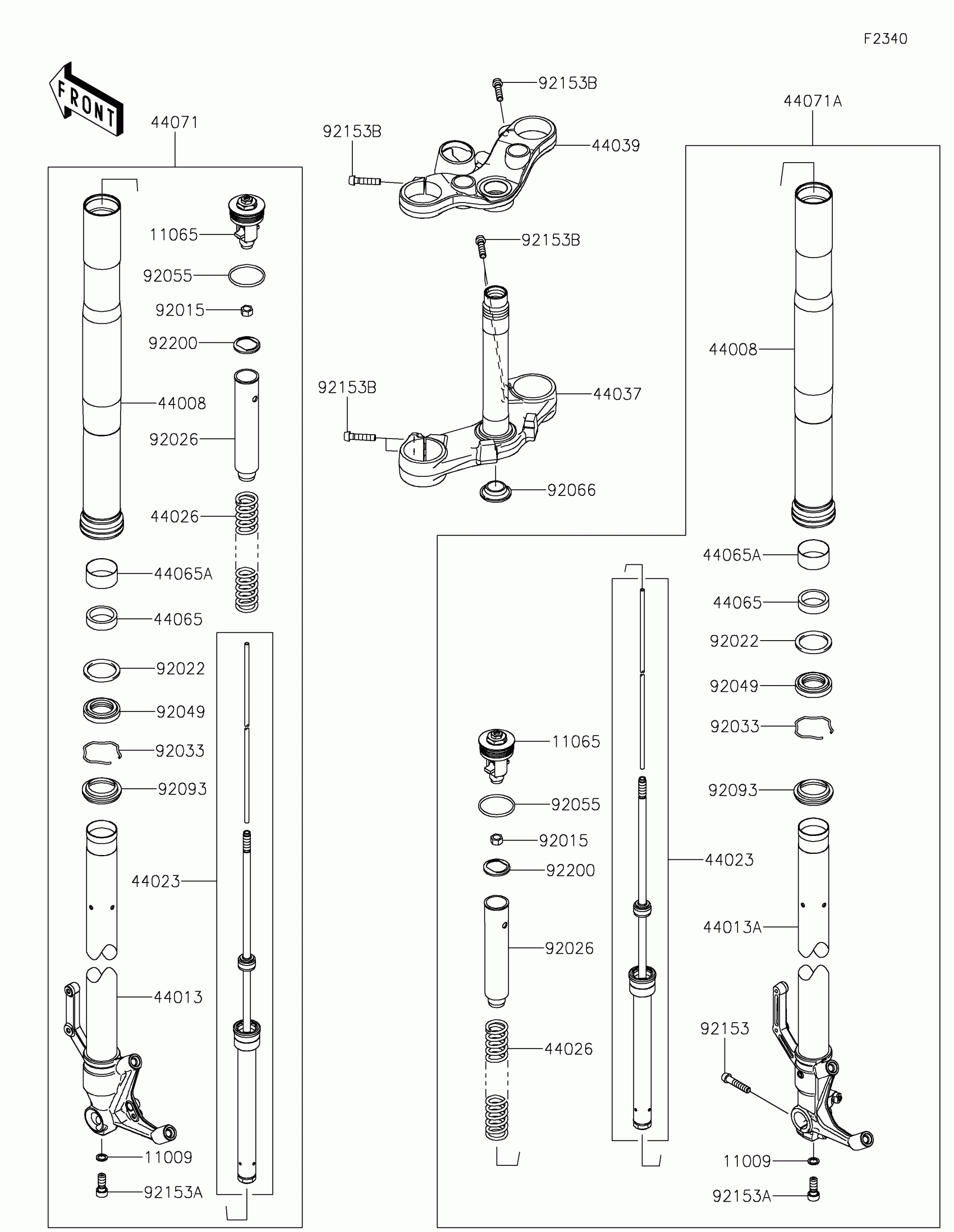

Kawasaki Z900RS Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
11065
CAP,GRAY
11065-1293-11G
$153.81
44008
PIPE-FORK OUTER,BLACK
44008-0085-499
$471.45
44013
PIPE-FORK INNER,LH
44013-0314
$472.09
44013A
PIPE-FORK INNER,RH
44013-0315
$472.09
44023
CYLINDER-SET-FORK
44023-0147
$444.85
44026
SPRING-FRONT FORK
44026-0225
$91.35
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0172-18R
$571.24
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0182-18R
$321.19
44065
BUSHING-FRONT FORK
44065-0042
$21.01
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1114
$21.57
44071
DAMPER-ASSY,FORK,LH,BLACK
44071-1290-59P
$966.26
44071A
DAMPER-ASSY,FORK,RH,BLACK
44071-1291-59P
$966.26
92015
NUT
92015-1795
$5.52
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92026
SPACER
92026-0854
$15.20
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL
92049-0073
$22.70
92055
RING-O
92055-0145
$2.55
92066
PLUG
92066-0032
$11.66
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92153A
BOLT,SOCKET,10X25
92153-0548
$5.57
92153B
BOLT,SOCKET,8X35
92153-1472
$7.37
92200
WASHER
92200-0085
$7.63
