2018 Kawasaki Z900RS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2018 Kawasaki Z900RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

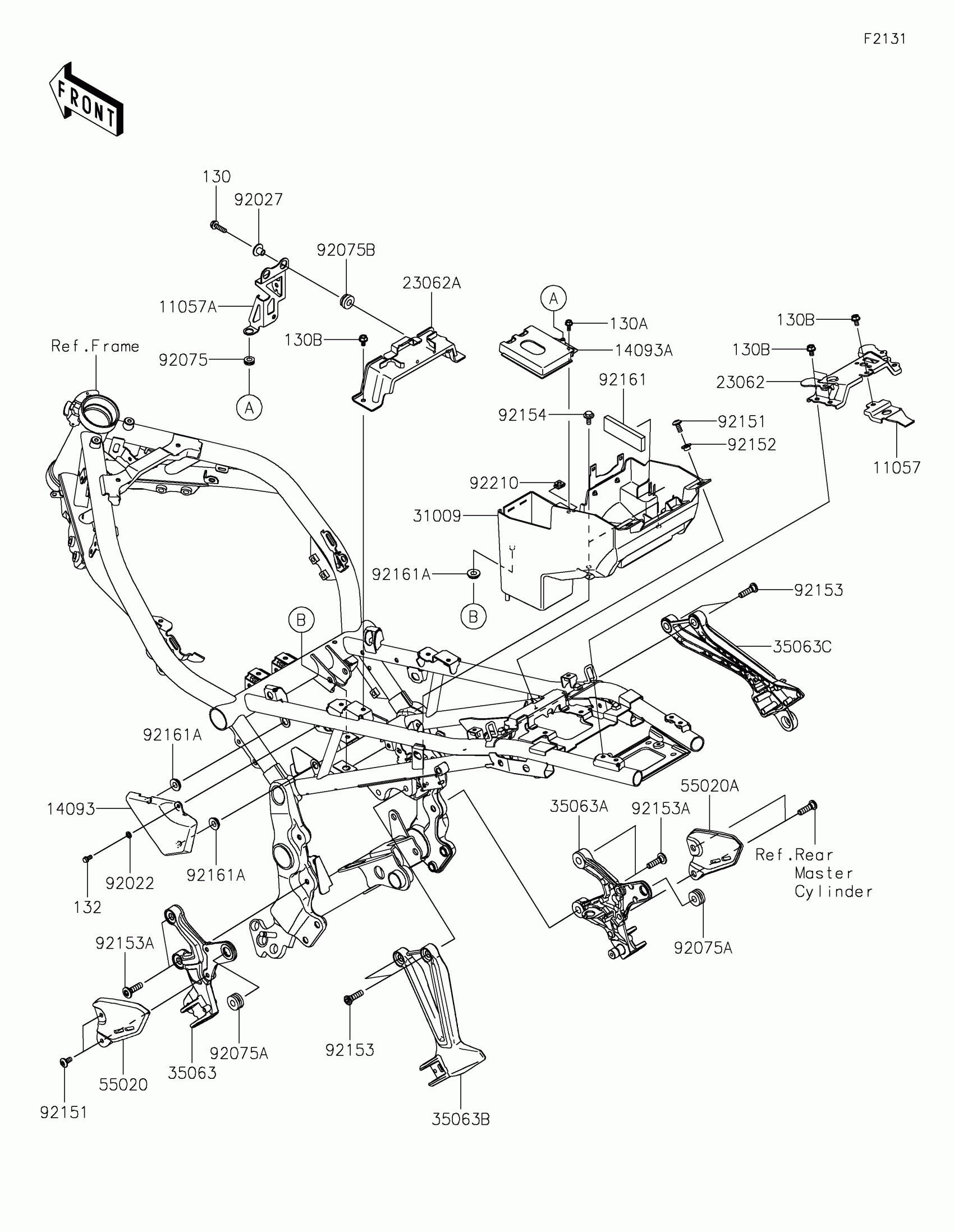

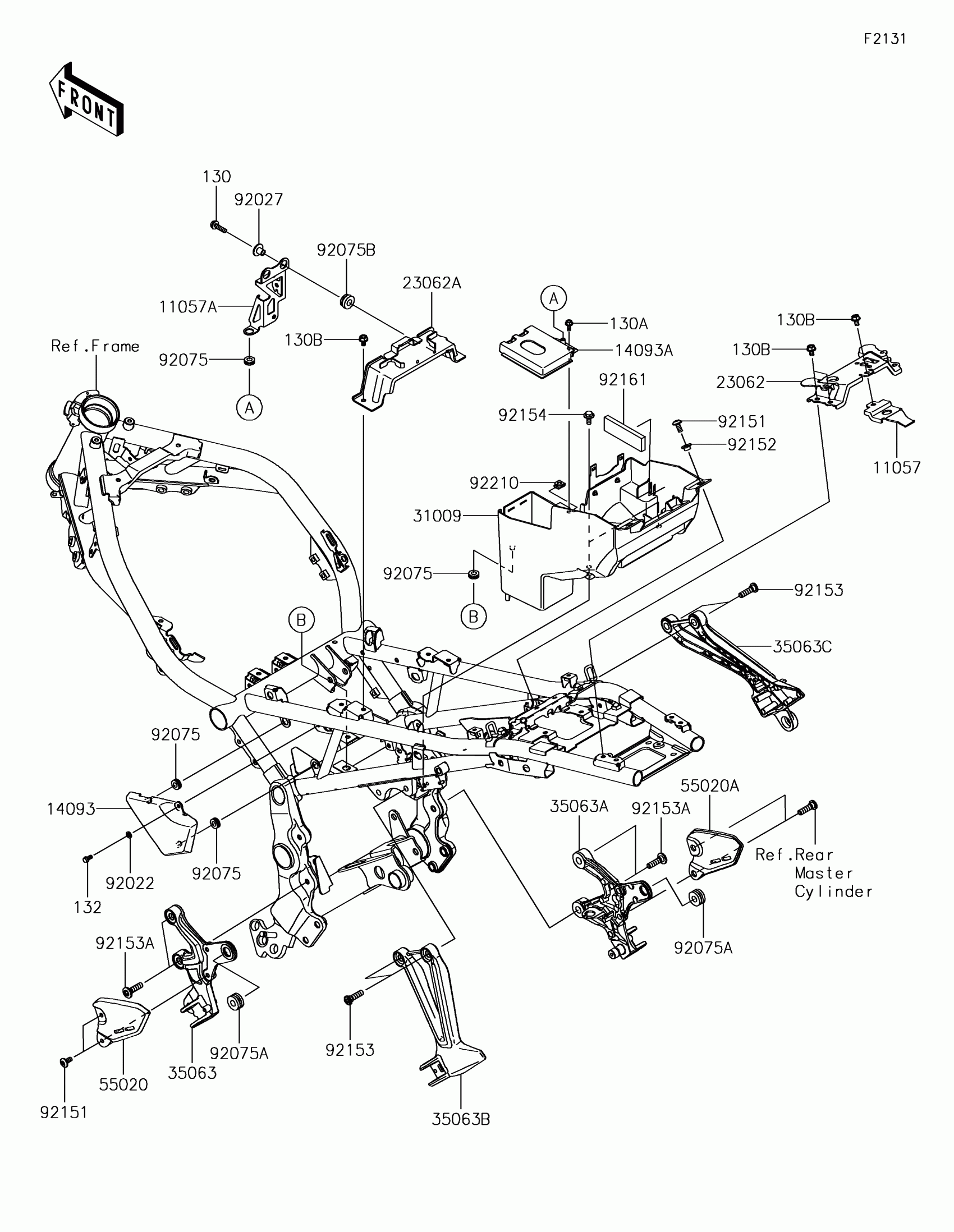

2018 Kawasaki Z900RS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,TAIL LAMP

11057-1341

1
Out of stock

11057A

BRACKET,REGULATOR

11057-1393

1
Out of stock

14093

COVER,ABS

14093-0618

1
Out of stock

14093A

COVER,CANISTER

14093-0619

1
Out of stock

23062

BRACKET-COMP,SEAT,RR

23062-0969

1
Out of stock

23062A

BRACKET-COMP,SEAT,FR

23062-0981

1
Out of stock

31009

CASE-COMP-BATTERY

31009-0007

1
Out of stock

35063

STAY,STEP,LH,F.S.BLACK

35063-1391-18R

1
Out of stock

35063A

STAY,STEP,RH,F.S.BLACK

35063-1392-18R

1
Out of stock

35063B

STAY,RR STEP,LH,F.S.BLACK

35063-1393-18R

1
Out of stock

35063C

STAY,RR STEP,RH,F.S.BLACK

35063-1394-18R

1
Out of stock

55020

GUARD,LH

55020-2178

1
Out of stock

55020A

GUARD,RH

55020-2179

1
Out of stock

92022

WASHER,6.3X10.2X1.6

92022-1588

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92075A

DAMPER,10X24X12

92075-1690

1
Out of stock

92075B

DAMPER

92075-277

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR

92152-0422

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1624

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-1630

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-2955

1
Out of stock

92161

DAMPER,25X83X8

92161-2134

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130A

BOLT-FLANGED,5X12

130BC0512

1
Out of stock

130B

BOLT-FLANGED,6X10

130CA0610

1
Out of stock

132

1

$1.47

In stock
