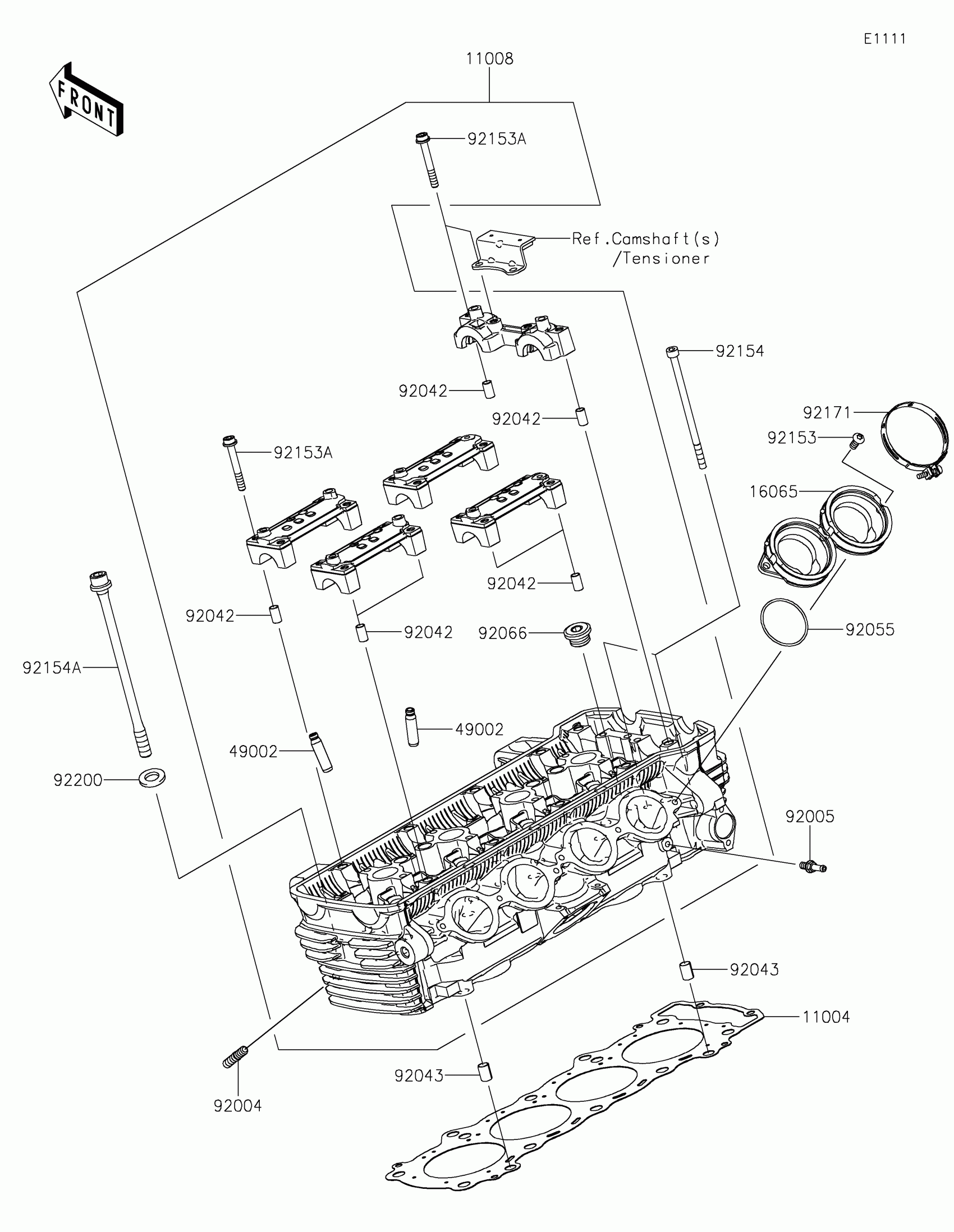

Kawasaki Z900RS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0769

$112.12

11008

HEAD-COMP-CYLINDER

11008-0999

$2,721.51

16065

HOLDER-CARBURETOR

16065-0132

$85.19

49002

GUIDE-VALVE

49002-0009

$34.18

92004

STUD

92004-0050

$3.62

92005

FITTING

92005-0826

$10.21

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,42X1.9

92055-1536

$2.78

92066

PLUG,18X10

92066-0832

$12.90

92153

BOLT,TORX,6X14

92153-0406

$2.80

92153A

BOLT,SOCKET,6X45

92153-0656

$2.55

92154

BOLT,SOCKET,6X115

92154-0205

$8.08

92154A

BOLT,FLANGED,10X165

92154-2638

$18.89

92171

CLAMP,60MM

92171-0729

$18.57

92200

WASHER,10.2X18.4X1.8

92200-1691

$4.20
