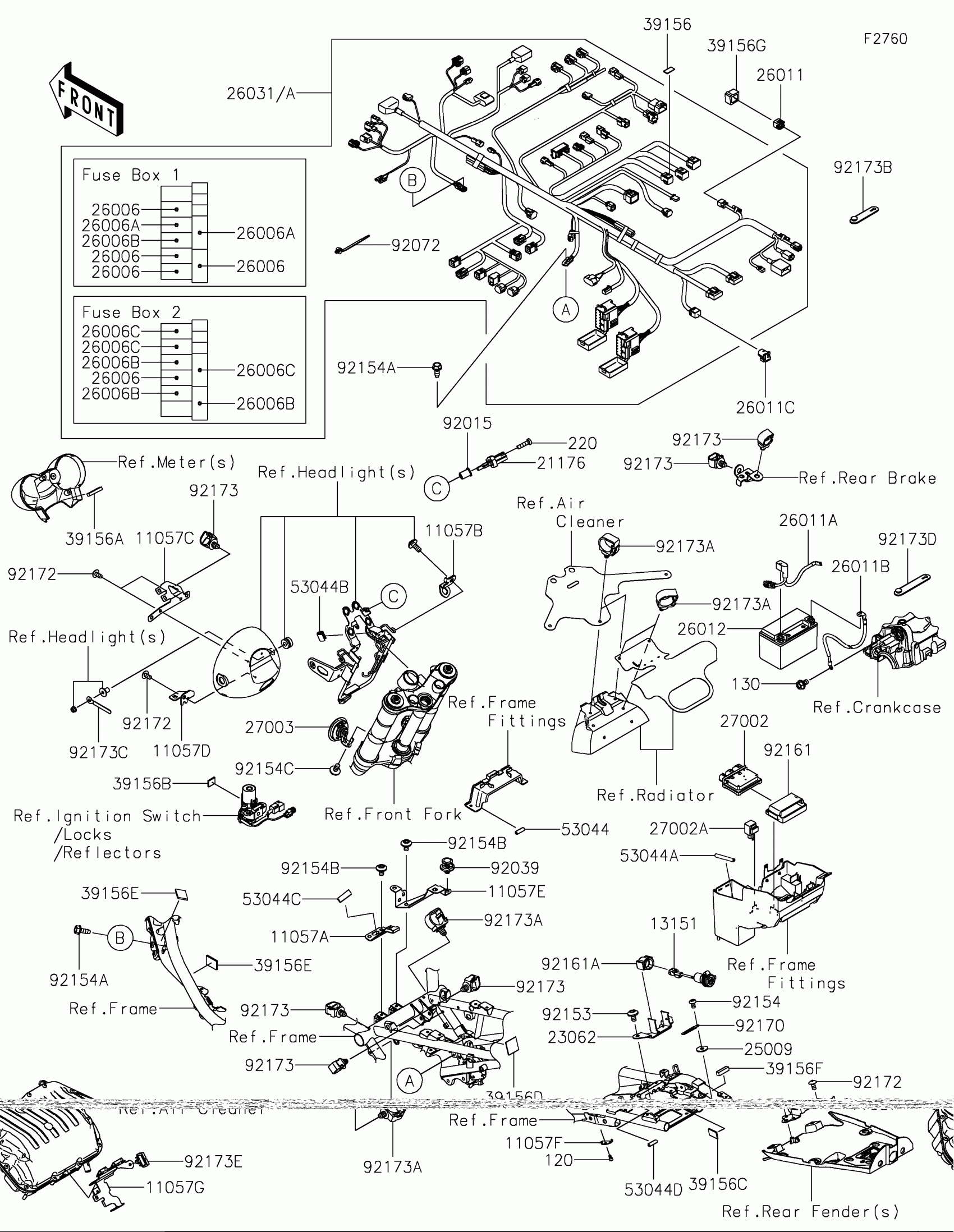

Kawasaki Z900RS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAIN HARNESS

11057-0915

$11.42

11057A

BRACKET,MAGNETIC SW.

11057-0916

$6.90

11057B

BRACKET,FUEL PUMP CONNECTOR

11057-0917

$6.63

11057C

BRACKET,AIR CLEANER

11057-0918

$16.23

11057D

BRACKET,METER HARNESS

11057-0919

$5.11

11057E

BRACKET,HEAD LAMP COVER,UPP

11057-1322

$9.49

11057F

BRACKET,HEAD LAMP COVER,LWR

11057-1323

$3.74

13151

SWITCH-COMP,DC OUTLET

13151-0580

$141.24

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP,DC SOCKET

23062-1000

$12.58

25009

WASHER,5.2X16X1.2

25009-004

$3.65

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,BATTERY(+)

26011-0971

$80.25

26011B

WIRE-LEAD,BATTERY(-)

26011-0972

$83.05

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

Unavailable

26031A

HARNESS,MAIN

26031-2450

$755.61

27002

RELAY-ASSY,BOX

27002-0025

$143.14

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0127

$65.96

39156

PAD,10X20X1

39156-2241

$0.98

39156A

PAD,8X50X10

39156-2283

$1.52

39156B

PAD,20X25X4

39156-2284

$1.27

39156C

PAD,20X40X4

39156-2285

$1.52

39156D

PAD,17X28X1

39156-2287

$1.52

39156E

PAD,20X20X1

39156-2288

$0.98

39156F

PAD,30X40X4

39156-2348

$1.81

39156G

PAD,DIAG CONNECTOR

39156-2349

$5.83

39156H

PAD,10X40X10

39156-2350

$1.27

53044

TRIM,L=30

53044-0001

$2.80

53044A

TRIM

53044-0018

$4.65

53044B

TRIM

53044-0577

$2.46

53044C

TRIM,9X6.5X20

53044-0596

$4.10

53044D

TRIM,9X6.5X30

53044-0632

$4.45

56030

LABEL,FUSE BOX1

56030-1339

$3.23

56030A

LABEL,FUSE BOX2

56030-1340

$3.23

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92153

BOLT,SOCKET,6X10

92153-1628

$1.78

92154

BOLT

92154-0314

$1.19

92154A

BOLT,FLANGED,6X16

92154-0551

$1.63

92154B

BOLT,SOCKET,6X10

92154-0774

$1.63

92154C

BOLT,SOCKET,6X12

92154-2706

$1.78

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,DC SOCKET

92161-2069

$11.30

92170

CLAMP

92170-1514

$4.31

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP,RUBBER PLATE

92173-1229

$3.94

92173C

CLAMP

92173-1306

$1.19

92173D

CLAMP

92173-1526

$3.94

92173E

CLAMP,SENSOR WIRE

92173-1802

$1.42

130

BOLT-FLANGED,6X10

130BA0610

$1.20

220

SCREW-PAN-CROS,5X18

220AB0518

$3.69
