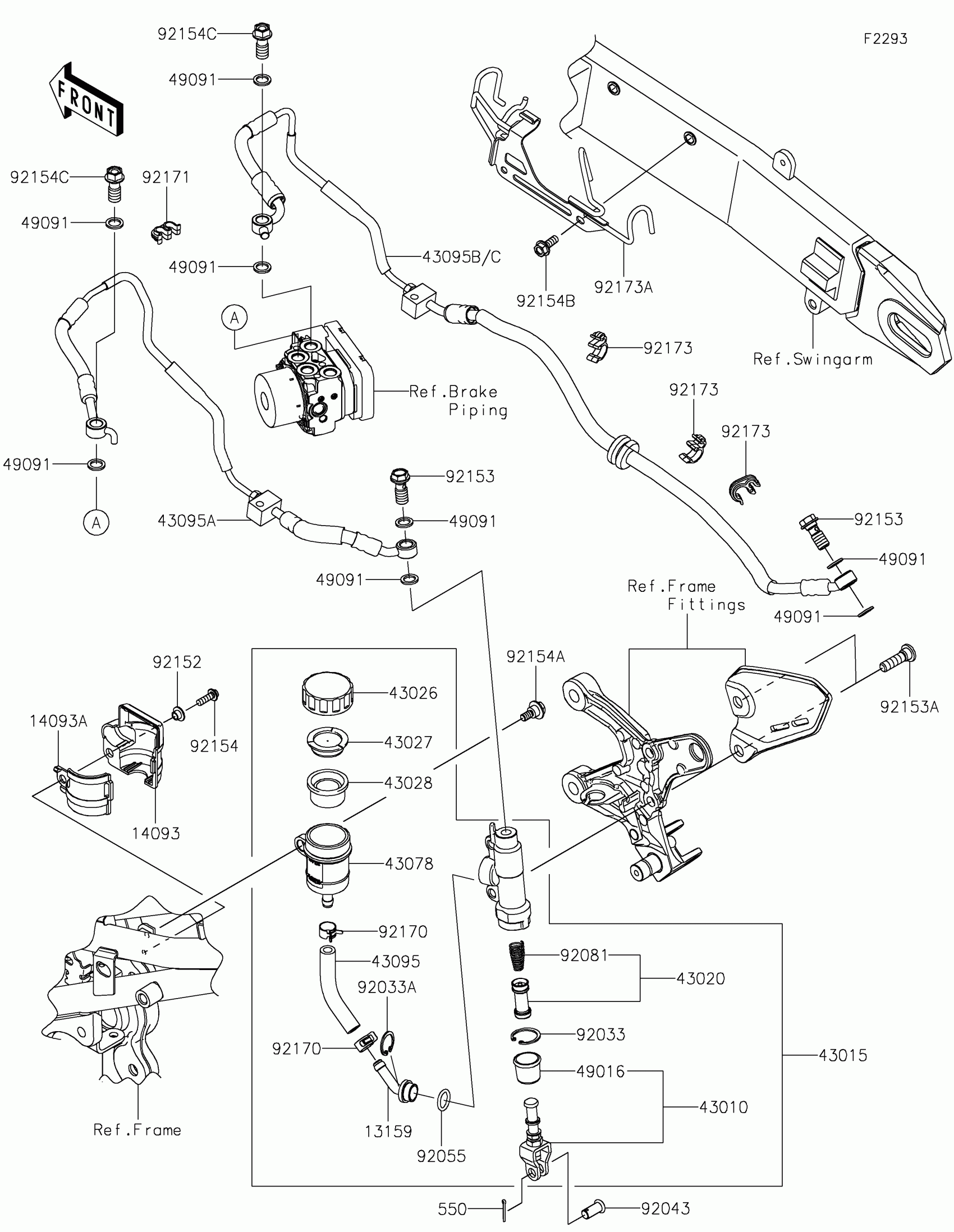

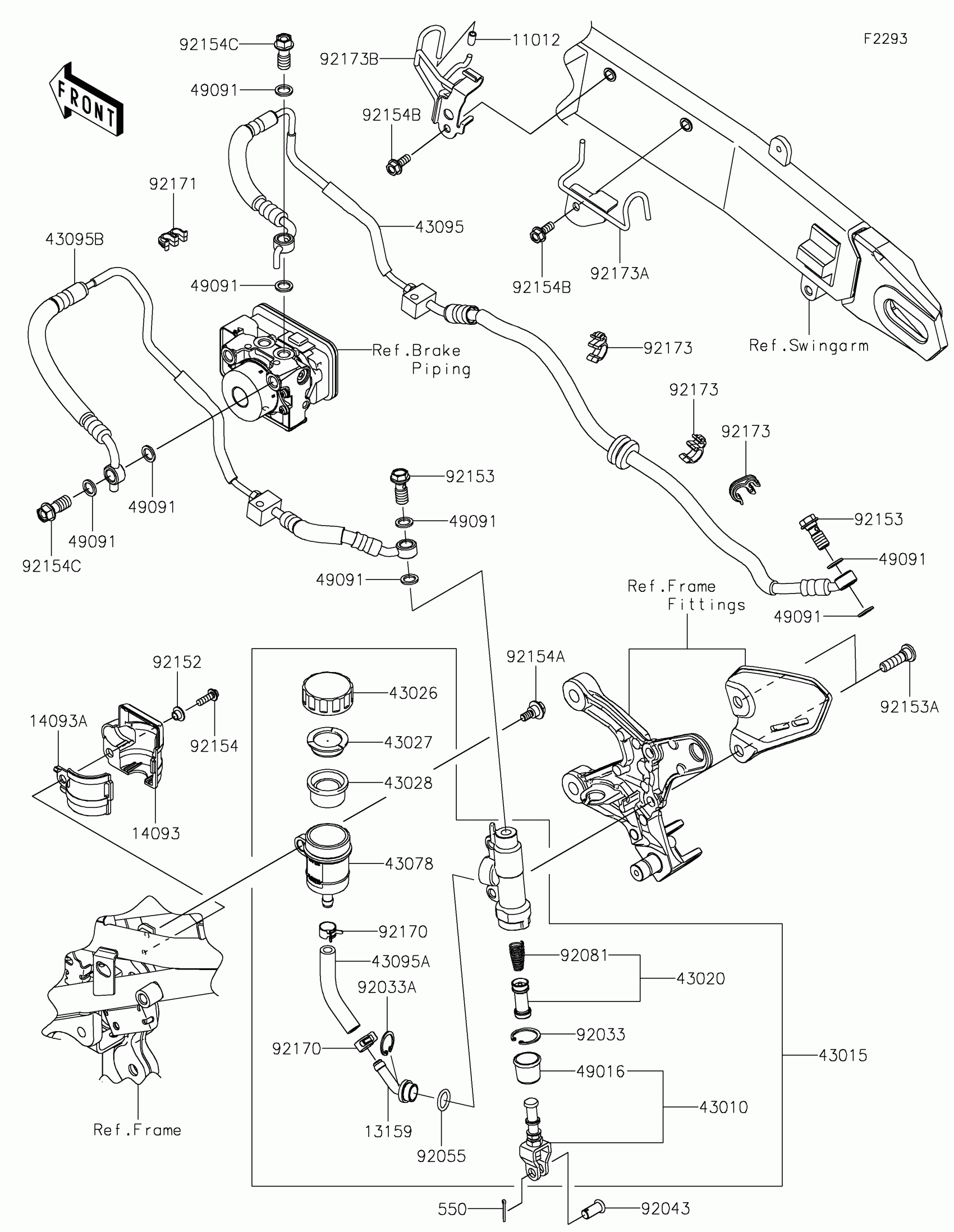

Kawasaki Z900RS CAFE Rear Master Cylinder Diagram

#

Description
Price

11012

CAP

11012-1438

$4.39

13159

CONNECTOR

13159-0008

$10.59

14093

COVER,RR RESERVOIR,OUTER

14093-0653

$7.27

14093A

COVER,RR RESERVOIR,INNER

14093-0654

$7.27

43010

ROD-ASSY-BRAKE

43010-0020

$29.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0664

$419.59

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1481

$217.39

43095A

HOSE-BRAKE

43095-1496

$3.24

43095B

HOSE-BRAKE,RR M/CYL.-ABS UNIT

43095-1517

$184.22

49016

COVER-SEAL,BRAKE PISTON

49016-1103

Unavailable

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92152

COLLAR,5.3X7.3X5.3

92152-2190

$2.75

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,FLANGED,6X16

92154-0385

$3.59

92154B

BOLT,FLANGED,6X16

92154-0899

$1.66

92154C

BOLT,BANJO,10X22

92154-1138

$7.31

92170

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP

92171-0817

$4.14

92173

CLAMP,HOSE & SENSOR

92173-1796

$5.61

92173A

CLAMP,SWA,RR

92173-1801

$11.24

92173B

CLAMP,SWA,FR

92173-1903

$19.47
