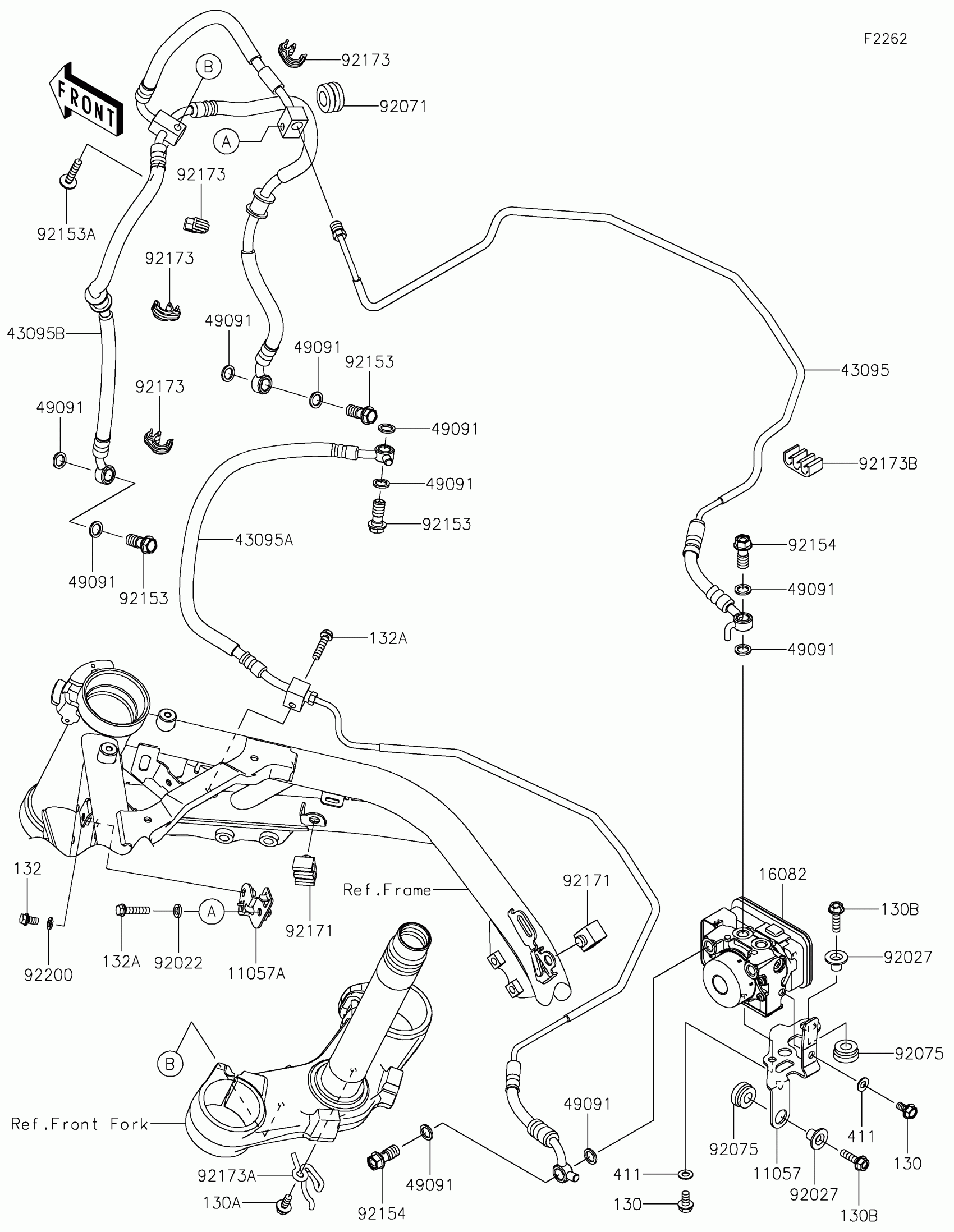

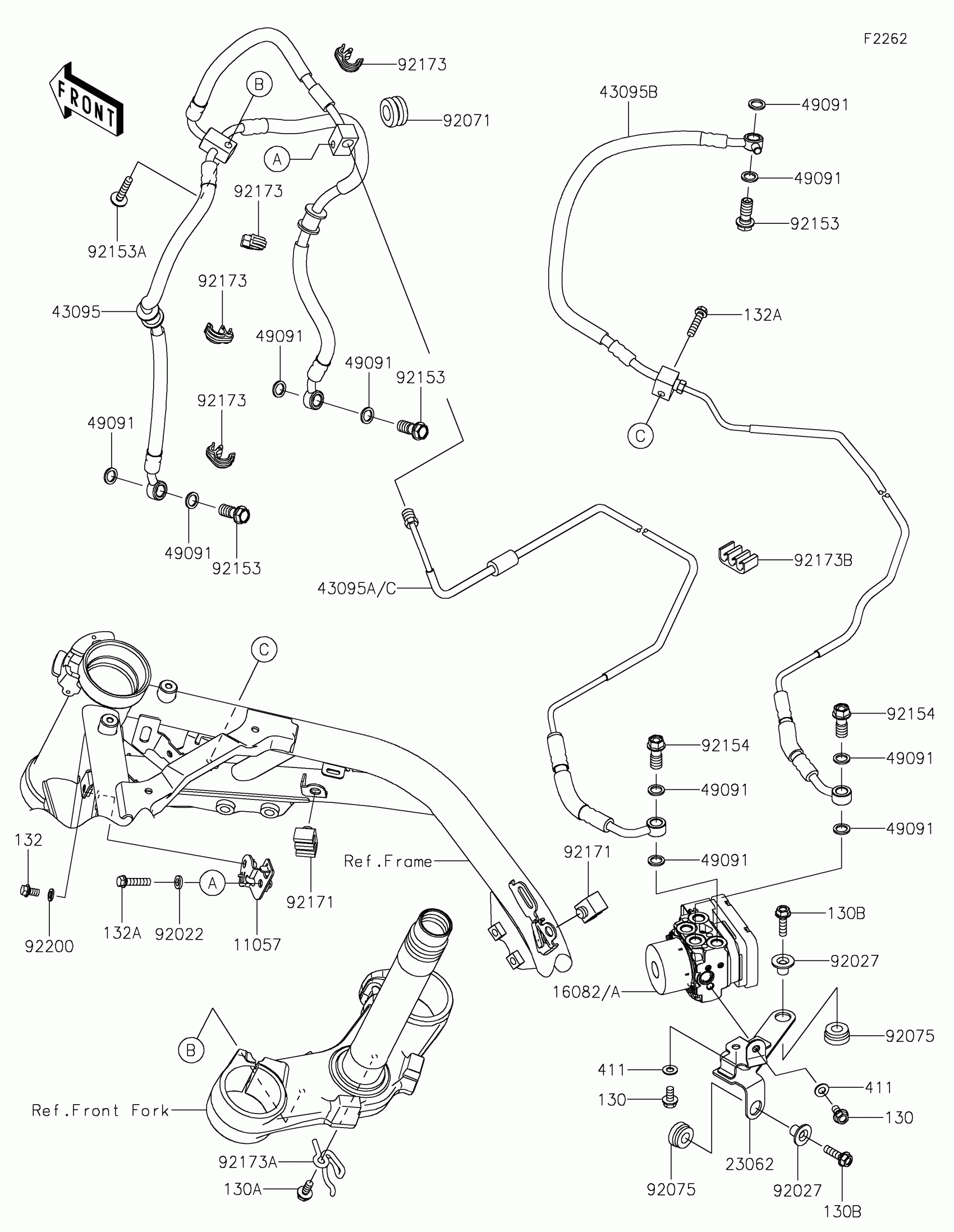

Find the part on the Brake Piping diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Z900RS Cafe Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-1319

1
Out of stock

11057A

BRACKET,HEAD PIPE,LH

11057-1397

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130B

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$1.47

In stock

132A

1

$2.29

In stock

16082

PUMP-ASSY-OIL,ABS

16082-0787

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-FITTING

43095-1479

1
Out of stock

43095A

HOSE-BRAKE,FR M/CYL.-ABS UNIT

43095-1533

1
Out of stock

43095B

HOSE-BRAKE,FITTING-FR CALIPER

43095-1583

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X11.5X2

92022-1506

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92071

GROMMET,12.2X26X16

92071-0785

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,SOCKET,6X30

92153-1528

1
Out of stock

92154

BOLT,BANJO,10X22

92154-1138

1
Out of stock

92171

CLAMP

92171-0818

1
Out of stock

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

92173A

CLAMP,UNDER BKT,RH

92173-1793

1
Out of stock

92173B

CLAMP,3 PIPE

92173-1797

1
Out of stock

92200

WASHER,6.5X11X1.2

92200-1964

1
Out of stock
