2020 Kawasaki Z900RS Cafe Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

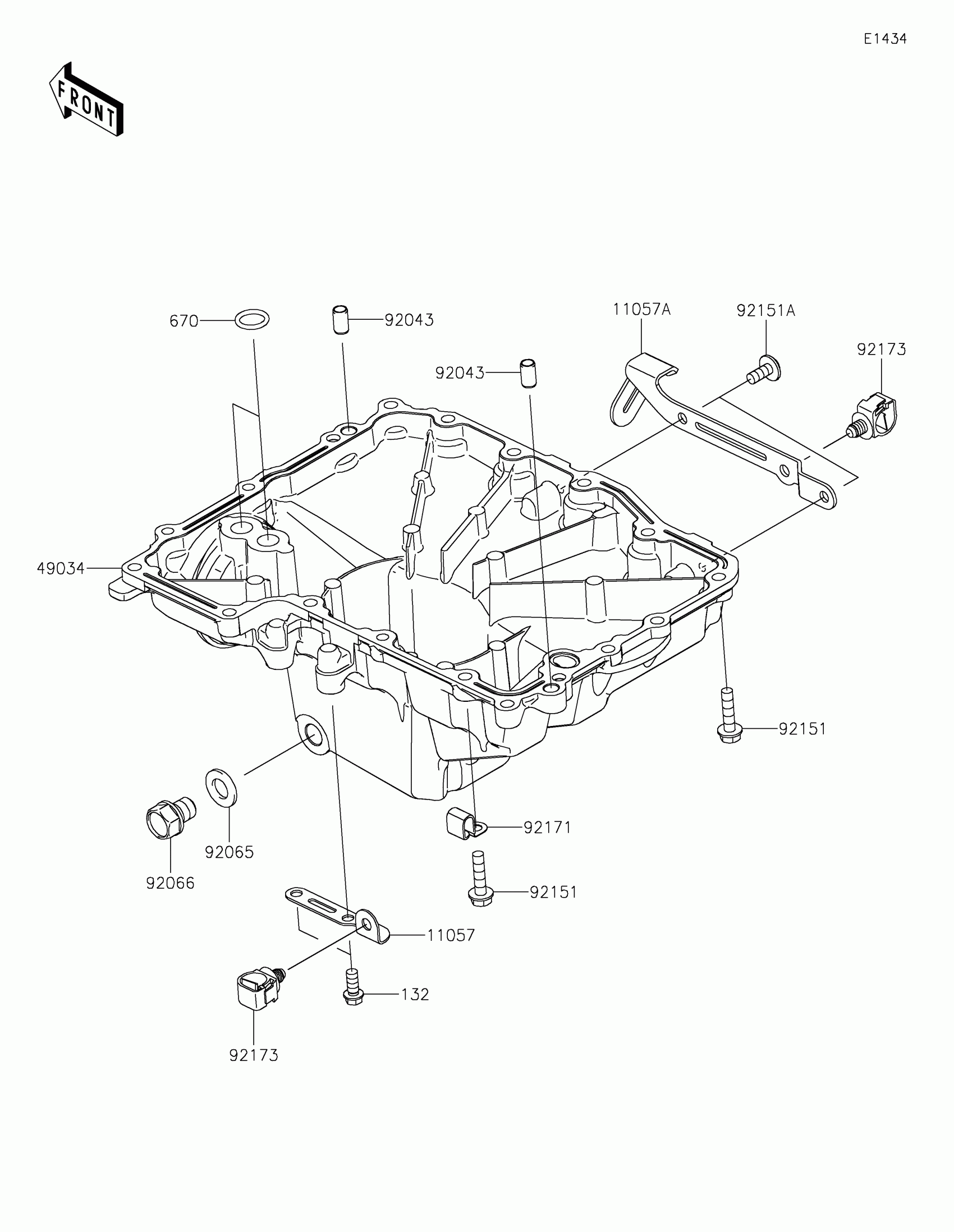

2020 Kawasaki Z900RS Cafe Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1316

1
Out of stock

11057A

BRACKET,OXYGEN SENSOR

11057-1595

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BC0614

1
Out of stock

49034

PAN-OIL

49034-0049

1
Out of stock

670

O RING,14MM

670D2014

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,12X15

92066-0079

1
Out of stock

92151

BOLT,FLANGED,6X25

92151-1225

1
Out of stock

92151A

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92171

CLAMP

92171-0534

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock
