2020 Kawasaki Z900RS Cafe Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

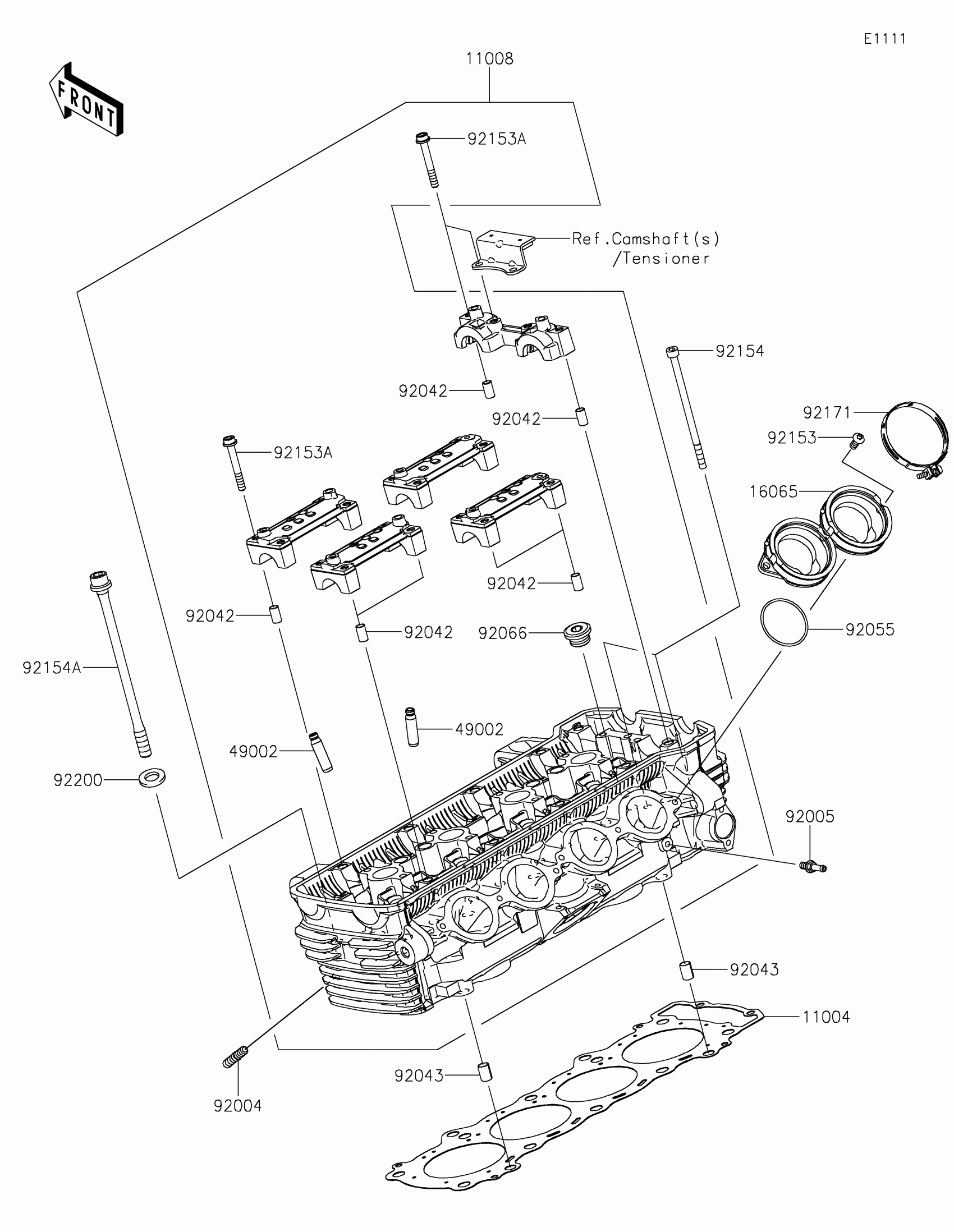

2020 Kawasaki Z900RS Cafe Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0769

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0932

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0132

1
Out of stock

49002

GUIDE-VALVE

49002-0009

1
Out of stock

92004

STUD

92004-0050

1
Out of stock

92005

FITTING

92005-0826

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,42X1.9

92055-1536

1
Out of stock

92066

PLUG,18X10

92066-0832

1
Out of stock

92153

BOLT,TORX,6X14

92153-0406

1
Out of stock

92153A

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,SOCKET,6X115

92154-0205

1
Out of stock

92154A

BOLT,FLANGED,10X165

92154-2638

1
Out of stock

92171

CLAMP,60MM

92171-0729

1
Out of stock

92200

WASHER,10.2X18.4X1.8

92200-1691

1
Out of stock
