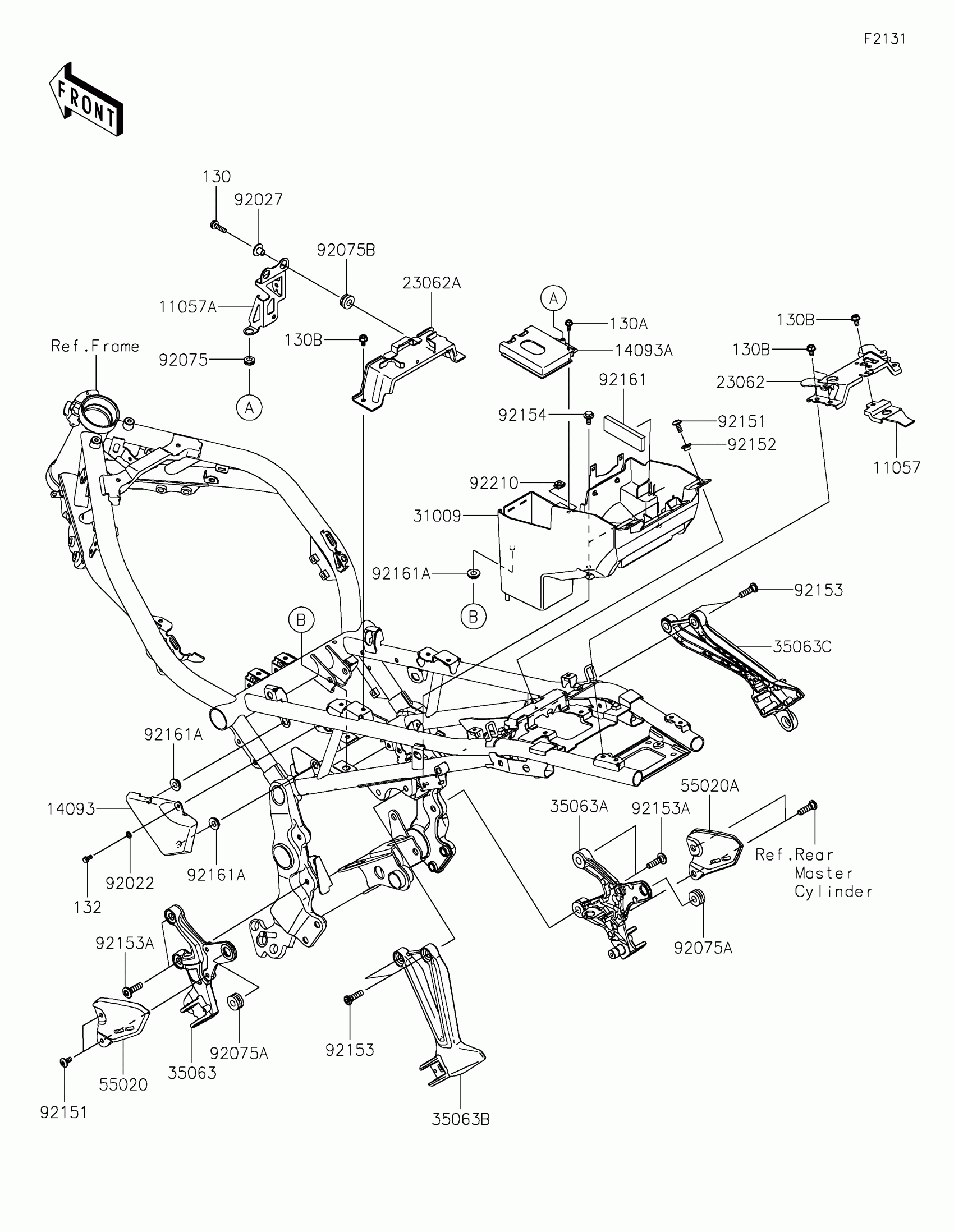

Kawasaki Z900RS CAFE Frame Fittings Diagram

#

Description
Price

11057

BRACKET,TAIL LAMP

11057-1341

$12.07

11057A

BRACKET,REGULATOR

11057-1393

$14.11

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,5X12

130BC0512

$1.71

130B

BOLT-FLANGED,6X10

130CA0610

$1.69

132

BOLT-FLANGED-SMALL,5X10

132BA0510

$1.71

14093

COVER,ABS

14093-0618

$15.34

14093A

COVER,CANISTER

14093-0619

$10.58

23062

BRACKET-COMP,SEAT,RR

23062-0969

$71.91

23062A

BRACKET-COMP,SEAT,FR

23062-0981

$69.20

31009

CASE-COMP-BATTERY

31009-0007

$72.29

35063

STAY,STEP,LH,F.S.BLACK

35063-1391-18R

$134.79

35063A

STAY,STEP,RH,F.S.BLACK

35063-1392-18R

$134.79

35063B

STAY,RR STEP,LH,F.S.BLACK

35063-1393-18R

$110.63

35063C

STAY,RR STEP,RH,F.S.BLACK

35063-1394-18R

$110.63

55020

GUARD,LH

55020-2178

$39.54

55020A

GUARD,RH

55020-2179

$39.54

92022

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-161

$4.69

92075A

DAMPER,10X24X12

92075-1690

$5.00

92075B

DAMPER

92075-277

$2.84

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-0422

Unavailable

92153

BOLT,SOCKET,8X30

92153-1624

$3.90

92153A

BOLT,SOCKET,8X30

92153-1630

$2.61

92154

BOLT,FLANGED,6X16

92154-2955

$1.69

92161

DAMPER,25X83X8

92161-2134

$2.44

92210

NUT

92210-0571

$3.52
