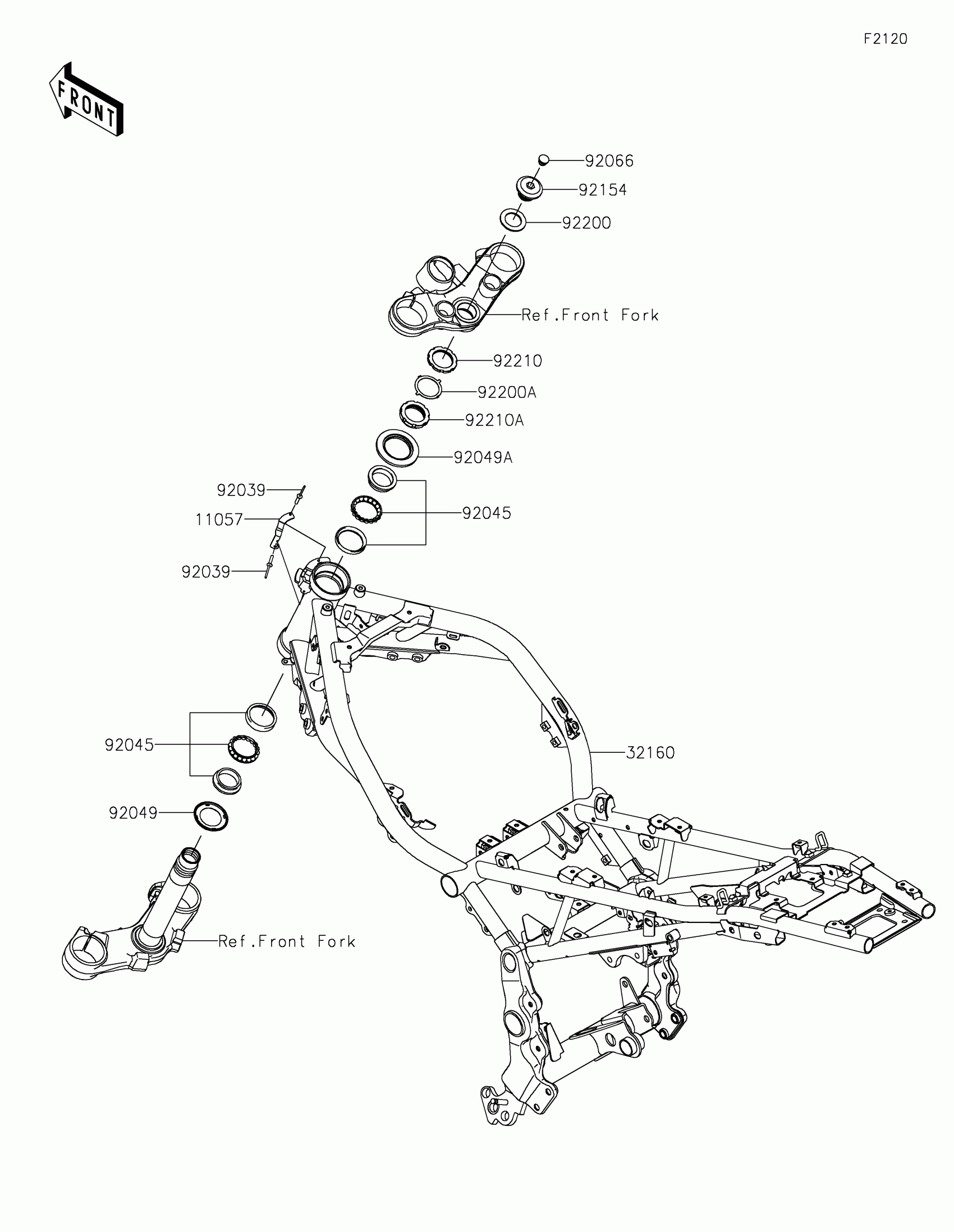

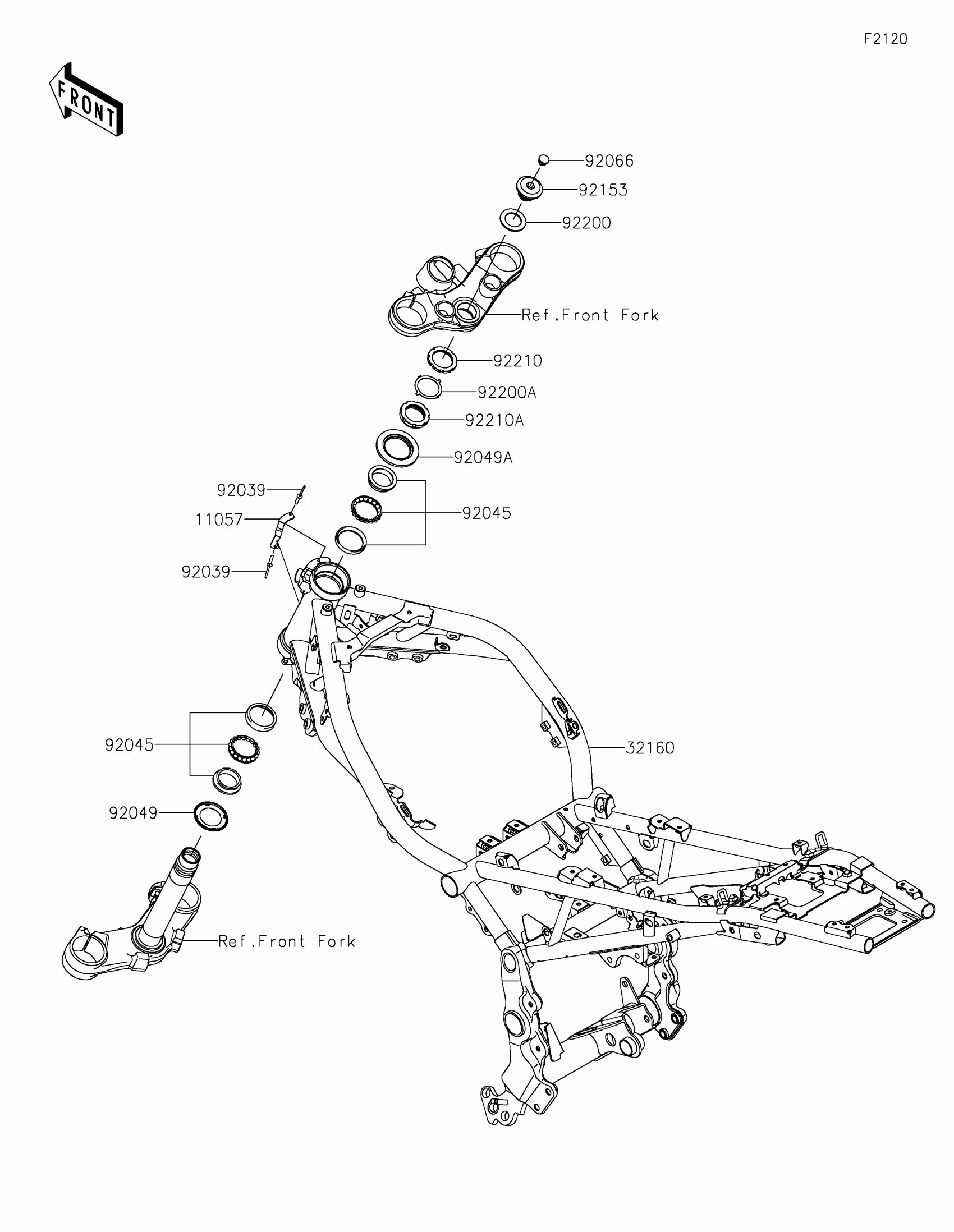

Kawasaki Z900RS CAFE Frame Diagram

Description

Price

11057

BRACKET

11057-1310

$7.43

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-1916-18R

$1,985.07

92039

RIVET

92039-0705

$0.95

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,MX043N2

92049-1483

$20.39

92066

PLUG

92066-0981

$1.47

92154

BOLT,26MM

92154-4351

$28.75

92200

WASHER,27X42X2.3

92200-0081

$3.74

92200A

WASHER

92200-0281

$3.90

92210

NUT,STEERING STEM 35MM

92210-0062

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0077

$18.37
