Description

Price

11065

CAP,27.4MM

11065-0987

$9.36

11065A

CAP,35.1MM

11065-0988

$9.36

14093

COVER,FRAME,LH

14093-0620

$17.83

14093A

COVER,FRAME,RH

14093-0621

$17.83

32190

BRACKET-ENGINE,LH,F.S.BLACK

32190-0744-18R

$155.74

32190A

BRACKET-ENGINE,RH,F.S.BLACK

32190-0745-18R

$189.68

32190B

BRACKET-ENGINE,CYL.,LH,F.S.BLK

32190-0757-18R

$93.58

32190C

BRACKET-ENGINE,CYL.,RH,F.S.BLK

32190-0758-18R

$93.58

32190D

BRACKET-ENGINE,HEAD,LH,F.S.BLK

32190-0759-18R

$5.14

32190E

BRACKET-ENGINE,HEAD,RH,F.S.BLK

32190-0760-18R

$4.43

39156

PAD,50X50X2

39156-2235

$1.54

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92039

RIVET

92039-0068

$2.09

92075

DAMPER

92075-1067

$3.57

92151

BOLT,FLANGED,10X190

92151-1915

$12.45

92152

COLLAR

92152-2403

$43.03

92153

BOLT,SOCKET,8X40

92153-0517

$2.12

92153A

BOLT,FLANGED,10X30

92153-0801

$3.16

92153B

BOLT,FLANGED,10X170

92153-1428

$12.37

92154

BOLT,SOCKET,5X12

92154-0917

$3.59

92154A

BOLT,FLANGED,10X40

92154-2743

$7.32

92154B

BOLT,SOCKET,8X14

92154-2745

$2.23

92154C

BOLT,SOCKET,8X22

92154-2746

$3.29

92154D

BOLT,FLANGED,10X25

92154-2747

$5.56

92154E

BOLT,FLANGED,8X45

92154-3733

$2.08

92161

DAMPER,6X20X7.5

92161-1991

$3.56

92200

WASHER,8.5X18X2.3

92200-1213

$1.85

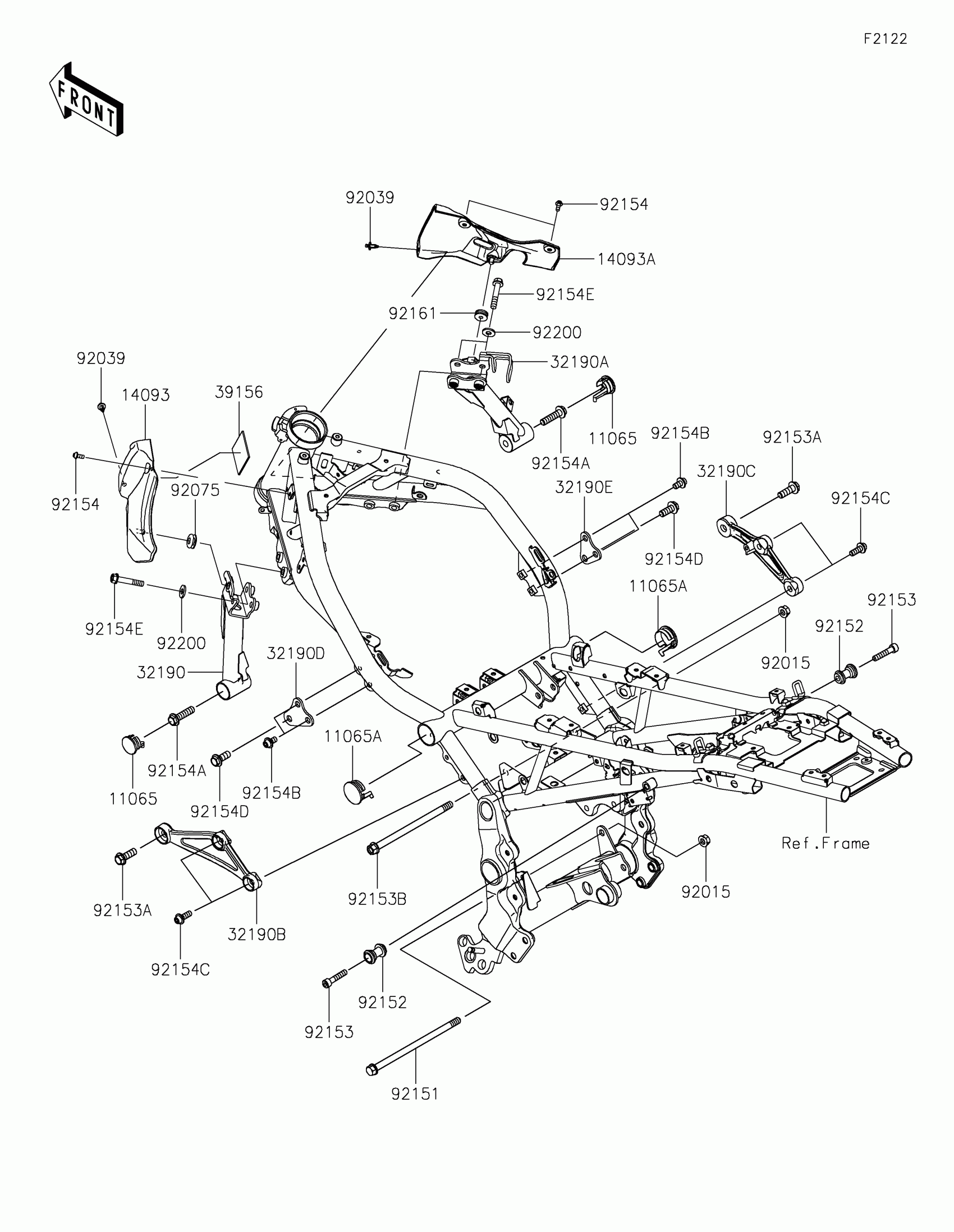

Kawasaki Z900RS CAFE Engine Mount Diagram
