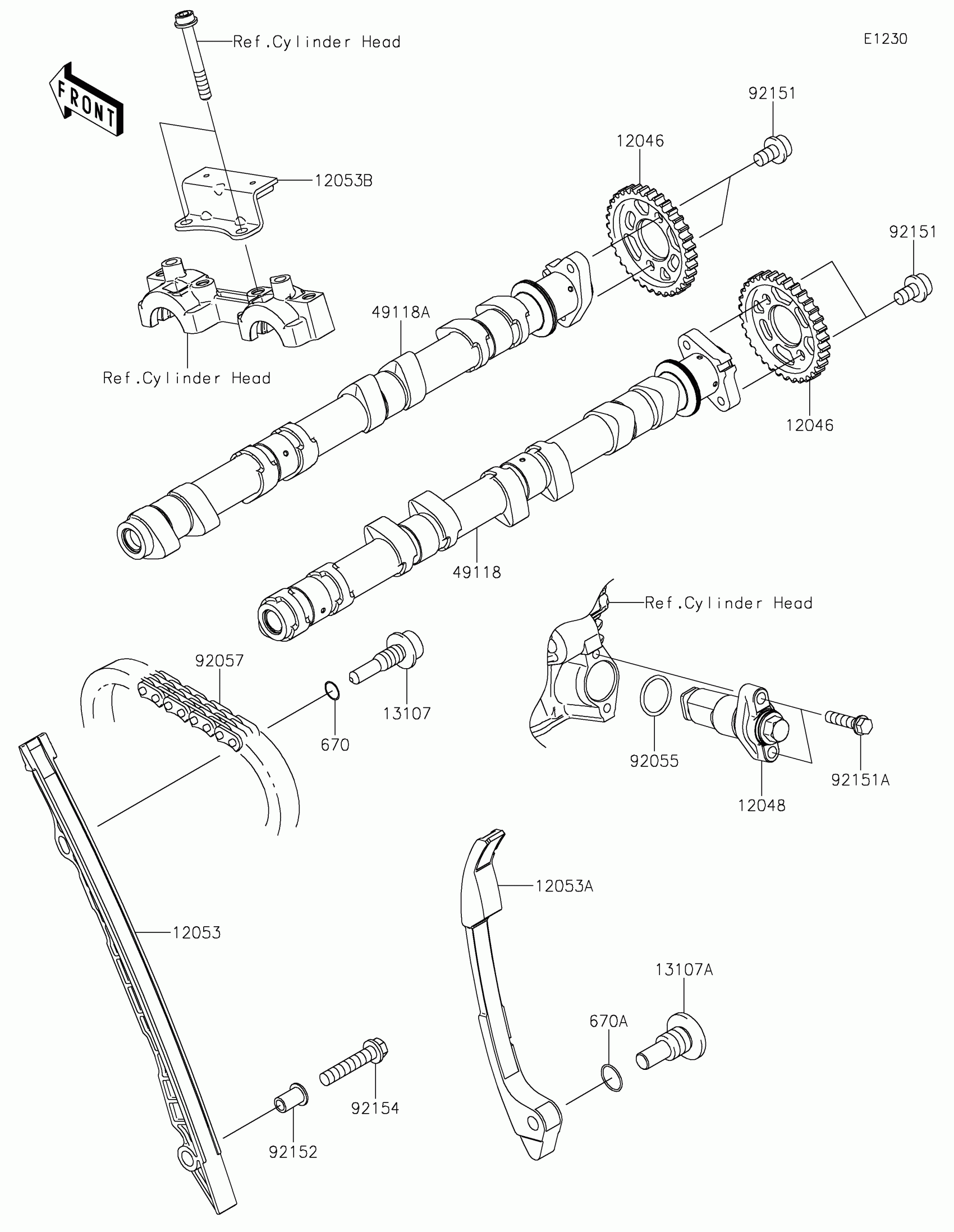

Kawasaki Z900RS CAFE Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAMSHAFT,34T

12046-0564

Unavailable

12048

TENSIONER-ASSY

12048-0080

$138.99

12053

GUIDE-CHAIN,FR

12053-0161

$44.41

12053A

GUIDE-CHAIN,RR

12053-0162

$69.24

12053B

GUIDE-CHAIN,UPP

12053-0163

$38.06

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

13107A

SHAFT

13107-1376

$8.68

49118

CAMSHAFT-COMP,INTAKE

49118-0910

$440.08

49118A

CAMSHAFT-COMP,EXHAUST

49118-0920

$440.08

670

O RING,9MM

670D1509

$4.69

670A

O RING,14MM

670D2014

$5.52

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,98XRH2015-126M

92057-0202

$110.12

92151

BOLT,SOCKET,6X10

92151-1829

$2.80

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-1167

$6.00

92154

BOLT,FLANGED,6X30

92154-1942

$2.92
