Description

Price

11010

FILTER-ASSY-AIR

11010-0952

$333.21

11013

ELEMENT-AIR FILTER

11013-0768

$60.34

11061

GASKET,CASE

11061-1263

$9.74

11061A

GASKET,ELEMENT

11061-1264

$6.89

13045

RECEIVER-OIL

13045-1057

$9.82

14073

DUCT,#1,#4

14073-0941

$41.06

14073A

DUCT,#2,#3

14073-0942

$41.06

16126

VALVE,AIR SWITCHING

16126-0745

$189.89

49016

COVER-SEAL,WATERPROOF

49016-0652

$22.09

49016A

COVER-SEAL

49016-0653

$13.88

92037

CLAMP

92037-1712

$5.00

92039

RIVET

92039-0023

$2.97

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92170

CLAMP

92170-1060

$8.10

92172

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-2298

$23.10

92190

TUBE,6X9X300

92190-1253

$5.54

92192

TUBE,HEAD ASV

92192-0843

$2.76

92192A

TUBE,BLOWBY

92192-1692

$26.67

92192B

TUBE,ASWV-A/C

92192-1785

$17.40

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X25

130BA0625

$1.20

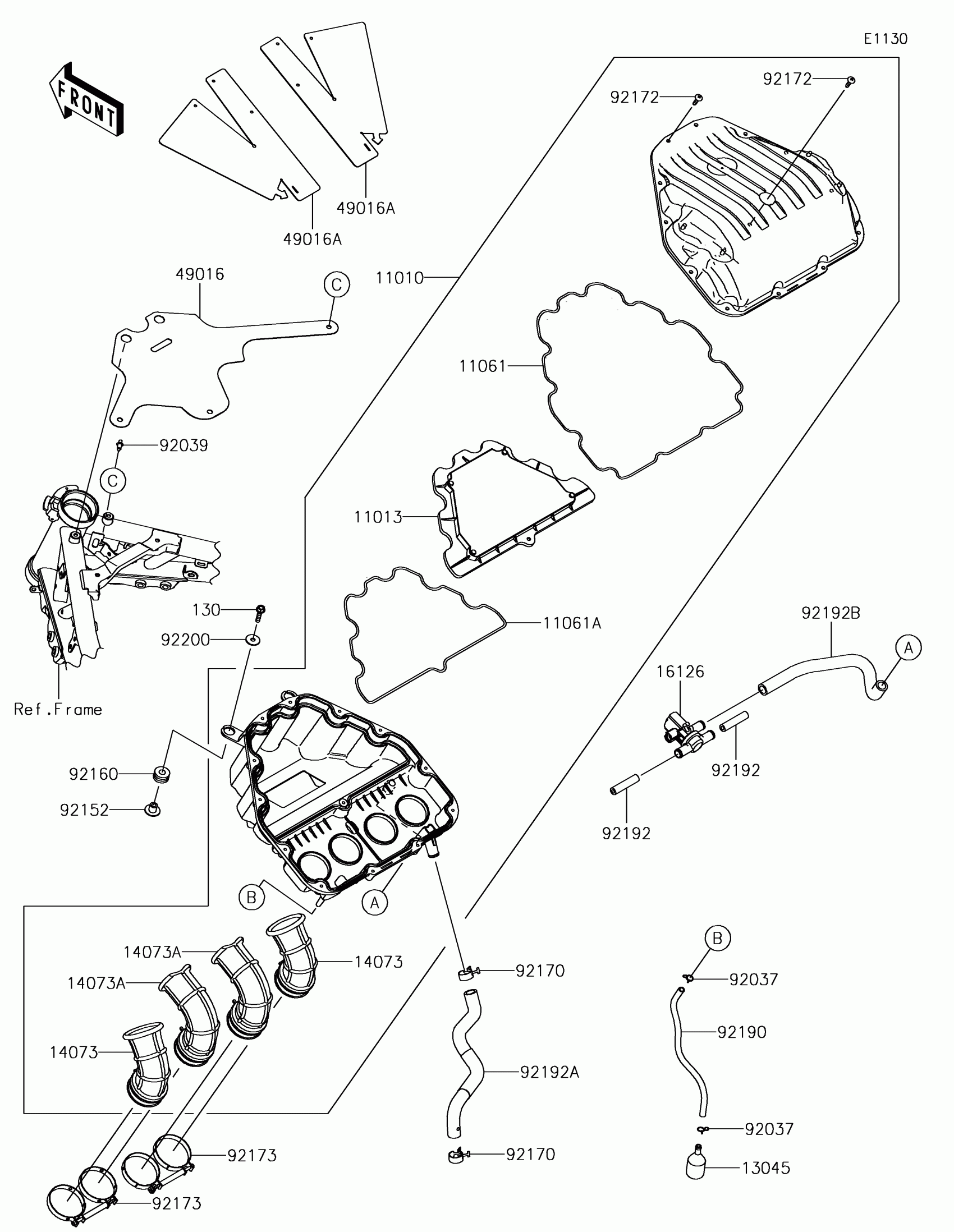

Kawasaki Z900RS Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

GASKET,CASE

GASKET,ELEMENT

RECEIVER-OIL

DUCT,#1,#4

DUCT,#2,#3

VALVE,AIR SWITCHING

COVER-SEAL,WATERPROOF

COVER-SEAL

CLAMP

RIVET

COLLAR,6.5X10.5X13.1

DAMPER

CLAMP

SCREW,TAPPING,5X20

CLAMP

TUBE,6X9X300

TUBE,HEAD ASV

TUBE,BLOWBY

TUBE,ASWV-A/C

WASHER,6.5X22X1.6

BOLT-FLANGED,6X25
