Rear Master Cylinder

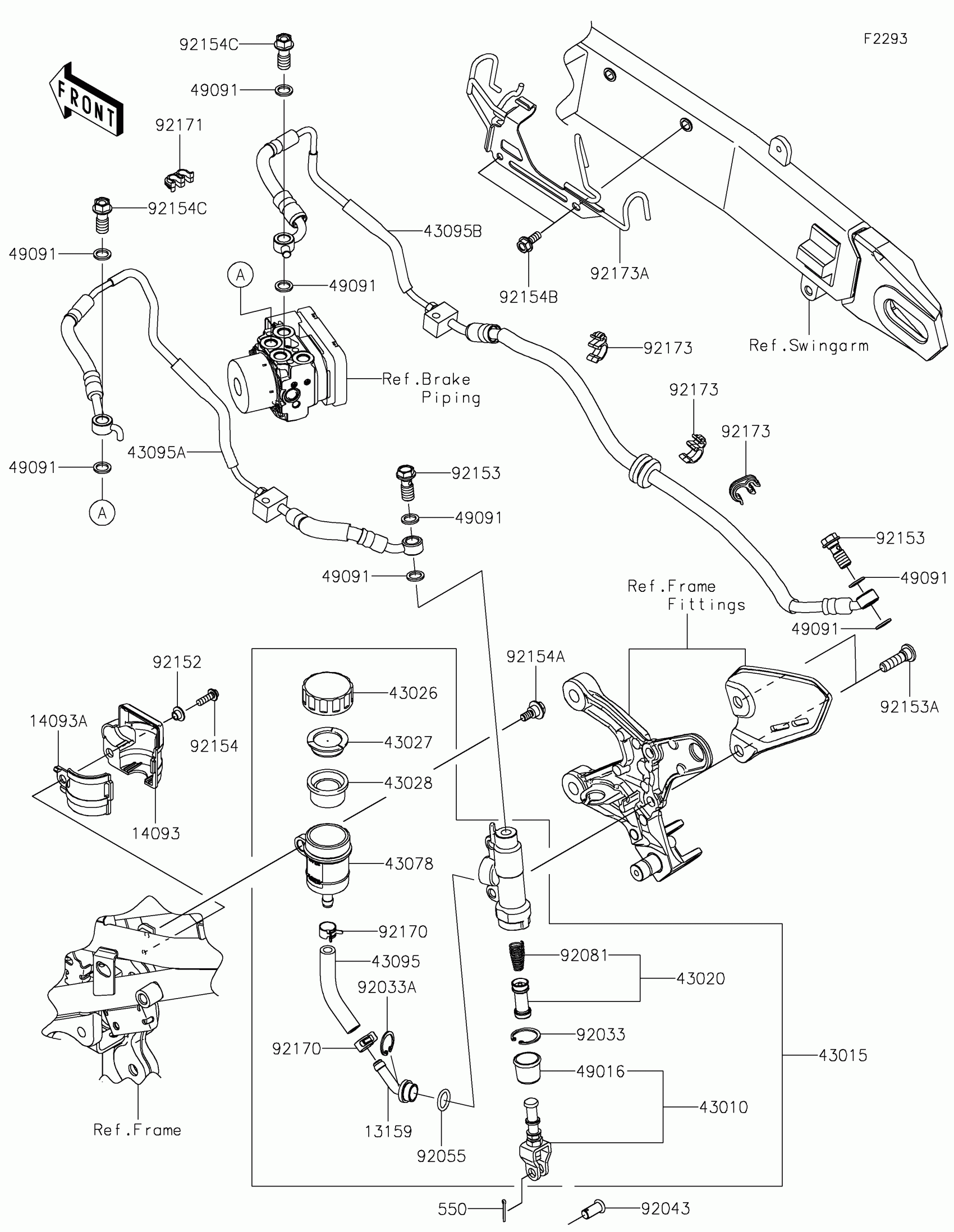

Kawasaki Z900RS ABS Rear Master Cylinder Diagram
#
Description
Price
13159
CONNECTOR
13159-0008
$11.02
14093
COVER,RR RESERVOIR,OUTER
14093-0653
$7.36
14093A
COVER,RR RESERVOIR,INNER
14093-0654
$7.36
43010
ROD-ASSY-BRAKE
43010-0020
$29.34
43015
CYLINDER-ASSY-MASTER,RR
43015-0664
$410.93
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE
43095-1496
$3.67
43095A
HOSE-BRAKE,RR M/CYL.-ABS UNIT
43095-1721
$175.33
43095B
HOSE-BRAKE,ABS UNIT-RR CALIPER
43095-1980
$206.94
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92152
COLLAR,5.3X7.3X5.3
92152-2190
$3.42
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,SOCKET,8X30
92153-1624
$3.90
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,FLANGED,6X16
92154-0385
$3.99
92154B
BOLT,FLANGED,6X16
92154-0899
$2.32
92154C
BOLT,BANJO,10X22
92154-1138
$7.40
92170
CLAMP,HOSE
92170-1091
$5.00
92171
CLAMP
92171-0817
$4.65
92173
CLAMP,HOSE&SENSOR LINE
92173-1613
$1.42
92173A
CLAMP,HOSE&SENSOR LINE
92173-2115
$20.86
550
PIN-COTTER,2.0X15
550AA2015
$1.12
