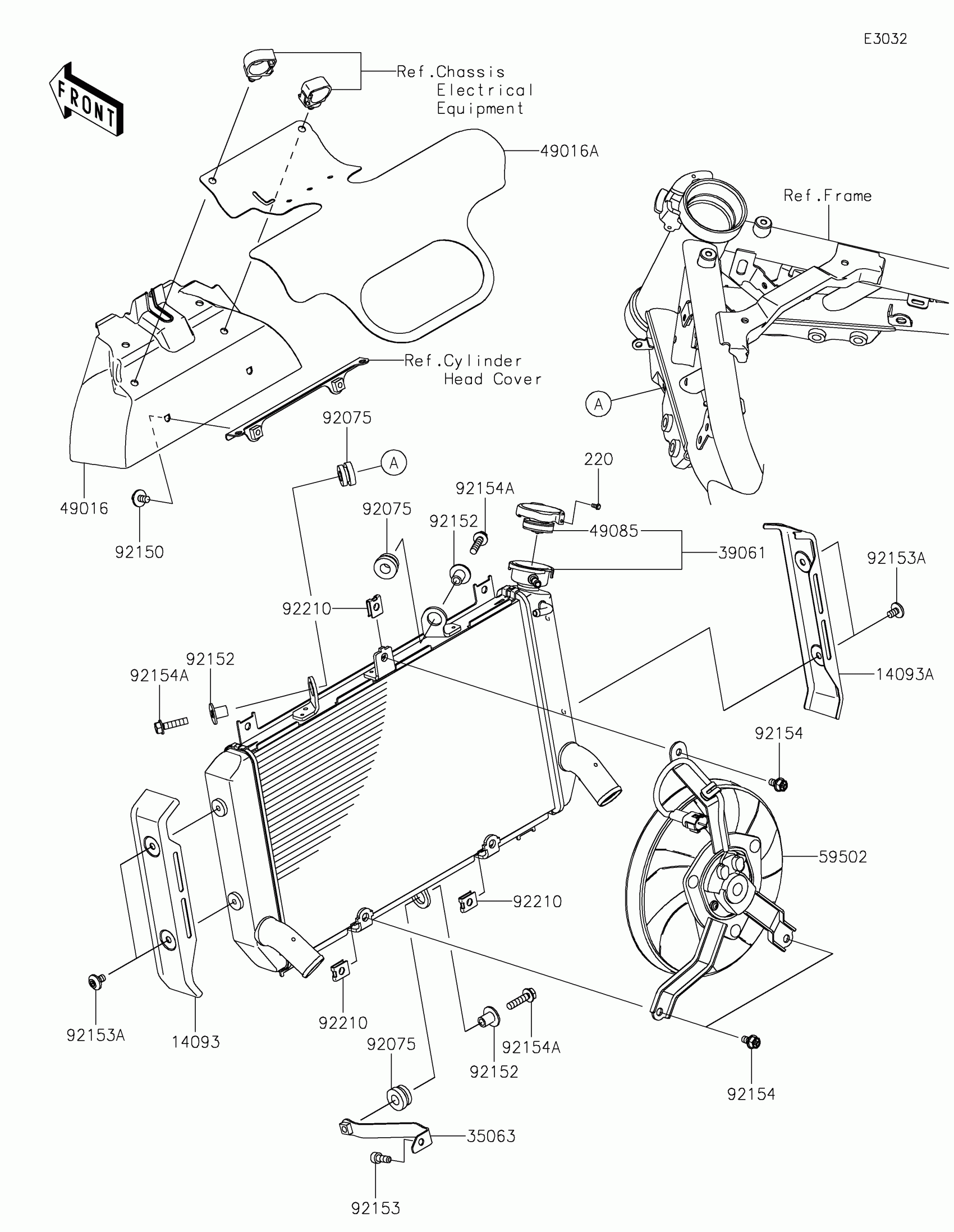

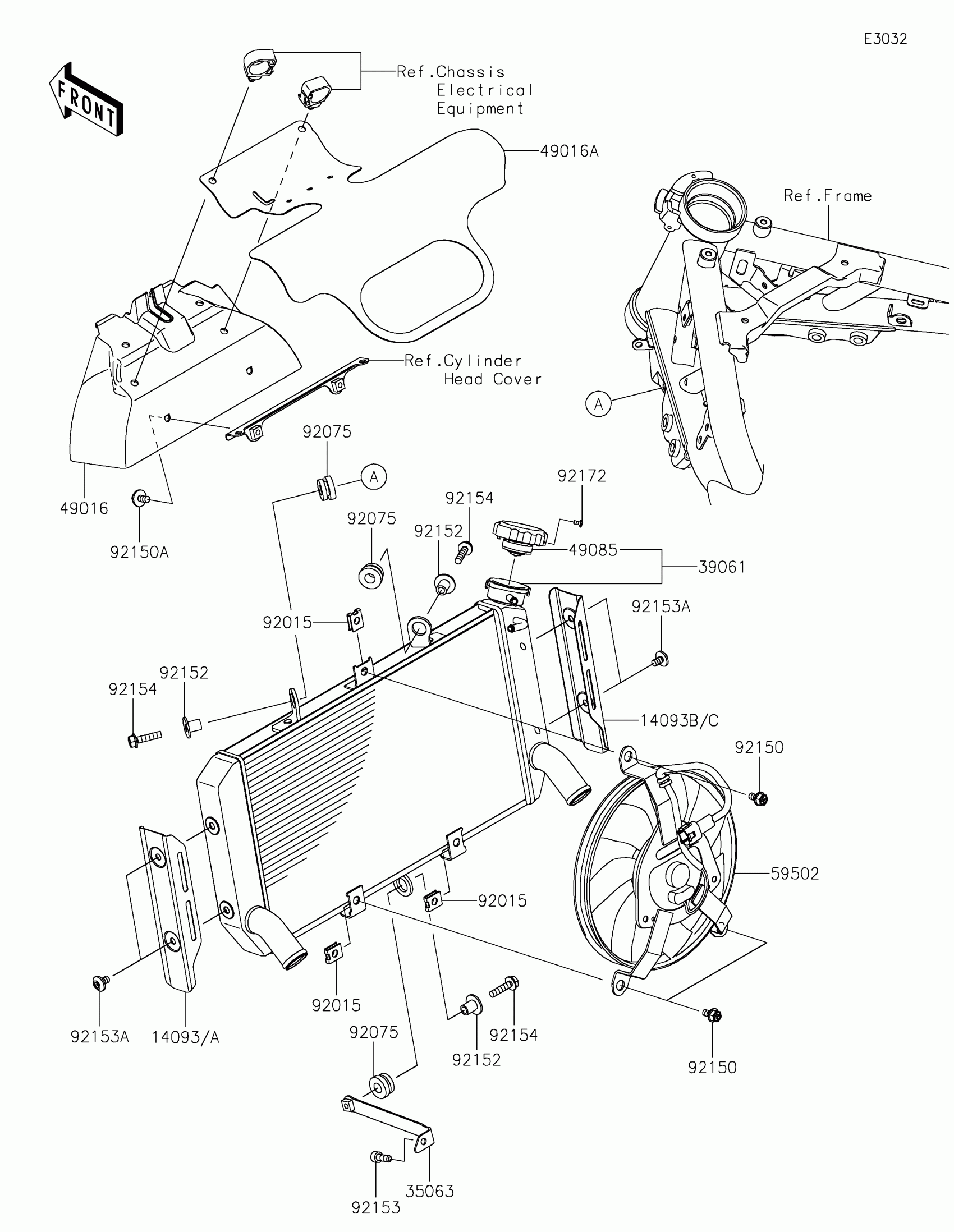

Kawasaki Z900RS ABS Radiator Diagram

Description

Price

14093

COVER,RADIATOR,LH,SILVER

14093-0647-28Z

$65.56

14093B

COVER,RADIATOR,RH,SILVER

14093-0648-28Z

$65.56

35063

STAY

35063-1395

$5.14

39061

RADIATOR-ASSY

39061-0749

$828.15

49016

COVER-SEAL,HEAT

49016-0647

$22.09

49016A

COVER-SEAL,HEAT

49016-0648

$22.09

49085

CAP-ASSY-PRESSURE

49085-1075

$43.53

59502

FAN-ASSY

59502-0618

$792.87

92015

NUT

92015-1487

$4.80

92075

DAMPER,RUBBER

92075-1123

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92150A

BOLT,6X12

92150-1891

$3.92

92152

COLLAR

92152-0667

$7.37

92153

BOLT,SOCKET,6X16

92153-1344

$2.97

92153A

BOLT,SOCKET,6X10

92153-1628

$1.78

92154

BOLT,FLANGED,6X25

92154-2846

$1.17

92172

SCREW,TAPPING,3X6

92172-1225

$1.17
