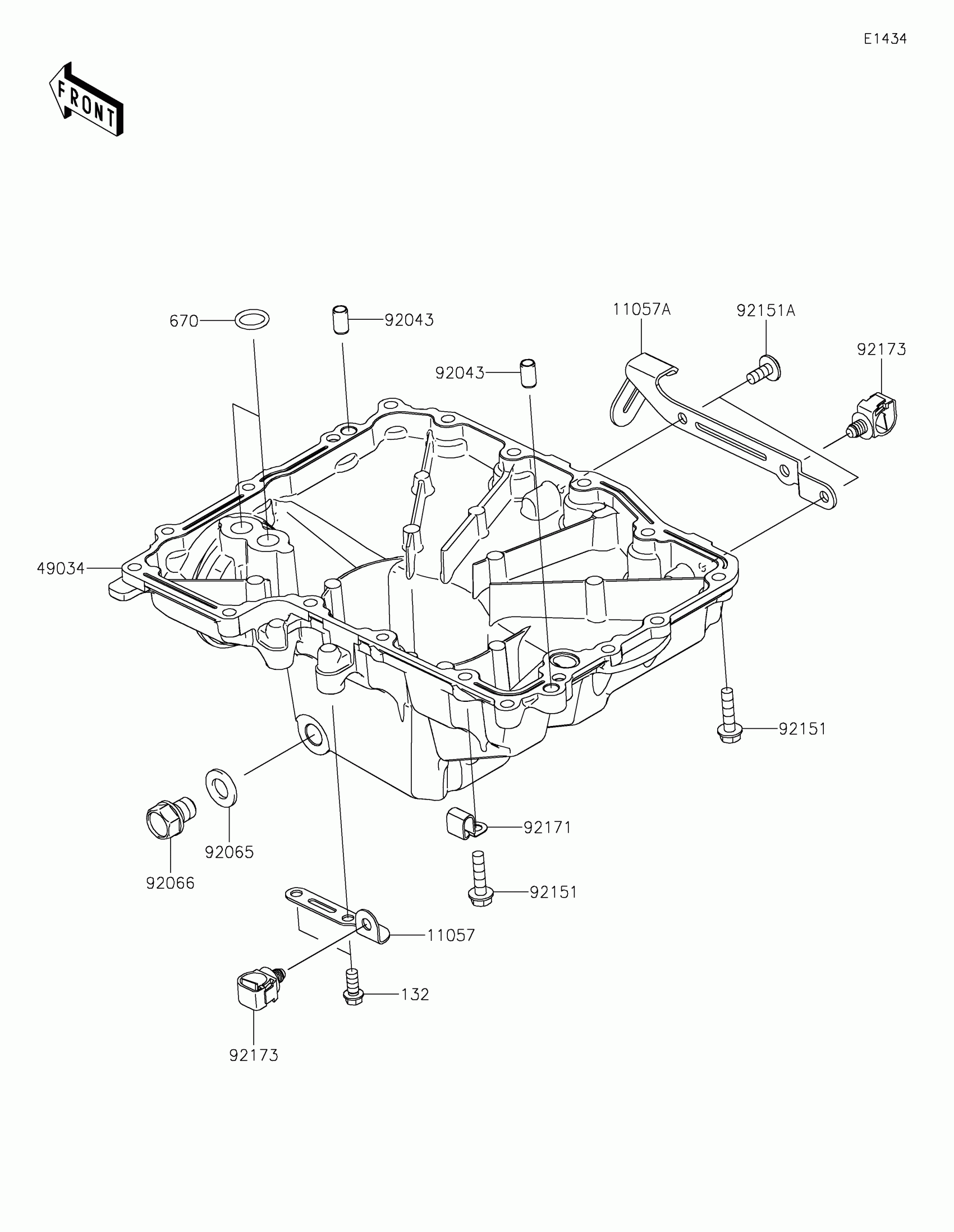

Kawasaki Z900RS ABS Oil Pan Diagram

Description

Price

11057

BRACKET

11057-1316

$3.74

11057A

BRACKET,OXYGEN SENSOR

11057-1595

$11.55

49034

PAN-OIL

49034-0578

$218.99

92043

PIN,6.2X8X14

92043-1263

$0.43

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,12X15

92066-0079

$6.02

92151

BOLT,FLANGED,6X25

92151-1225

$2.46

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92171

CLAMP

92171-0534

$6.38

92173

CLAMP,12MM DIA.

92173-0736

$5.05

132

BOLT-FLANGED-SMALL,6X14

132BC0614

$0.90

670

O RING,14MM

670D2014

$5.52
