2020 Kawasaki Z900RS ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

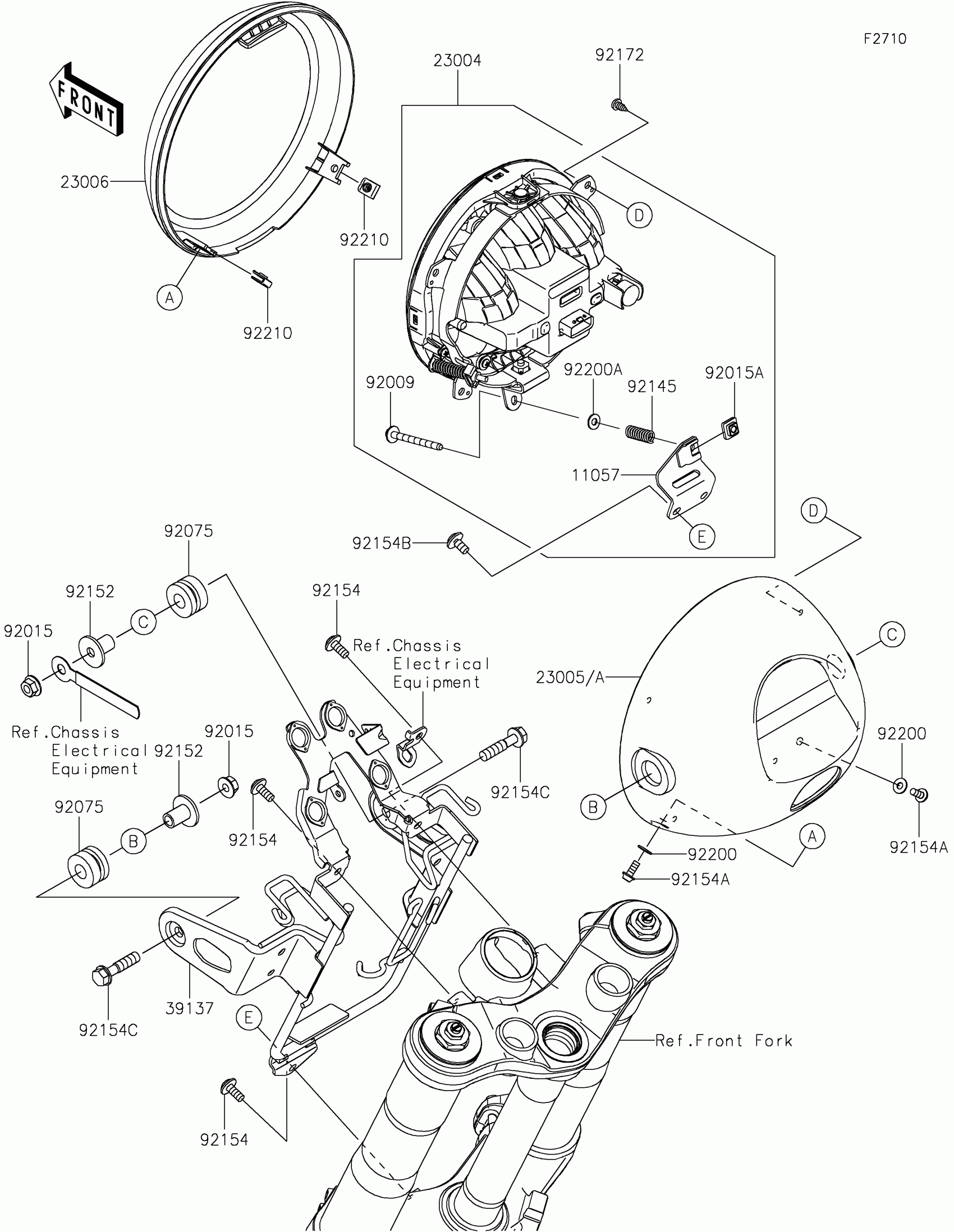

2020 Kawasaki Z900RS ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2657

1

$16.46

In stock

23004

LAMP-HEAD,LED

23004-0406

1

$1,166.16

In stock

23005

BODY-COMP-HEAD LAMP,F.EBONY

23005-0049-45L

1
Out of stock

23006

RIM-LAMP

23006-0019

1
Out of stock

39137

STAY-COMP,HEAD LAMP

39137-0678

1
Out of stock

92009

SCREW,ADJUST,5X55

92009-1683

1

$5.76

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1897

1
Out of stock

92075

DAMPER

92075-1736

1

$5.21

In stock

92145

SPRING

92145-1887

1

$20.51

In stock

92152

COLLAR,8X12X20.3

92152-2433

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1

$1.68

In stock

92154A

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92154B

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92154C

BOLT,FLANGED,8X35

92154-2923

1

$5.71

In stock

92172

SCREW,TAPPING,5X12

92172-0239

1

$0.97

In stock

92200

1

$0.69

In stock

92200A

WASHER

92200-2282

1

$4.08

In stock

92210

NUT

92210-0571

1
Out of stock
