2020 Kawasaki Z900RS ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

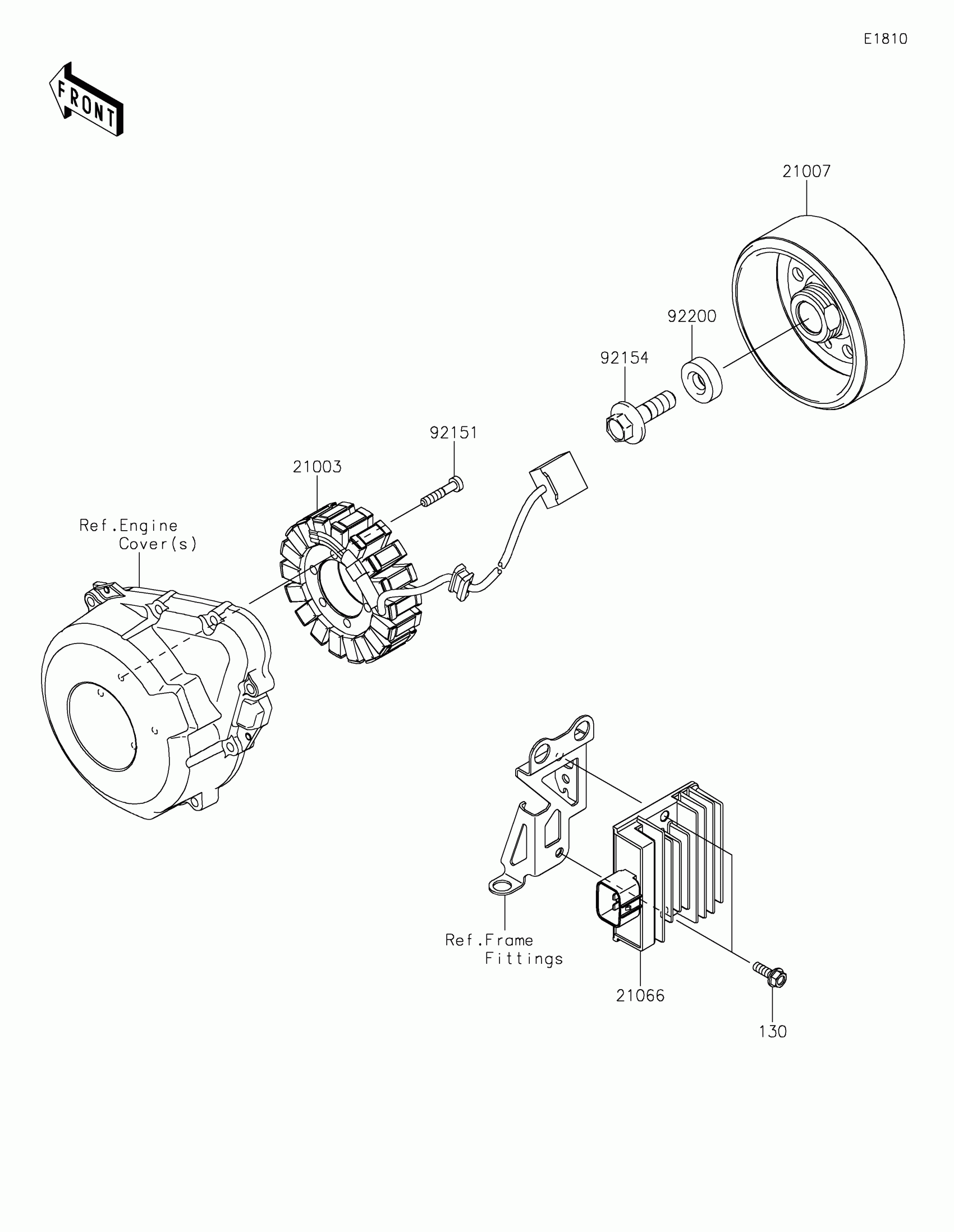

2020 Kawasaki Z900RS ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0179

1
Out of stock

21007

ROTOR

21007-0654

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0760

1
Out of stock

92151

BOLT,6X30

92151-1626

1

$2.25

In stock

92154

BOLT,FLANGED,12X40

92154-2650

1

$12.02

In stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock

130

BOLT-FLANGED,6X18

130CA0618

1

$1.53

In stock
