2023 Kawasaki Z900RS ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2023 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

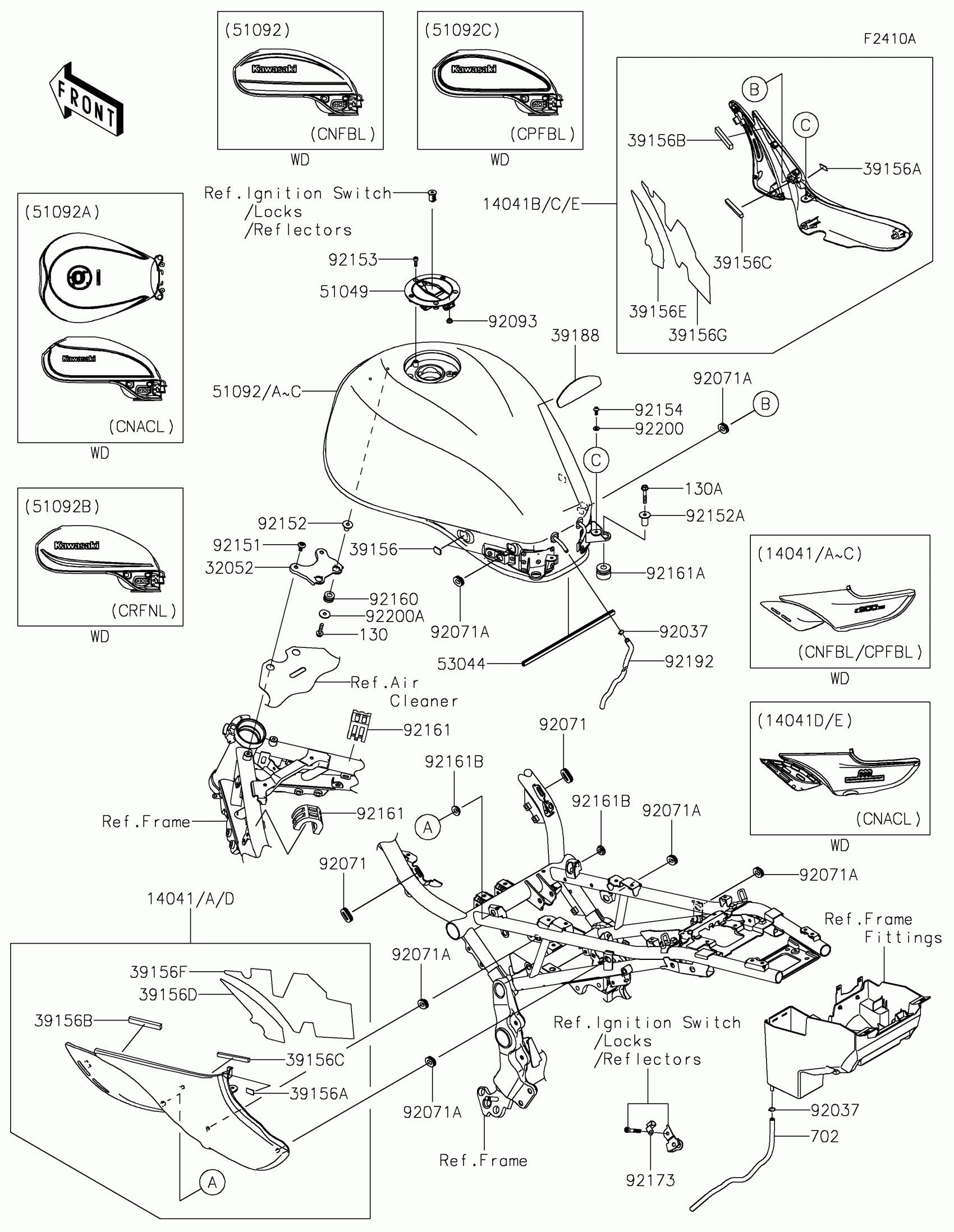

2023 Kawasaki Z900RS ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14041

COVER-SIDE,LH,M.D.BLACK

14041-5101-17K

1

$438.65

In stock

14041B

COVER-SIDE,RH,M.D.BLACK

14041-5102-17K

1

$438.65

In stock

32052

BRACKET-TANK

32052-0792

1
Out of stock

39156

PAD,13X18X2

39156-2204

1
Out of stock

39156A

PAD,10X20X1

39156-2241

1
Out of stock

39156B

PAD,7X70X10

39156-2268

1
Out of stock

39156C

PAD,7X70X7

39156-2269

1
Out of stock

39156D

PAD,72X188X0.3,COVER LH

39156-2273

1
Out of stock

39156E

PAD,72X188X0.3,COVER RH

39156-2274

1
Out of stock

39156F

PAD,137X328X0.45,COVER LH

39156-2275

1
Out of stock

39156G

PAD,137X328X0.45,COVER RH

39156-2276

1
Out of stock

39188

TAPE

39188-0584

1

$9.97

In stock

51049

CAP-TANK,FUEL

51049-0758

1

$143.57

In stock

51092B

TANK-COMP-FUEL,M.D.BLACK

51092-5372-17K

1

$1,840.15

In stock

53044

TRIM

53044-0645

1

$9.53

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92071

GROMMET,EMBOSSED 0776

92071-0776

1
Out of stock

92071A

GROMMET,EMBOSSED 0777

92071-0777

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR,6.3X9.5X14.1

92152-1847

1
Out of stock

92152A

COLLAR6.3X22X23.6

92152-2427

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1616

1

$1.20

In stock

92154

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-1963

1
Out of stock

92161A

DAMPER,12X28X21

92161-1998

1
Out of stock

92161B

DAMPER

92161-2450

1

$5.47

In stock

92173

CLAMP

92173-1820

1
Out of stock

92192

TUBE,6X9X708

92192-1845

1
Out of stock

92200

WASHER,NYLON,5.2X12X1

92200-1011

1
Out of stock

92200A

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

130A

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

702

TUBE-RUBBER,6X9X360

702A06360

1
Out of stock
