Description

Price

11057

BRACKET,RESERVOIR TANK

11057-1345

$8.98

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-0139

$71.47

21007

ROTOR,FR SENSOR

21007-0672

$89.81

21176

SENSOR,SPEED,FR

21176-0848

$129.35

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0663

$488.90

43020

PISTON-COMP-BRAKE

43020-0020

$66.11

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$23.99

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-0591

$30.88

43095

HOSE-BRAKE

43095-1486

$7.76

49016

COVER-SEAL

49016-1147

$6.29

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92075

DAMPER

92075-161

$4.69

92152

COLLAR

92152-0017

$2.80

92153

BOLT,LEVER

92153-0868

$7.83

92154

BOLT,SOCKET,6X22

92154-1271

$3.26

92154A

BOLT,SOCKET,5X10

92154-1292

$1.48

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP

92173-1790

$11.55

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,5X20

130BB0520

$2.02

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

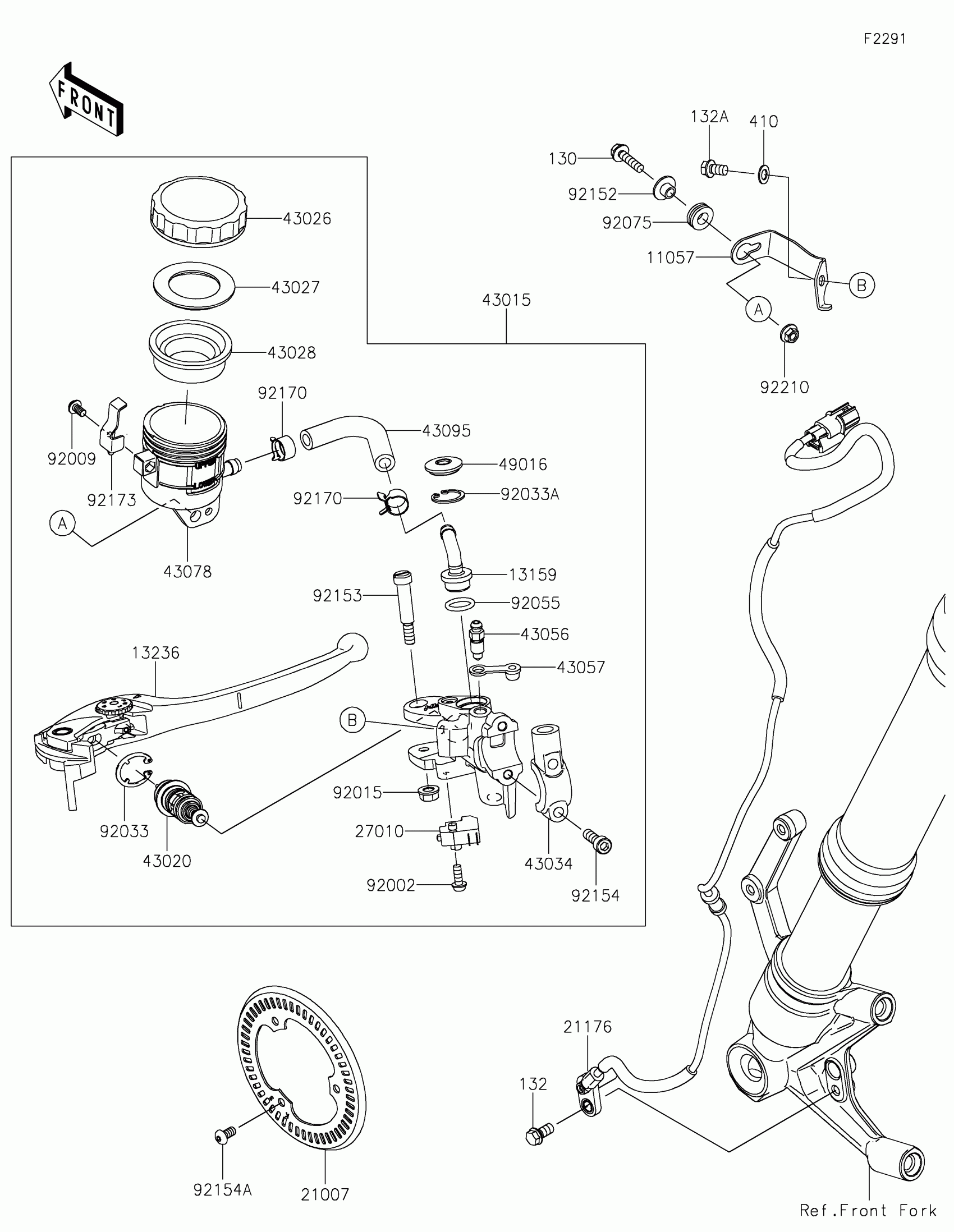

Kawasaki Z900RS ABS Front Master Cylinder Diagram
