2025 Kawasaki Z900RS ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

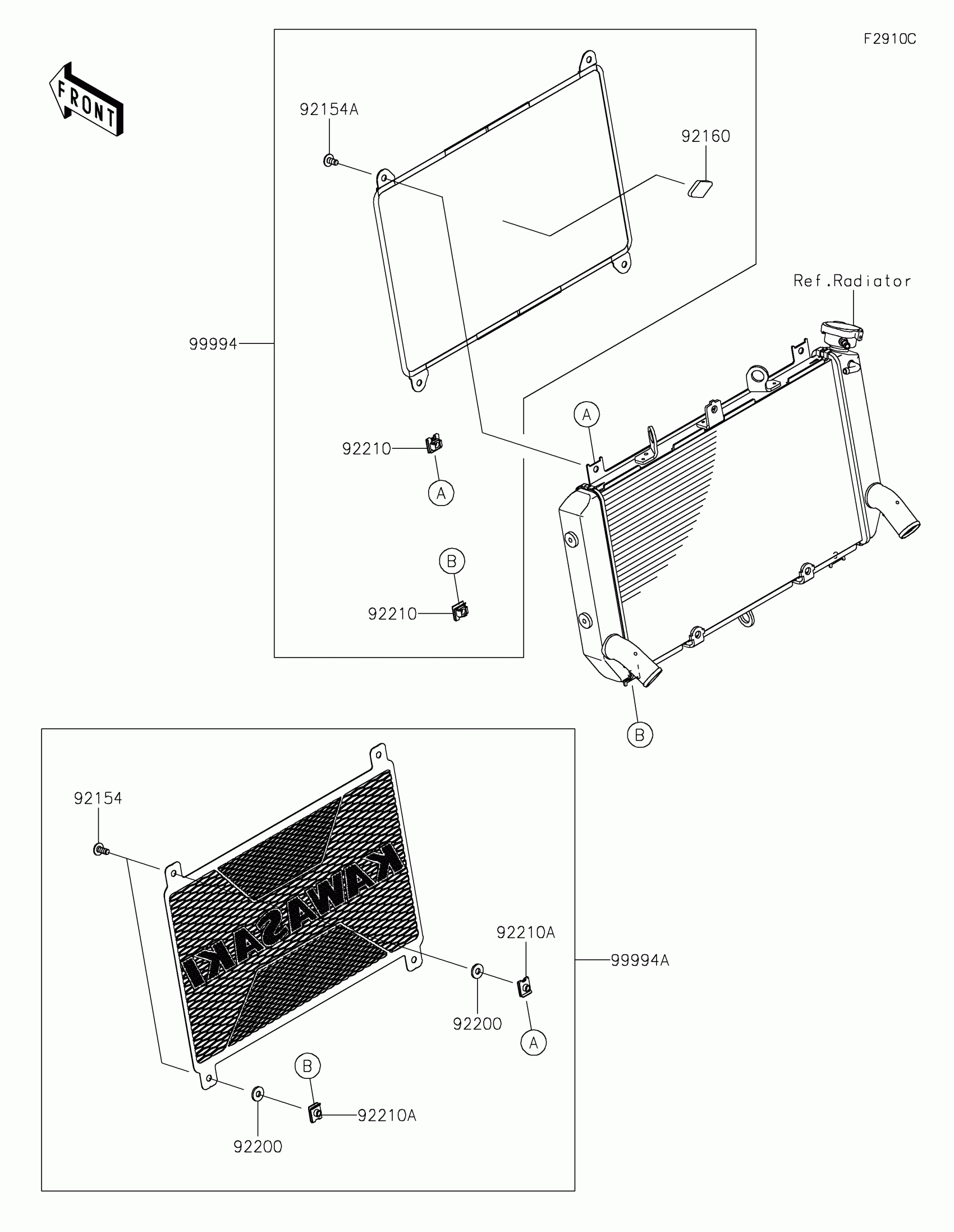

2025 Kawasaki Z900RS ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92154

BOLT,SOCKET,6X14

92154-0856

1

$1.66

In stock

92154A

BOLT,SOCKET,6X12

92154-4003

1

$1.47

In stock

92160

DAMPER

92160-1863

1

$4.22

In stock

92200

WASHER,6.5X16X2

92200-0312

1
Out of stock

92210

NUT,CLIP,6MM

92210-0867

1
Out of stock

92210A

NUT

92210-1518

1
Out of stock

99994

RADIATOR SCREEN

99994-1455

1

$154.28

In stock

99994A

RADIATOR SCREEN

99994-1670

1

$247.98

In stock
