2020 Kawasaki Z900RS ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

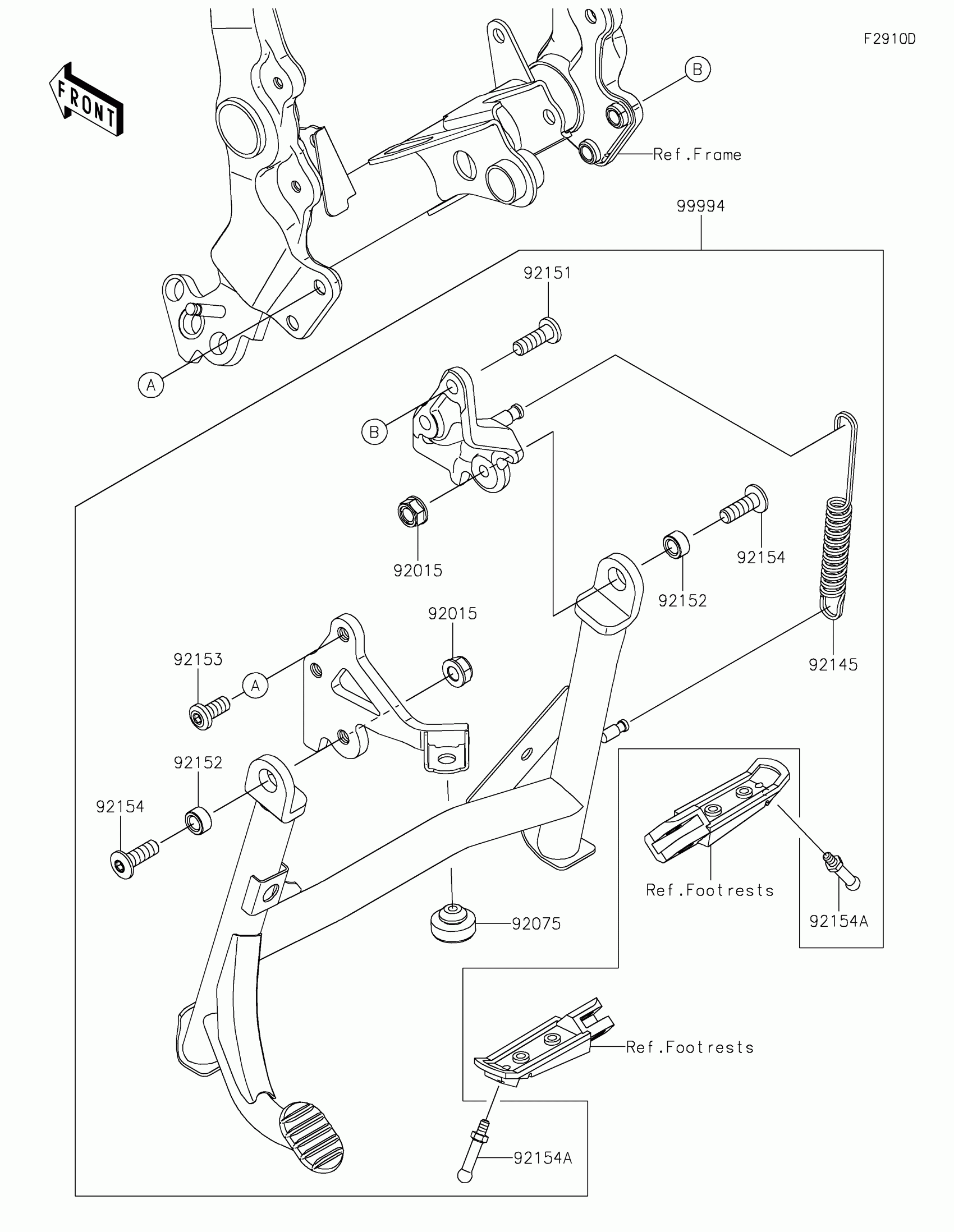

2020 Kawasaki Z900RS ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92015

1

$7.86

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

92145

SPRING,STAND

92145-0071

1

$17.59

In stock

92151

BOLT,SOCKET,10X30

92151-1372

1

$6.06

In stock

92152

COLLAR,10X17X9

92152-1906

1
Out of stock

92153

BOLT,SOCKET,10X22

92153-1477

1
Out of stock

92154

BOLT,SOCKET,10X30

92154-1665

1

$4.75

In stock

92154A

BOLT,BANK SENSOR

92154-3985

1

$12.19

In stock

99994

1

$327.40

In stock
