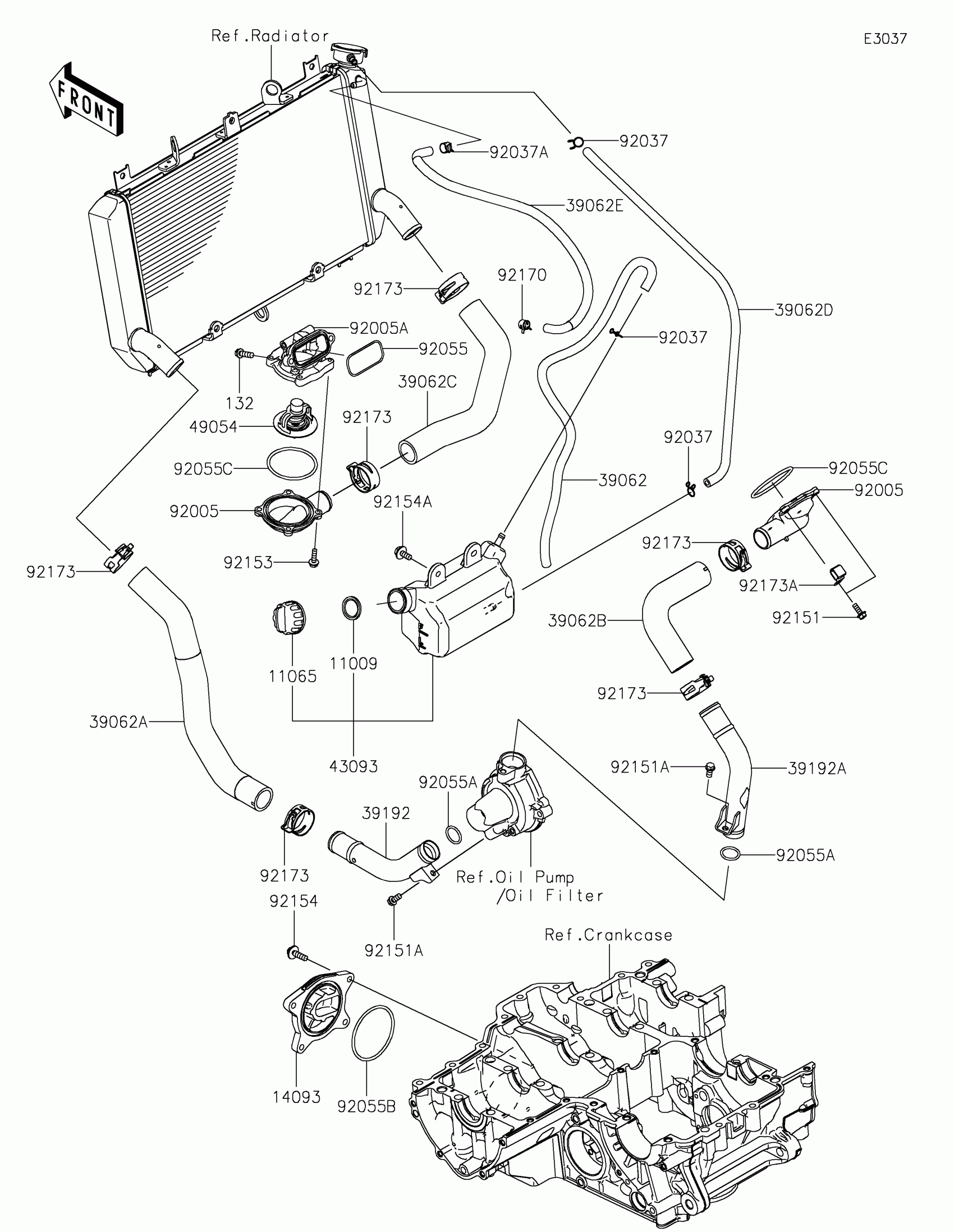

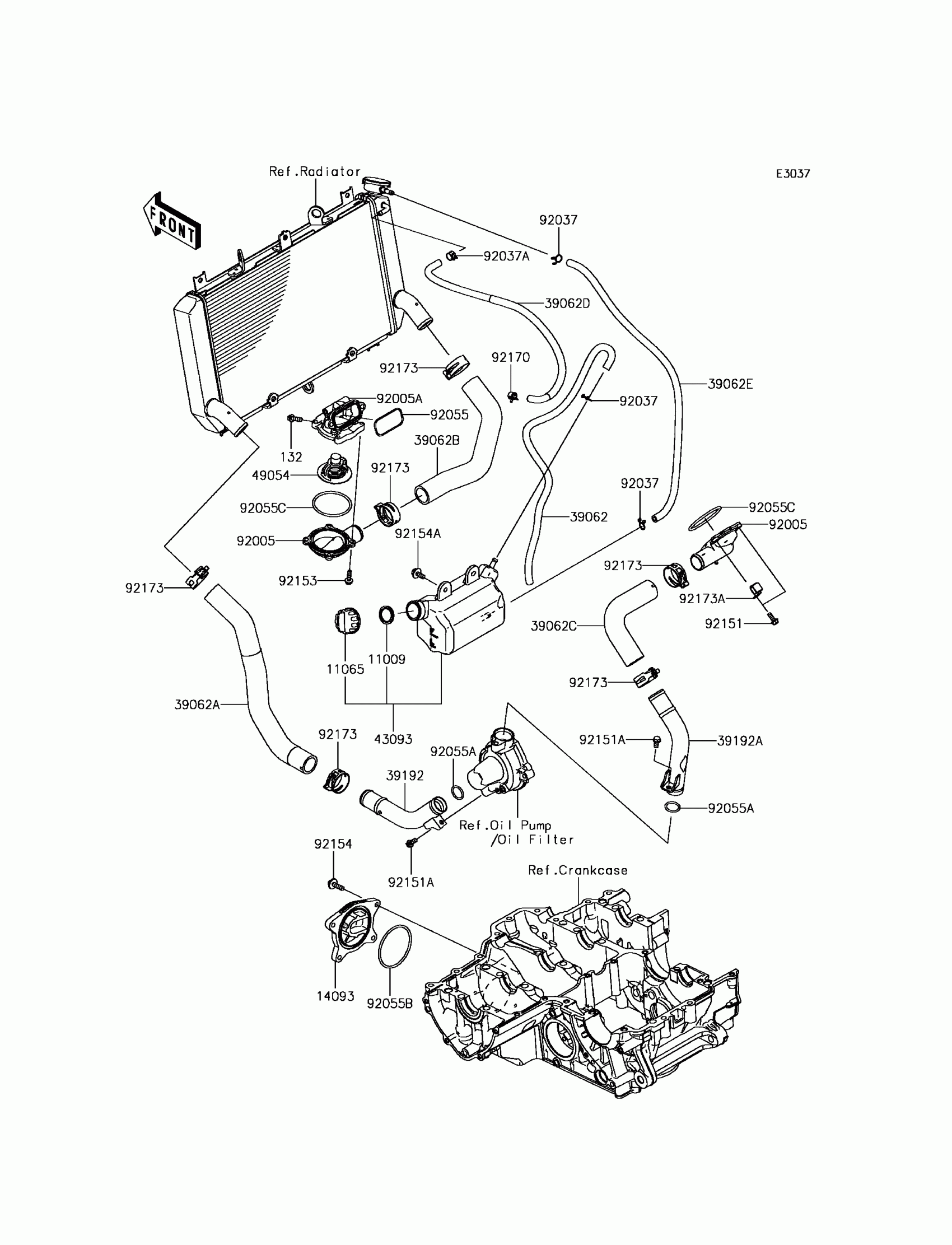

Kawasaki Z900 Water Pipe Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11065
CAP
11065-0980
$3.47
14093
COVER
14093-0144
$39.80
39062
HOSE-COOLING,OVERFLOW
39062-0618
$10.80
39062A
HOSE-COOLING,RADIATOR-W/PIPE
39062-0758
$56.14
39062B
HOSE-COOLING,W/PIPE-CYLINDER
39062-0785
$17.64
39062C
HOSE-COOLING,CYLINDER-RADIATOR
39062-0786
$28.27
39062D
HOSE-COOLING,5.5X10.5X570
39062-0887
$30.72
39062E
HOSE-COOLING,AIR BLEED
39062-0890
$19.09
39192
PIPE-WATER,RADIATOR-WATER PUMP
39192-0631
$43.13
39192A
PIPE-WATER,WATER PUMP-CYLINDER
39192-0644
$29.53
43093
RESERVOIR-ASSY-TANK
43093-0006
$46.98
49054
THERMOSTAT
49054-0004
$59.01
92005
FITTING,THERMO CAP
92005-0842
$79.65
92005A
FITTING,THERMO CASE
92005-0846
$29.36
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,TUBE
92037-1505
$4.76
92055
RING-O,YP 27.6 57.6 1.9
92055-0021
$3.73
92055A
RING-O,20.8X2.4
92055-0114
$3.90
92055B
RING-O,63.3MM
92055-0739
$4.10
92055C
RING-O,53.5X2.6
92055-0831
$7.85
92151
BOLT,5X14
92151-1764
$2.41
92151A
BOLT,6X12
92151-1997
$1.54
92153
BOLT,FLANGED,5X18
92153-1588
$1.34
92154
BOLT,FLANGED,6X22
92154-0403
$3.35
92154A
BOLT,UPSET-WP,6X16
92154-1850
$1.78
92170
CLAMP
92170-1493
$5.00
92173
CLAMP,34MM
92173-1360
$3.96
92173A
CLAMP
92173-1663
$6.38
132
BOLT-FLANGED-SMALL,6X20
132BC0620
$1.34
