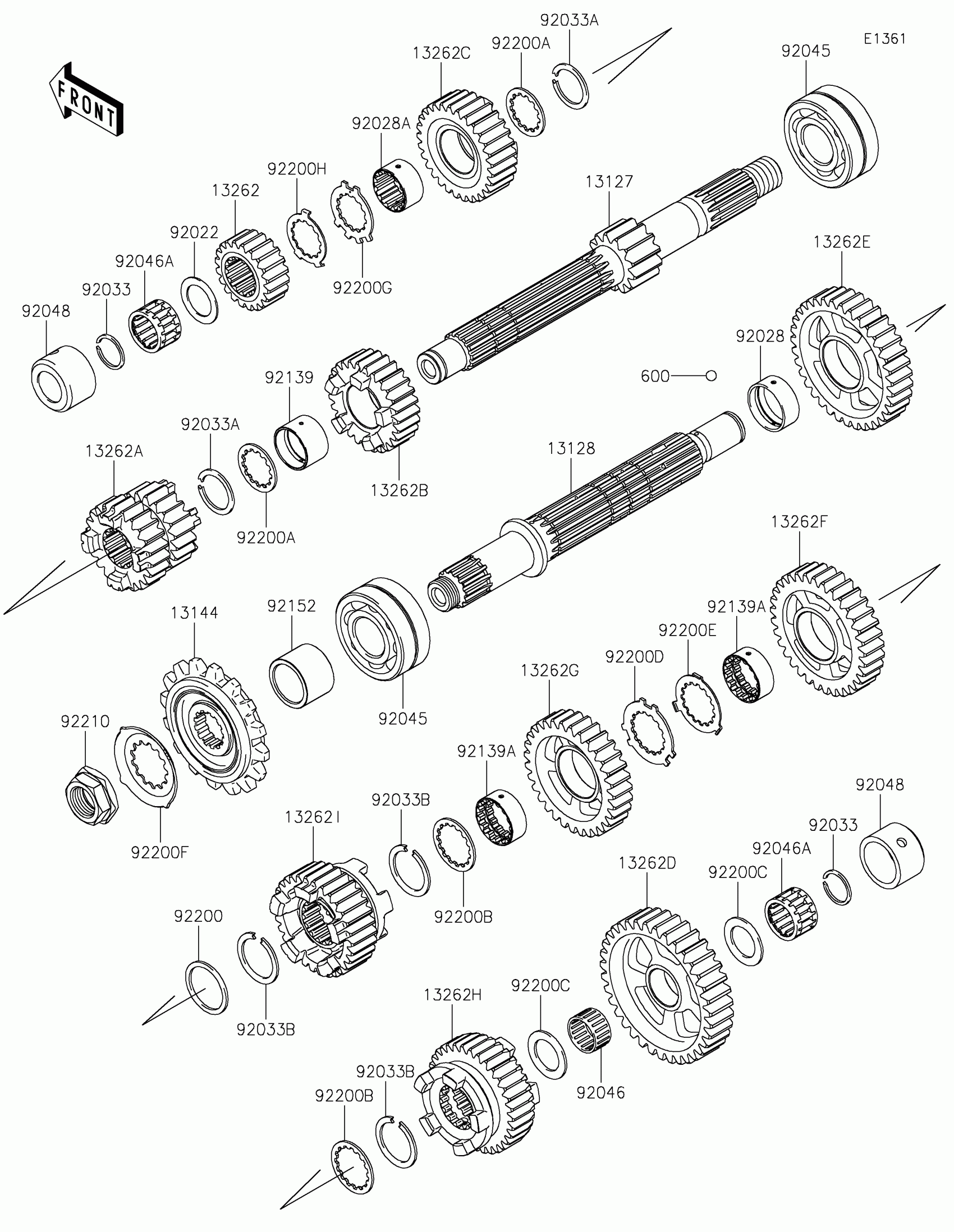

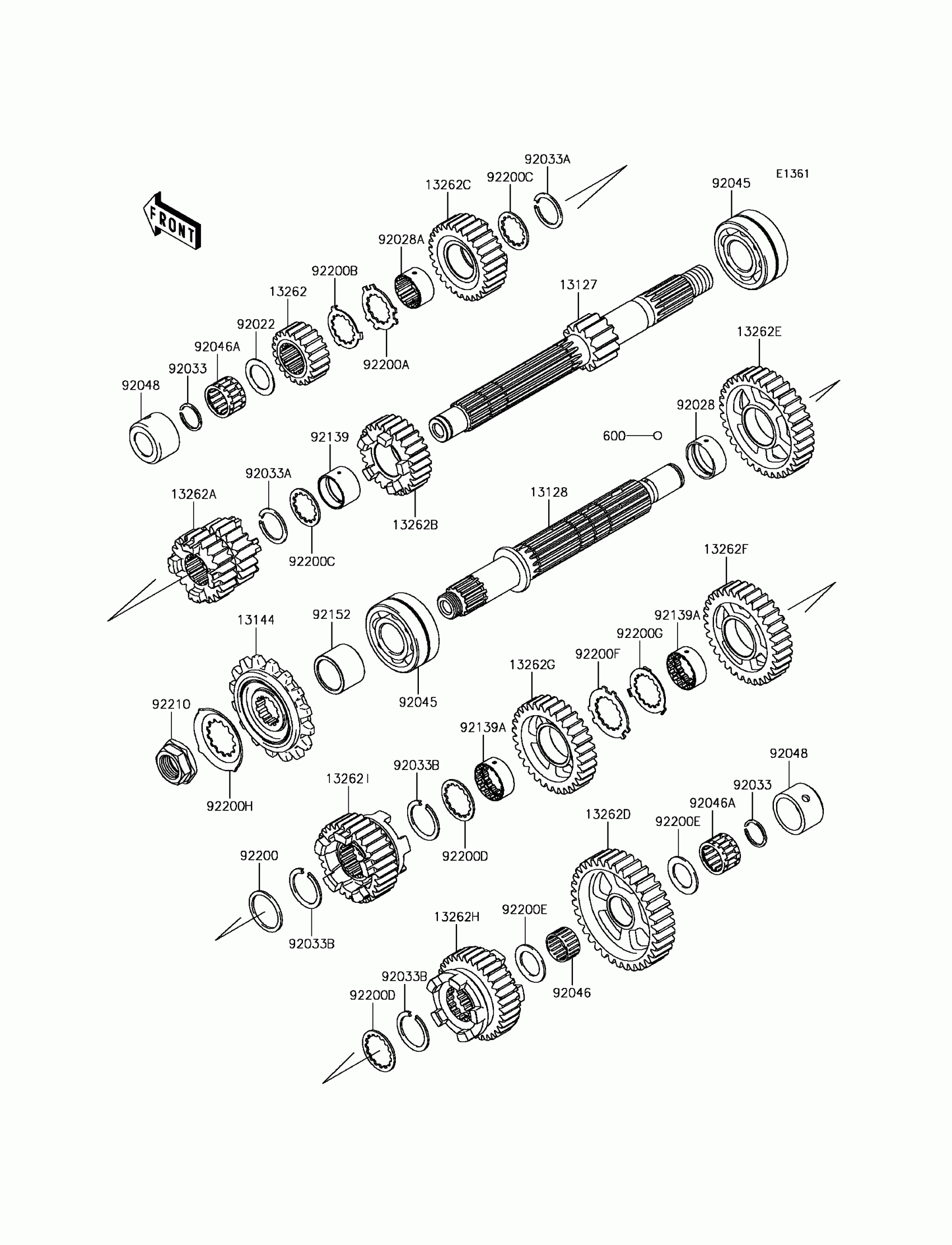

Kawasaki Z900 Transmission Diagram
#
13127
SHAFT-TRANSMISSION INPUT,13T
13127-0674
$299.16
13128
SHAFT-TRANSMISSION OUTPUT
13128-0698
$238.67
13144
SPROCKET-OUTPUT,15T
13144-0579
$46.80
13262
GEAR,INPUT 2ND,17T
13262-1233
$75.67
13262A
GEAR,INPUT 3RD&4TH,20T&22T
13262-1234
$207.69
13262B
GEAR,INPUT 5TH,27T
13262-1235
$154.63
13262C
GEAR,INPUT 6TH,29T
13262-1236
$153.39
13262D
GEAR,OUTPUT LOW,35T
13262-1237
$141.06
13262E
GEAR,OUTPUT 2ND,35T
13262-1238
$128.14
13262F
GEAR,OUTPUT 3RD,33T
13262-1239
$127.76
13262G
GEAR,OUTPUT 4TH,31T
13262-1240
$126.24
13262H
GEAR,OUTPUT 5TH,33T
13262-1241
$156.52
13262I
GEAR,OUTPUT 6TH,30T
13262-1242
$185.89
92022
WASHER,20.5X30X1,STEEL
92022-112
$8.86
92028
BUSHING,OUTPUT,2ND
92028-1739
$25.59
92028A
BUSHING,INPUT TOP GEAR
92028-1915
$25.83
92033
RING-SNAP,20MM
92033-015
$4.26
92033A
RING-SNAP,24MM
92033-026
$8.79
92033B
RING-SNAP,T=1.5
92033-1249
$4.96
92045
BEARING-BALL,DAC2557NSSH
92045-0003
$105.03
92046
BEARING-NEEDLE,K20X24X13
92046-1219
$13.37
92046A
BEARING-NEEDLE,PK20X27X17X3
92046-1303
$21.01
92048
RACE
92048-0016
$32.49
92139
BUSHING,25X28X17.8
92139-0280
$34.79
92139A
BUSHING,OUTPUT,3RD&4TH
92139-0281
$43.03
92152
COLLAR,SPROCKET
92152-2263
$28.86
92200
WASHER,28.1X34.0X1.6
92200-0228
$27.48
92200A
WASHER,25.2X31.0X1.5
92200-1239
$7.84
92200B
WASHER,28.5X34.0X1.5
92200-1240
$10.28
92200C
WASHER,20.5X31X1.5
92200-1375
$4.69
92200D
WASHER,25.8X40.5X1.5
92200-1522
$4.83
92200E
WASHER,25.2X37.0X1.0
92200-1523
$6.36
92200F
WASHER
92200-1720
$3.63
92200G
WASHER,22.6X34.2X1.5
92200-1941
$9.23
92200H
WASHER,22X32X1
92200-1942
$11.81
92210
NUT,20MM
92210-0850
$14.39
600
BALL-STEEL,5/32
600A0500
$0.81
