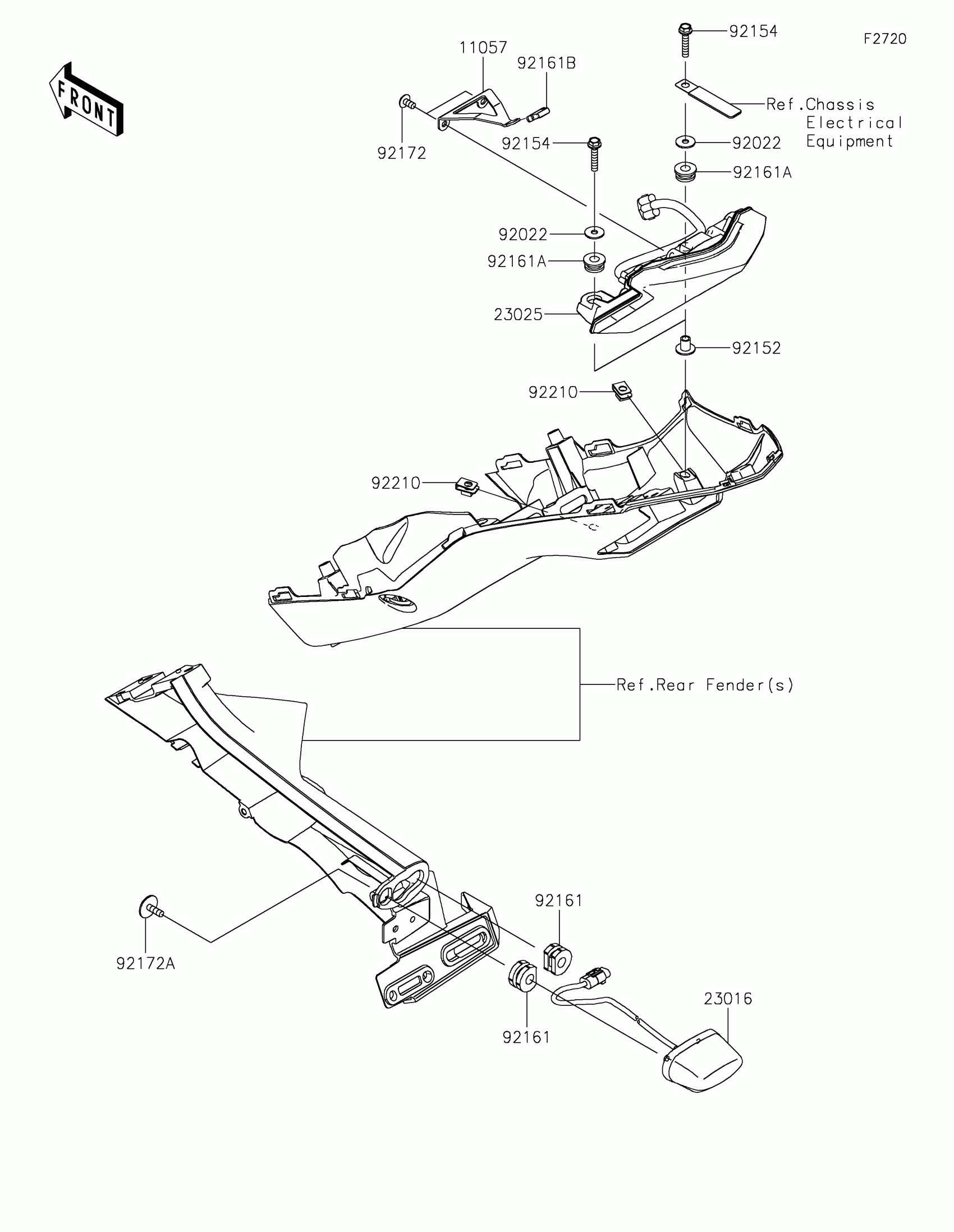

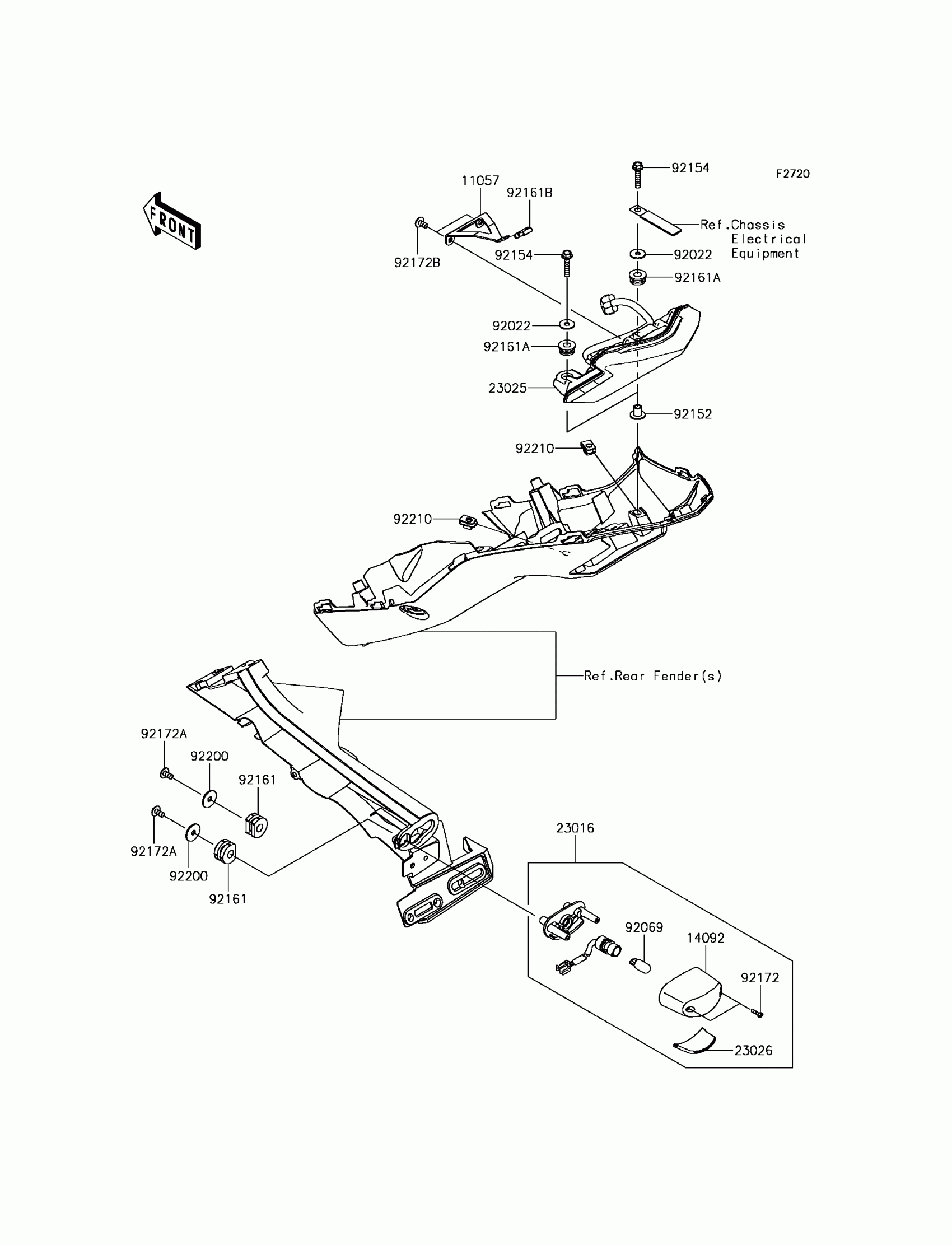

Kawasaki Z900 Taillight(s) Diagram

Description

Price

11057

BRACKET,TAIL LAMP

11057-0247

$4.85

14092

COVER,LICENSE LAMP

14092-0001

$21.52

23016

LAMP-ASSY,LICENSE

23016-0561

$71.76

23025

LAMP-TAIL

23025-0361

$292.46

23026

LENS,LICENCE LAMP

23026-0023

$28.78

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 5W

92069-1016

$6.52

92152

COLLAR,5.6X8X11.2

92152-1562

$2.67

92154

BOLT,FLANGED,5X25

92154-2682

$1.19

92161

DAMPER

92161-0776

$5.54

92161A

DAMPER,8X18X8.1

92161-1369

$1.63

92161B

DAMPER

92161-1917

$1.71

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92172A

SCREW,TAPPING,5X16

92172-0427

$2.55

92172B

SCREW,5X10

92172-0864

$1.34

92200

WASHER,5.5X20X1.2

92200-0284

$2.15

92210

NUT,PLATE,5MM

92210-0935

$1.97
