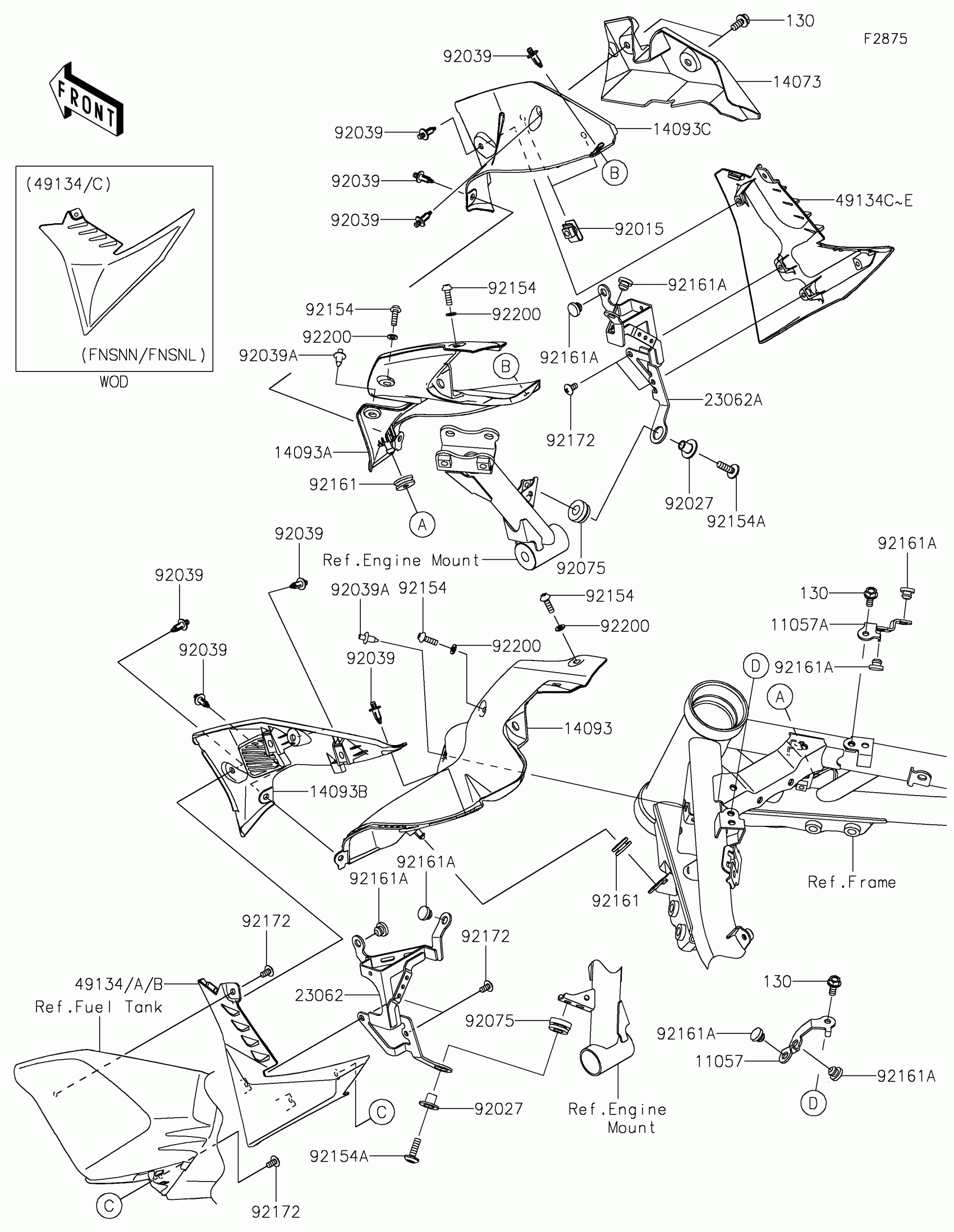

Kawasaki Z900 Shroud Diagram
#
Description
Price
11057
BRACKET,SHROUD,RR,LH
11057-3997
$3.42
11057A
BRACKET,SHROUD,RR,RH
11057-3998
$3.42
14073
DUCT,INNER,GUIDE,RH
14073-0962
$25.29
14093
COVER,SHROUD,INNER,RR,LH
14093-0917
$48.31
14093A
COVER,SHROUD,INNER,RR,RH
14093-0918
$44.29
14093B
COVER,SHROUD,INNER,FR,LH
14093-0919
$32.81
14093C
COVER,SHROUD,INNER,FR,RH
14093-0920
$31.73
23062
BRACKET-COMP,SHROUD,FR,LH
23062-1278
$20.39
23062A
BRACKET-COMP,SHROUD,FR,RH
23062-1279
$20.39
49134
SHROUD,LH,M.S.BLACK
49134-0016-660
$57.02
49134A
SHROUD,LH,M.M.G.GRAY
49134-0016-68P
Unavailable
49134B
SHROUD,LH,EBONY
49134-0016-H8
$53.18
49134C
SHROUD,RH,M.S.BLACK
49134-0017-660
$57.02
49134D
SHROUD,RH,M.M.G.GRAY
49134-0017-68P
Unavailable
49134E
SHROUD,RH,EBONY
49134-0017-H8
$53.18
92015
NUT,6MM
92015-1671
$7.61
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92039
RIVET
92039-0051
$4.65
92039A
RIVET
92039-0068
$2.97
92075
DAMPER
92075-277
$2.84
92154
BOLT,SOCKET,5X16
92154-4294
$2.75
92154A
BOLT,SOCKET,6X20
92154-4295
$6.26
92161
DAMPER
92161-0588
$3.94
92161A
DAMPER
92161-1971
$2.67
92172
SCREW,5X10
92172-0864
$1.34
92200
WASHER,5.2X10X1
92200-2286
$0.39
130
BOLT-FLANGED,6X14
130BA0614
$1.20
