Description

Price

130

BOLT-FLANGED,6X14

130CA0614

$4.12

32046

BRACKET-SEAT,FR LOCK

32046-0401

$10.00

32046A

BRACKET-SEAT,FR

32046-0418

$66.63

53003

LEATHER,FR SEAT,BLACK

53003-0432-MA

$142.55

53003A

LEATHER,RR SEAT,BLACK

53003-0433-MA

$102.27

53066

SEAT-ASSY,FR,BLACK

53066-0581-MA

$319.40

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0582-12Y

$221.07

92027

COLLAR,L=4.6

92027-1168

$5.00

92071

GROMMET

92071-0038

$3.87

92160

DAMPER

92160-1513

$7.40

92161

DAMPER,SEAT

92161-0930

$7.43

92161A

DAMPER

92161-1084

$2.67

92161B

DAMPER,20X90X15

92161-1867

$5.88

92161C

DAMPER,12X28X21

92161-1913

$4.41

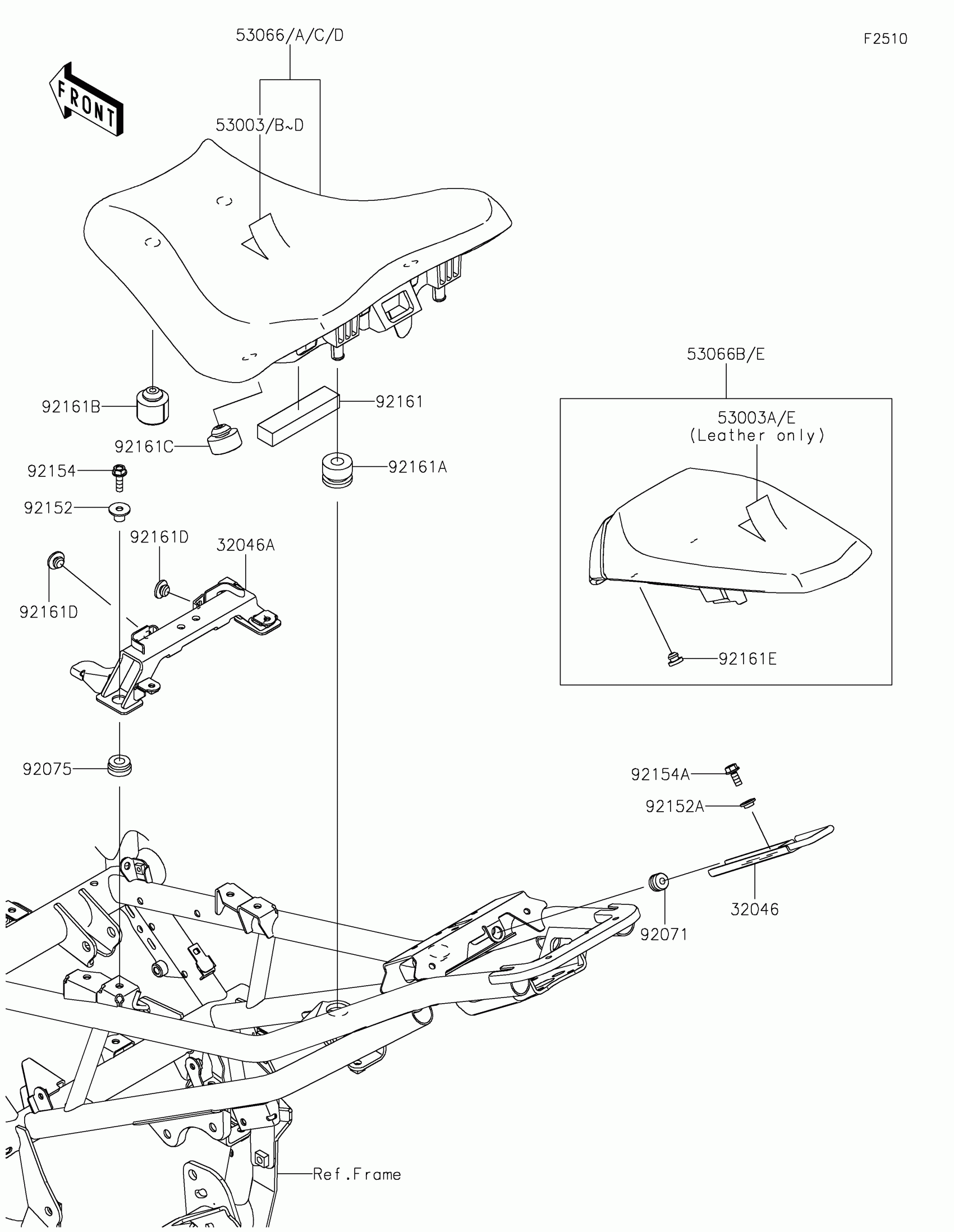

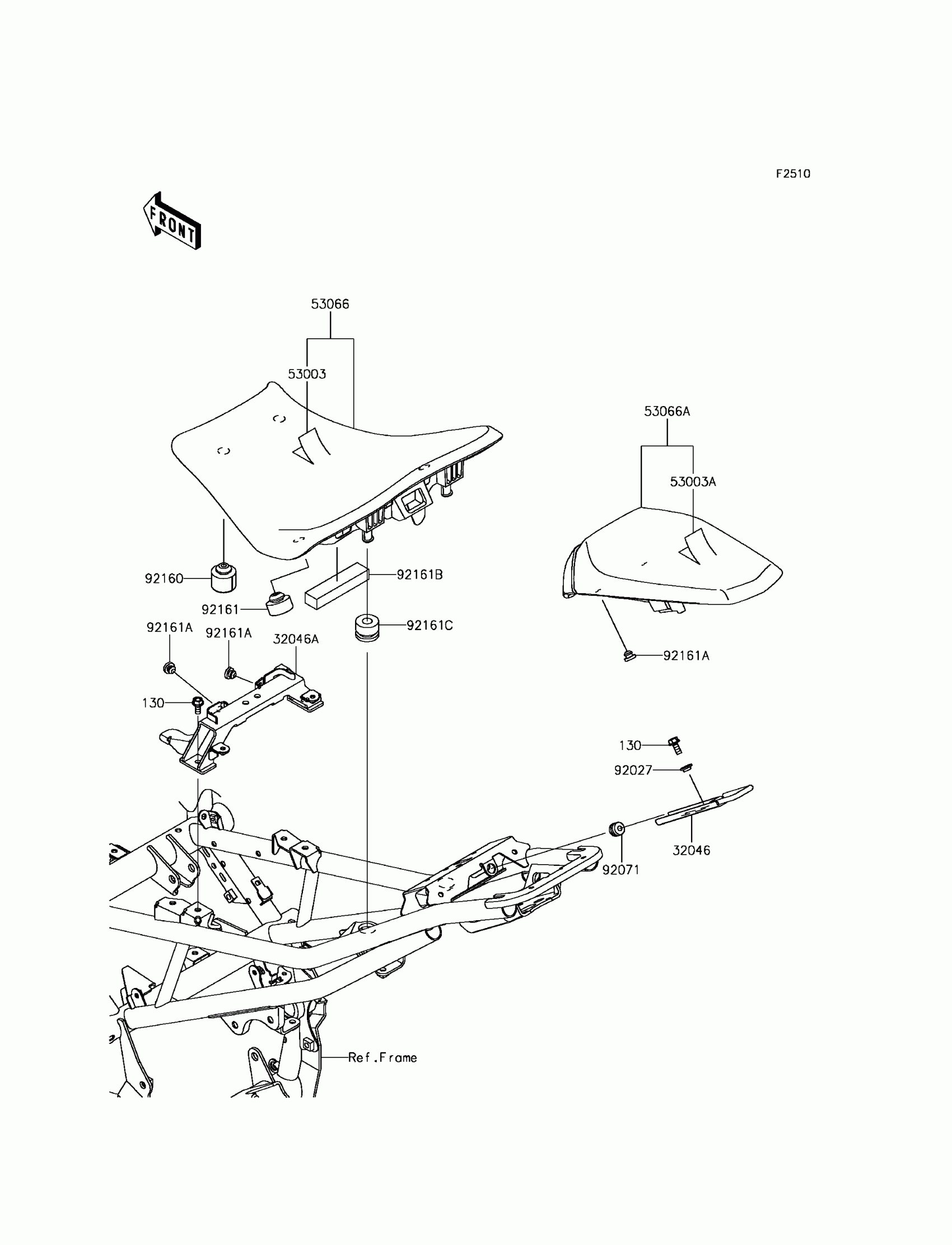

Kawasaki Z900 Seat Diagram

BOLT-FLANGED,6X14

BRACKET-SEAT,FR LOCK

BRACKET-SEAT,FR

LEATHER,FR SEAT,BLACK

LEATHER,RR SEAT,BLACK

SEAT-ASSY,FR,BLACK

SEAT-ASSY,RR,BLACK+BLK

COLLAR,L=4.6

GROMMET

DAMPER

DAMPER,SEAT

DAMPER

DAMPER,20X90X15

DAMPER,12X28X21
