2022 Kawasaki Z900 SE Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2022 Kawasaki Z900 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

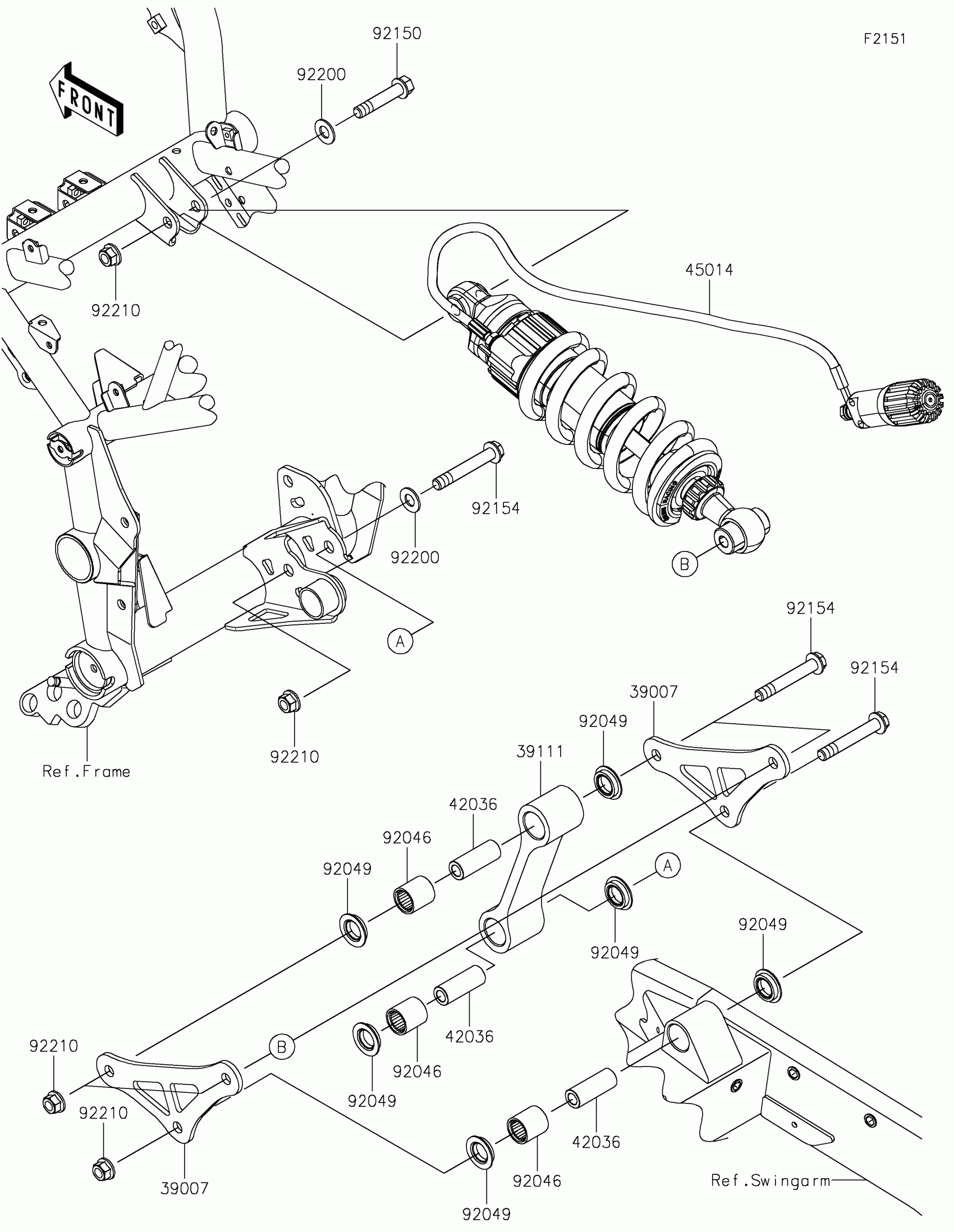

2022 Kawasaki Z900 SE Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0410

1
Out of stock

39111

ROD-TIE

39111-0370

1
Out of stock

42036

SLEEVE,10.1X17X44.5

42036-1342

1
Out of stock

45014

SHOCKABSORBER,OHLINS

45014-0733

1
Out of stock

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92150

BOLT,FLANGED,10X50

92150-1125

1
Out of stock

92154

BOLT,FLANGED,10X66

92154-2839

1
Out of stock

92200

WASHER,11X22X1.6

92200-1926

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
