Description

Price

33001

ARM-COMP-SWING,F.S.BLACK

33001-0732-18R

$985.20

33032

SHAFT-SWING ARM,20X269

33032-0055

$139.31

33040

ADJUSTER-CHAIN

33040-1109

$18.36

42036

SLEEVE

42036-0842

$137.70

55020

GUARD,CHAIN

55020-1961

$58.24

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

$9.95

92151

BOLT,SOCKET,6X18

92151-1149

$5.86

92152

COLLAR,28X35X15

92152-2781

$37.49

92154

BOLT-SMALL,8X55

92154-1962

$4.29

92210

NUT,FLANGED,20MM

92210-0320

$9.07

92210A

NUT,POP,6MM,L=16.5

92210-0324

$4.68

92210B

NUT-HEX-SMALL,8MM

92210-1459

$3.01

92210C

NUT,28MM

92210-1575

$19.64

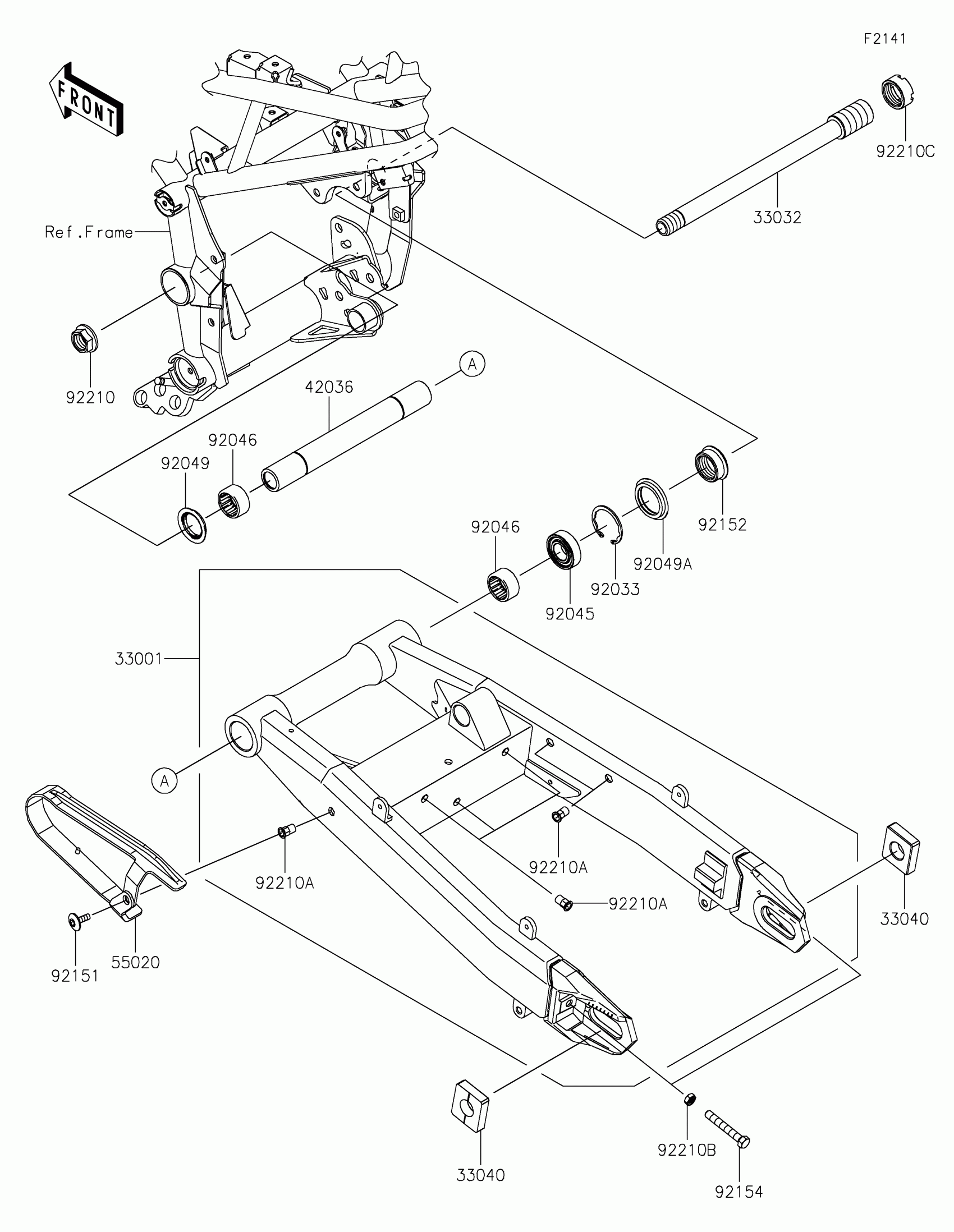

Kawasaki Z900 SE Swingarm Diagram
