Description

Price

11057

BRACKET,SHROUD,RR,LH

11057-3997

$3.42

11057A

BRACKET,SHROUD,RR,RH

11057-3998

$3.42

14073

DUCT,INNER,GUIDE,RH

14073-0962

$25.29

14093

COVER,SHROUD,INNER,RR,LH

14093-0917

$48.31

14093A

COVER,SHROUD,INNER,RR,RH

14093-0918

$44.29

14093B

COVER,SHROUD,INNER,FR,LH

14093-0919

$32.81

14093C

COVER,SHROUD,INNER,FR,RH

14093-0920

$31.73

23062

BRACKET-COMP,SHROUD,FR,LH

23062-1278

$20.39

23062A

BRACKET-COMP,SHROUD,FR,RH

23062-1279

$20.39

49134

SHROUD,LH,M.S.BLACK

49134-5257-660

$115.48

49134A

SHROUD,RH,M.S.BLACK

49134-5258-660

$115.48

92015

NUT,6MM

92015-1671

$7.61

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92039

RIVET

92039-0051

$4.65

92039A

RIVET

92039-0068

$2.97

92075

DAMPER

92075-277

$2.84

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,6X20

92154-0918

$6.26

92161

DAMPER

92161-0588

$3.94

92161A

DAMPER

92161-1971

$2.67

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

130

BOLT-FLANGED,6X14

130BA0614

$1.20

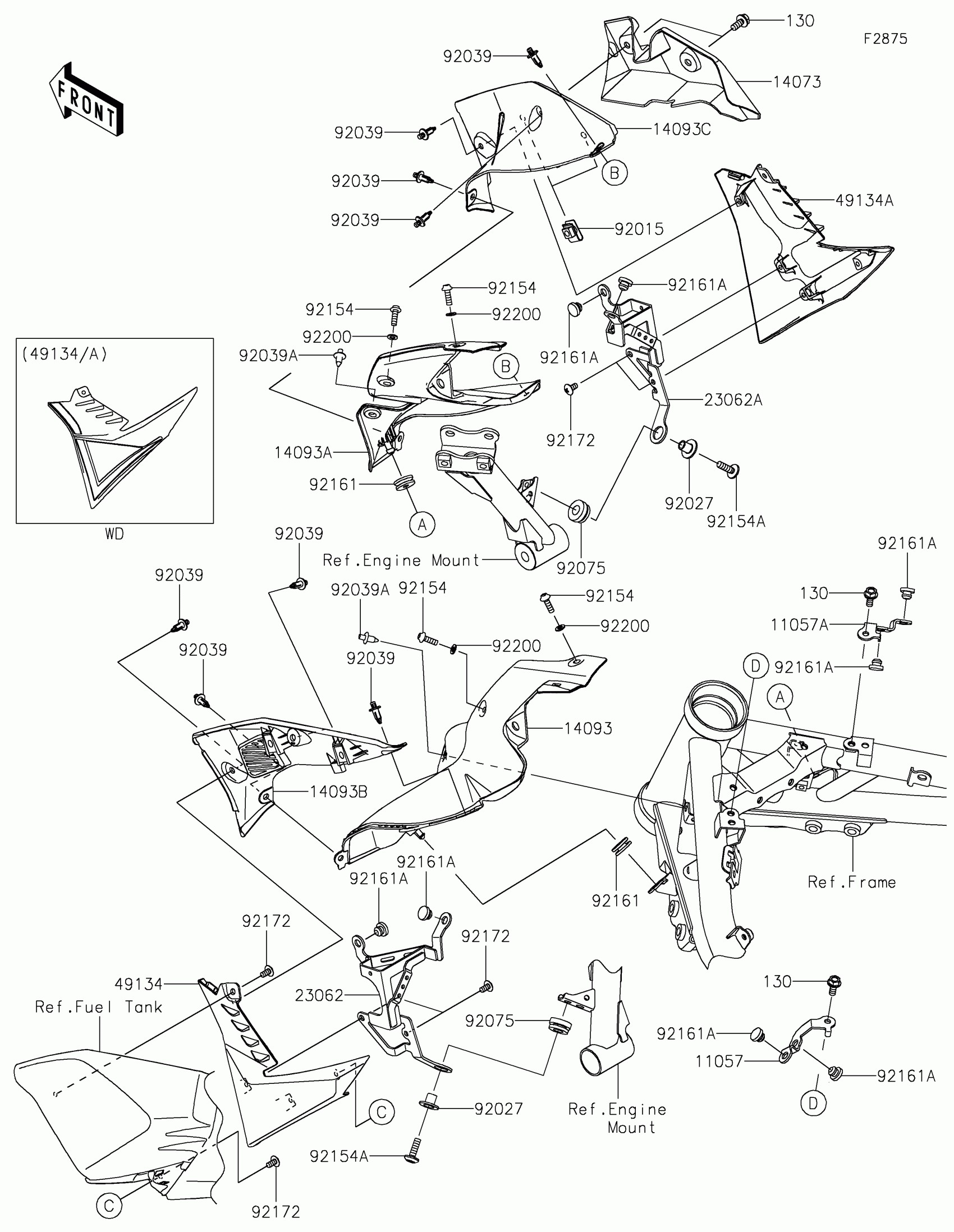

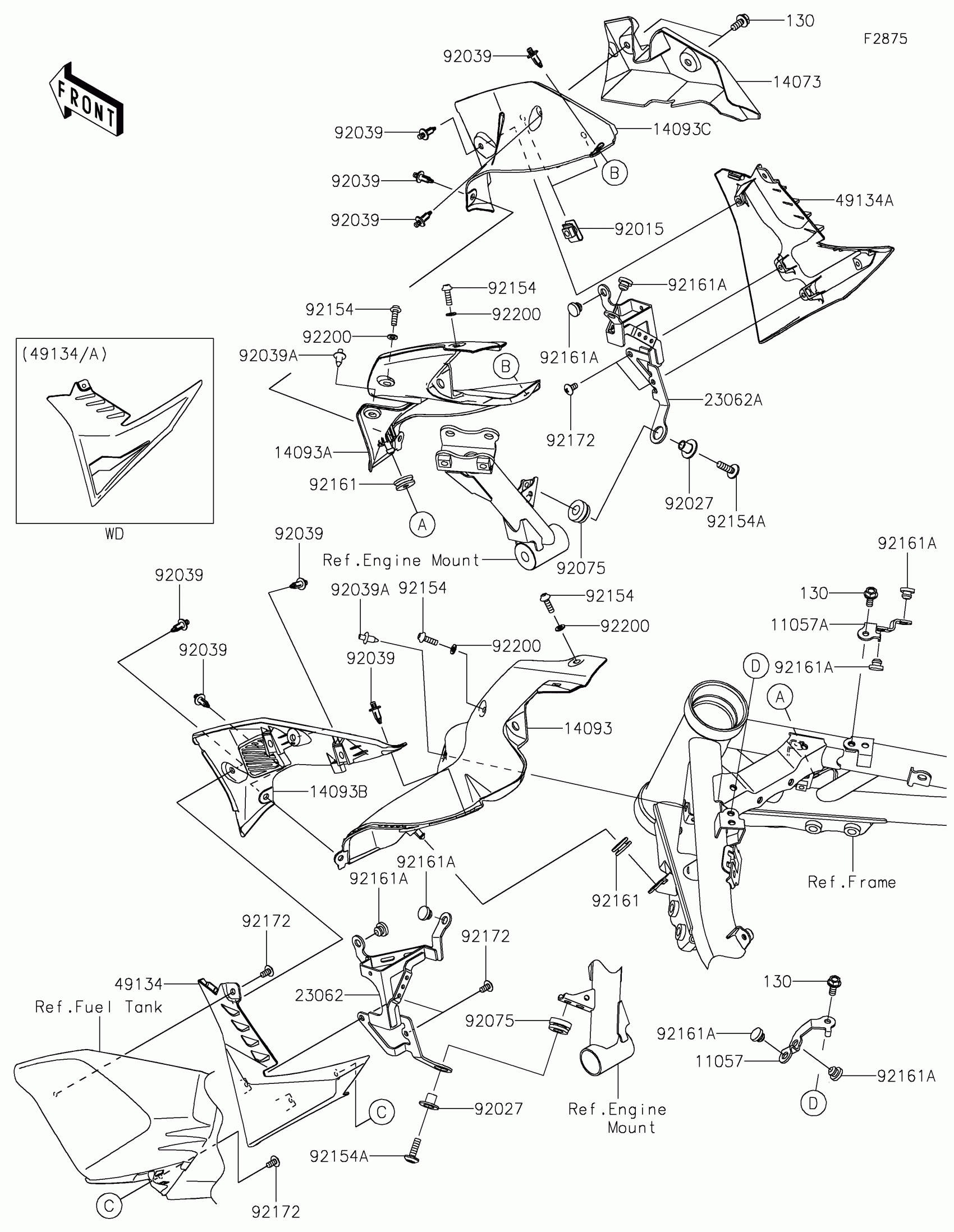

Kawasaki Z900 SE Shroud Diagram

BRACKET,SHROUD,RR,LH

BRACKET,SHROUD,RR,RH

DUCT,INNER,GUIDE,RH

COVER,SHROUD,INNER,RR,LH

COVER,SHROUD,INNER,RR,RH

COVER,SHROUD,INNER,FR,LH

COVER,SHROUD,INNER,FR,RH

BRACKET-COMP,SHROUD,FR,LH

BRACKET-COMP,SHROUD,FR,RH

SHROUD,LH,M.S.BLACK

SHROUD,RH,M.S.BLACK

NUT,6MM

COLLAR,FLANGED,L=12.1,BLACK

RIVET

RIVET

DAMPER

BOLT,SOCKET,5X16

BOLT,SOCKET,6X20

DAMPER

DAMPER

SCREW,TAPPING,5X10

WASHER,5.2X10X1.0

BOLT-FLANGED,6X14
