Description

Price

32046

BRACKET-SEAT,FR LOCK

32046-0401

$10.00

32046A

BRACKET-SEAT,FR

32046-0450

$47.49

53003

LEATHER,FR SEAT,BLACK

53003-0432-MA

$142.55

53003A

LEATHER,RR SEAT,BLACK

53003-0433-MA

$102.27

53003B

LEATHER,FR SEAT,BLACK

53003-0495-MA

$154.04

53066

SEAT-ASSY,FR,HIGH,BLACK

53066-0655-MA

$345.62

53066A

SEAT-ASSY,FR,LOW,BLACK

53066-0657-MA

$319.40

53066B

SEAT-ASSY,RR,BLACK+BLK

53066-0668-12Y

$345.62

92071

GROMMET

92071-0038

$3.87

92075

DAMPER

92075-277

$2.84

92152

COLLAR

92152-2616

$3.04

92152A

COLLAR,L=4.6

92152-2694

$5.00

92154

BOLT,FLANGED,6X20

92154-0776

$2.32

92154A

BOLT-FLANGED,6X14

92154-4292

$4.13

92161

DAMPER,20X90X15

92161-1867

$5.88

92161A

DAMPER,12X28X21

92161-1913

$4.41

92161B

DAMPER,14X30X22

92161-1969

$7.34

92161C

DAMPER,14X30X14.5

92161-1970

$7.43

92161D

DAMPER

92161-2250

$1.37

92161E

DAMPER

92161-2308

$1.83

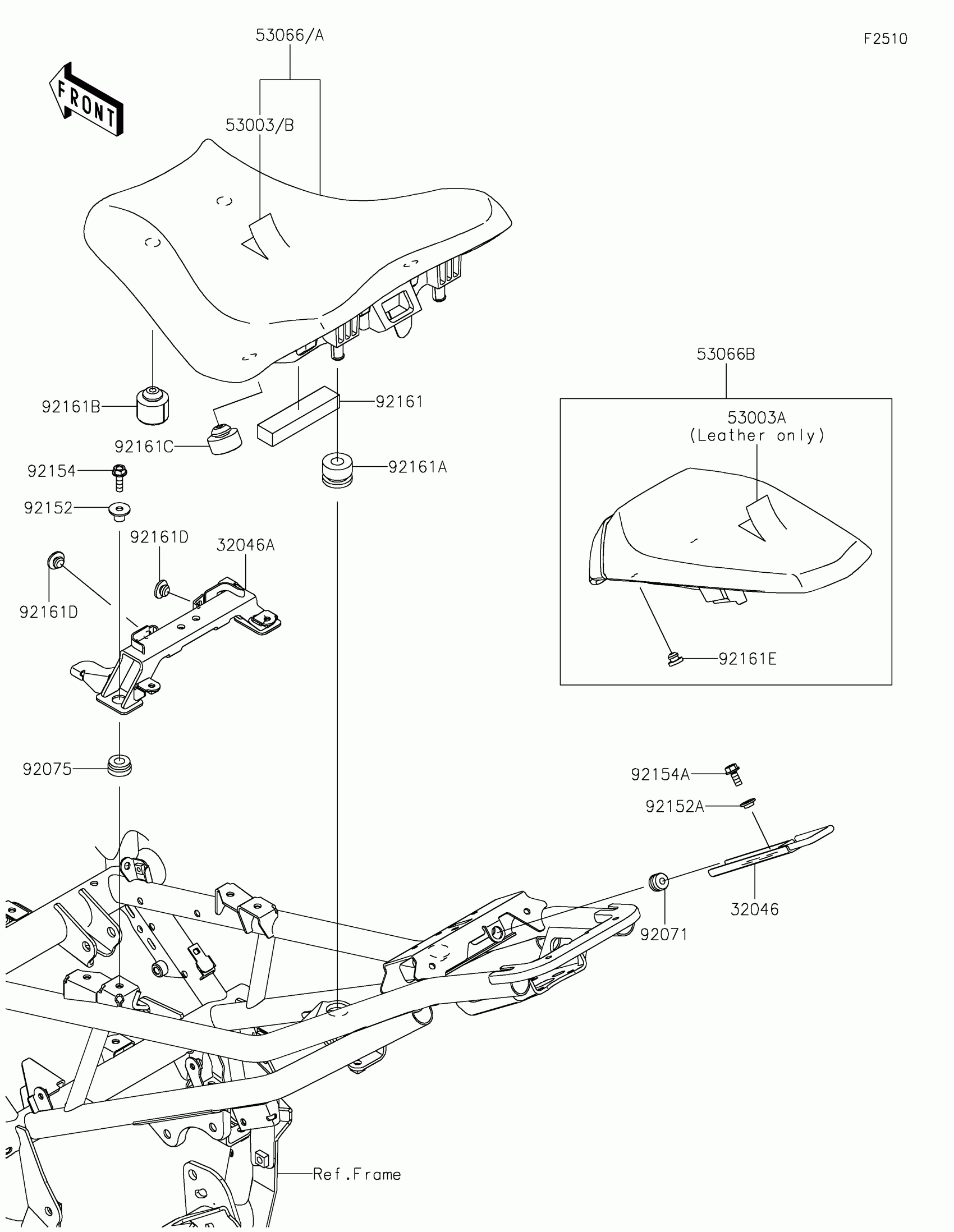

Kawasaki Z900 SE Seat Diagram

BRACKET-SEAT,FR LOCK

BRACKET-SEAT,FR

LEATHER,FR SEAT,BLACK

LEATHER,RR SEAT,BLACK

LEATHER,FR SEAT,BLACK

SEAT-ASSY,FR,HIGH,BLACK

SEAT-ASSY,FR,LOW,BLACK

SEAT-ASSY,RR,BLACK+BLK

GROMMET

DAMPER

COLLAR

COLLAR,L=4.6

BOLT,FLANGED,6X20

BOLT-FLANGED,6X14

DAMPER,20X90X15

DAMPER,12X28X21

DAMPER,14X30X22

DAMPER,14X30X14.5

DAMPER

DAMPER
