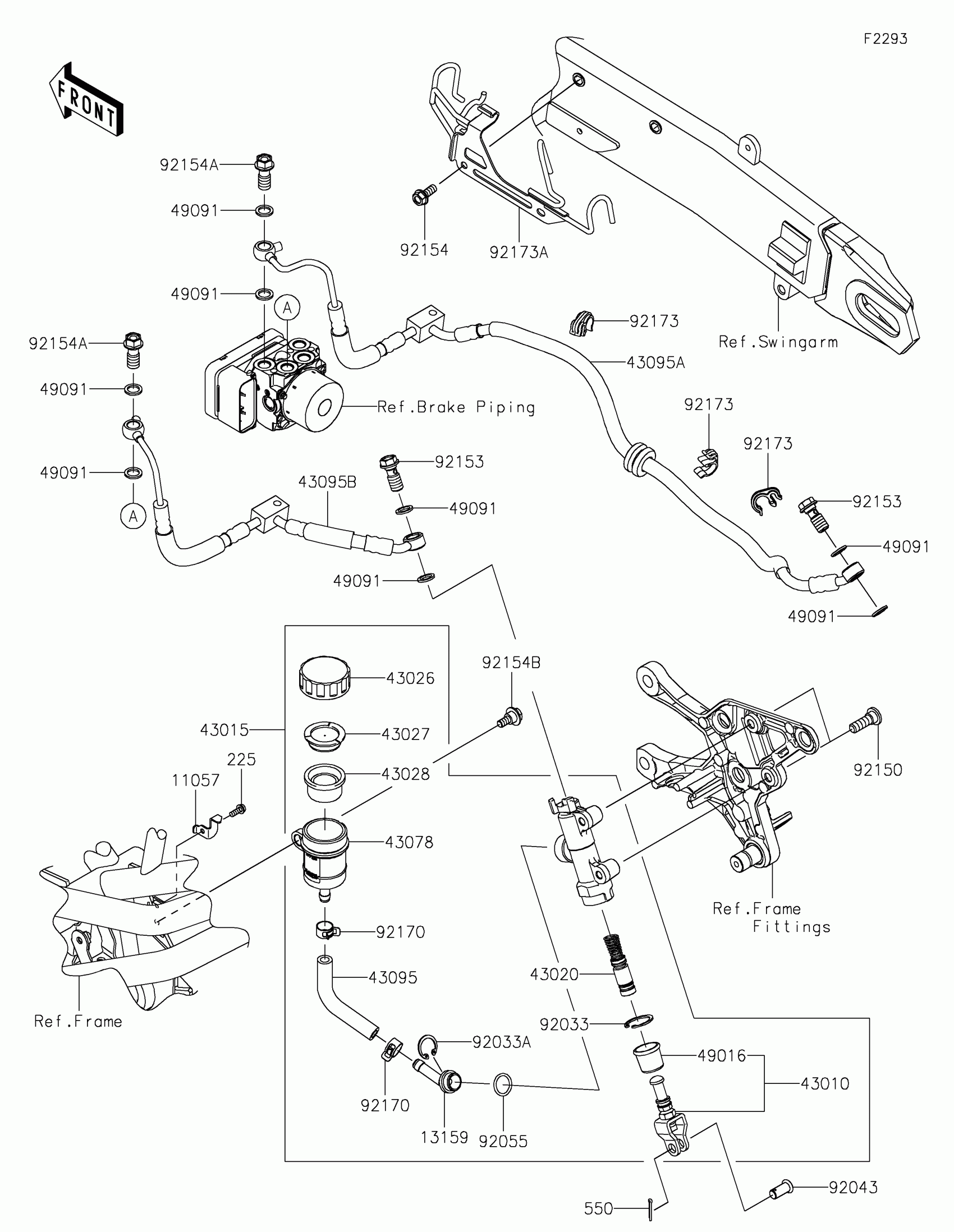

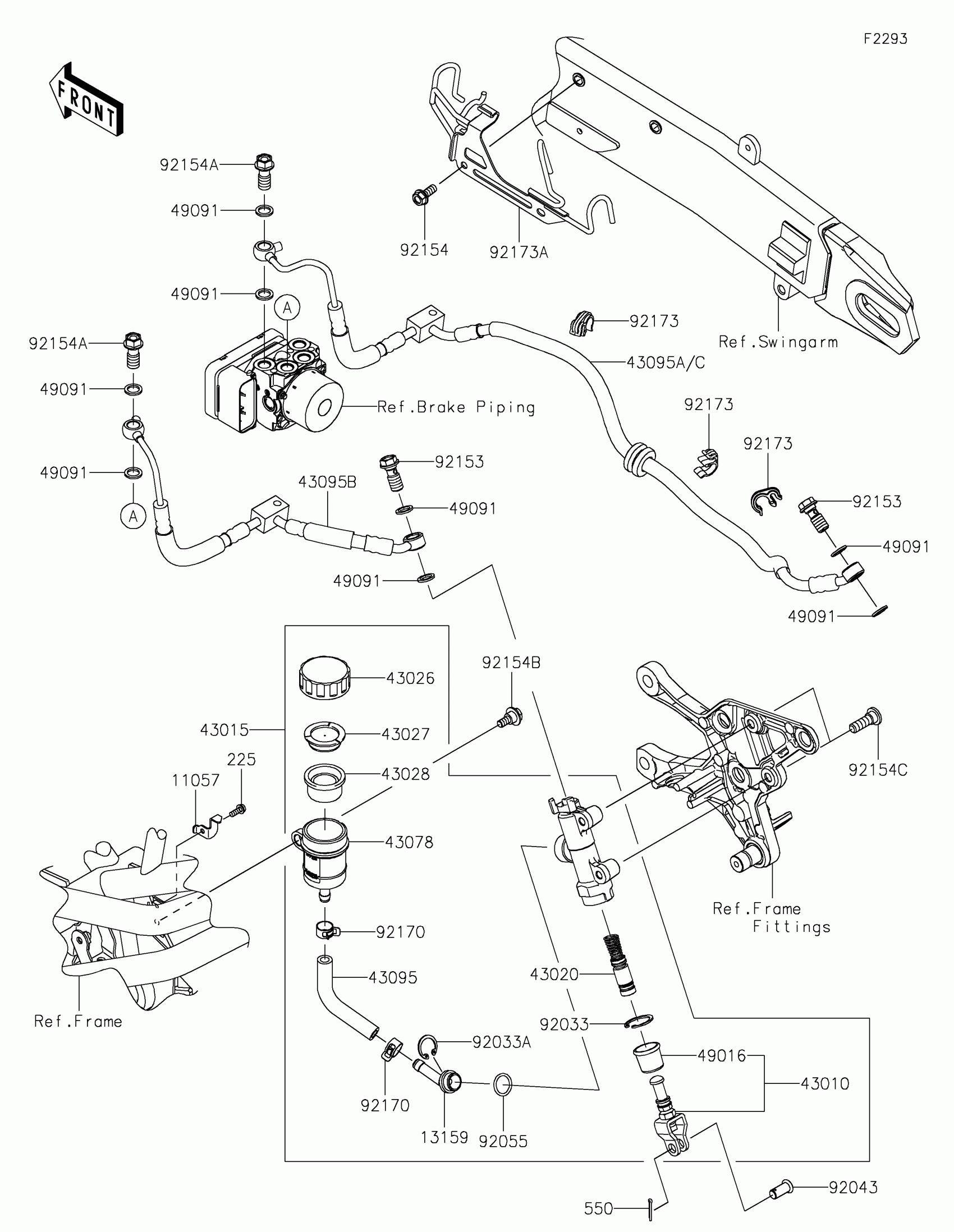

Kawasaki Z900 SE Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET

11057-0258

$4.31

13159

CONNECTOR

13159-0008

$10.59

43010

ROD-ASSY-BRAKE

43010-0020

$29.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0650

$419.59

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR M/CYL.

43095-1432

$9.42

43095A

HOSE-BRAKE,RR CALIPER-ABS UNIT

43095-1677

$324.89

43095B

HOSE-BRAKE,RR M/C-ABS UNIT

43095-1678

$310.07

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$12.73

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0904

$3.51

92055

RING-O,14.8X2.4

92055-0741

$2.82

92150

BOLT,SOCKET,8X25

92150-1837

$3.82

92153

BOLT,OIL,L=23

92153-0627

$4.15

92154

BOLT,FLANGED,6X16

92154-0899

$1.66

92154A

BOLT,BANJO,10X22

92154-1138

$7.25

92154B

BOLT,FLANGED,6X16

92154-2836

$2.59

92170

CLAMP,HOSE

92170-1091

$3.82

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27

92173A

CLAMP,HOSE&SENSOR LINE

92173-2115

$19.58

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.04

550

PIN-COTTER,2.0X15

550AA2015

$0.90
