2022 Kawasaki Z900 Se Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2022 Kawasaki Z900 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

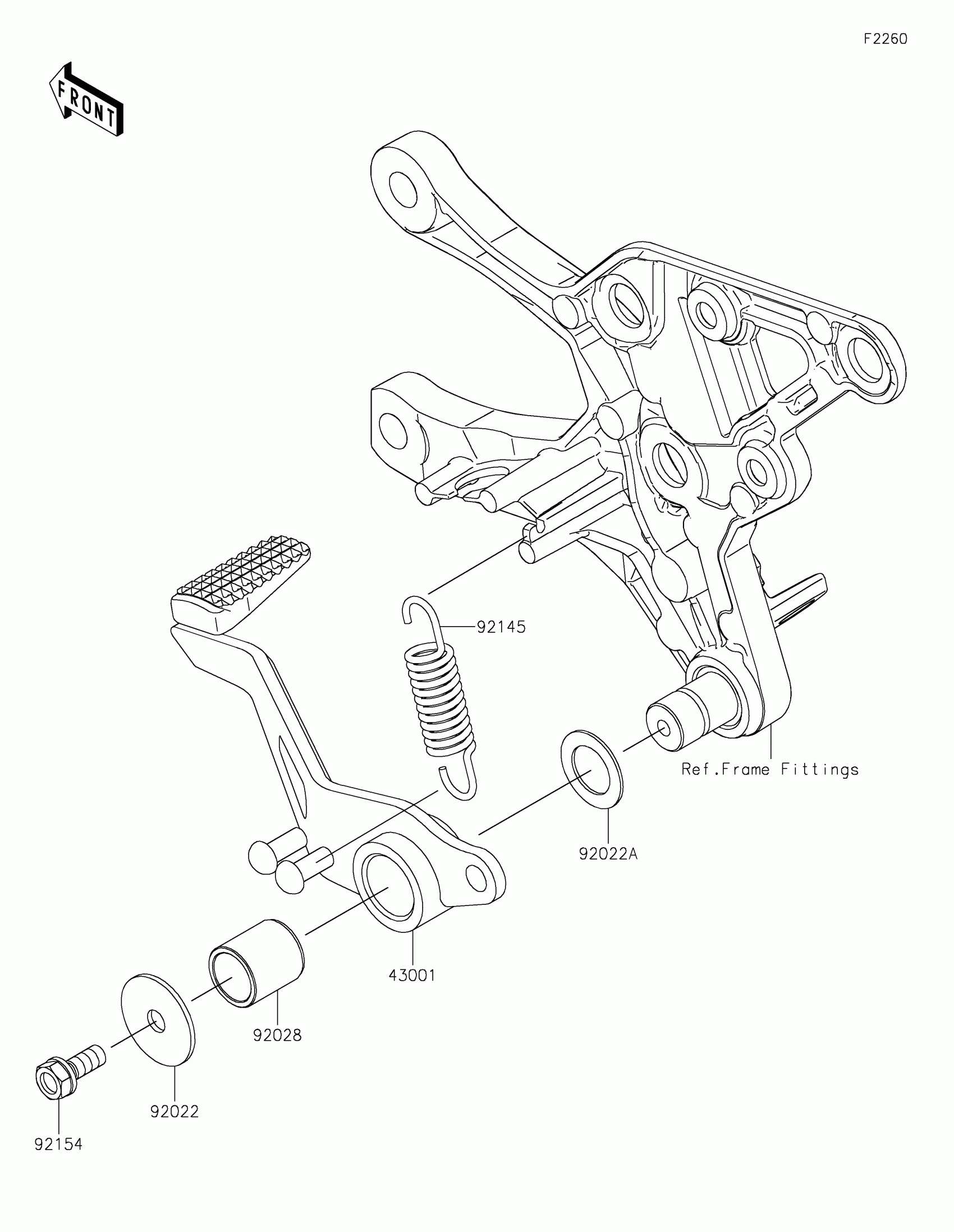

2022 Kawasaki Z900 Se Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-0749

1
Out of stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92028

BUSHING,BRAKE PEDAL

92028-1282

1
Out of stock

92145

SPRING,BRAKE PEDAL

92145-0893

1
Out of stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock

180

BOLT-UPSET-WS,6X16

180BA0616

1
Out of stock
